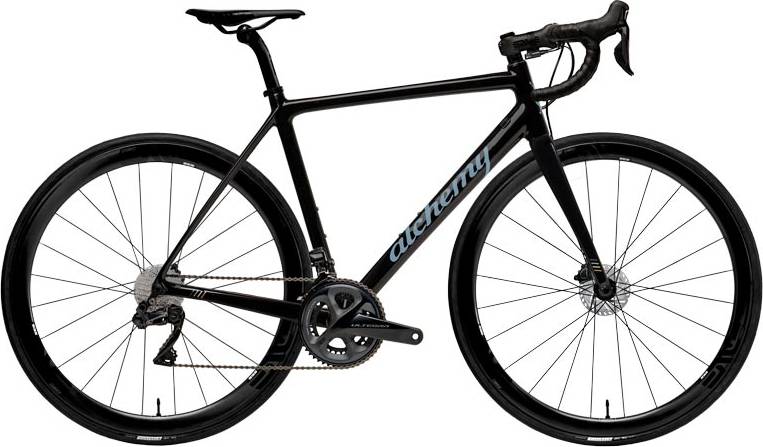

Alchemy Atlas — Force Etap AXS Road 2019
2019 Road
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP, Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Force Red Etap AXS 12 Speed
Front Derailleur
SRAM Force Etap AXS 12 Speed
Shift Levers
SRAM Force Etap AXS 12 Speed
Cassette
SRAM Force 12 Speed 10-33
Crank
SRAM Force AXS 46/33 172.5
Bottom Bracket
SRAM DUB PF86 41mm
Chain
SRAM Force 12 Speed
Wheels
Rims
ENVE 3.4 SES Disc
Tires
Continental Grand Prix 5000 S II Tire 700 x 28 Black
Brakes
Brakes
SRAM Force AXS eTap Disc
Disk Rotors
SRAM CenterLine 140mm
Cockpit
Stem
ENVE Road
Handlebar
ENVE Road Compact
Headset
Cane Creek 40-Series IS42/IS52
Seat
Saddle
Fizik Antares R7
Seatpost
ENVE Road
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 32 mm | 35 mm | 38 mm | 39 mm | 36 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 552 mm | 574 mm | 594 mm | 614 mm |
| Reach | 372 mm | 385 mm | 392 mm | 398 mm | 413 mm |
| Top Tube Length | 524 mm | 545 mm | 562 mm | 577 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 470 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 967 mm | 977 mm | 992 mm | 1002 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
About this model
Atlas — Force Etap AXS Road completes the Alchemy Atlas model. There are 59 bikes that carry this model name. You can easily view all of the Alchemy Atlas bikes models from 2019, here.
Model range prices
Alchemy Atlas — Ultegra Mechanical Disc 2019 is the most affordable bike of this model and has a price of 6499$. On the other hand, Alchemy Atlas — Dura Ace Di2 Disc ENVE 2019, is the most expensive and costs 10499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8999$. Doing a quick comparison, we notice that Atlas — Force Etap AXS Road price is 168.63% higher than the average cost of a Race bike.
Atlas — Force Etap AXS Road components
Fork material
Atlas — Force Etap AXS Road has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Atlas — Force Etap AXS Road bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Atlas — Force Etap AXS Road has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Alchemy Atlas — Force Etap AXS Road bike has 5 sizes, in the range of 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
