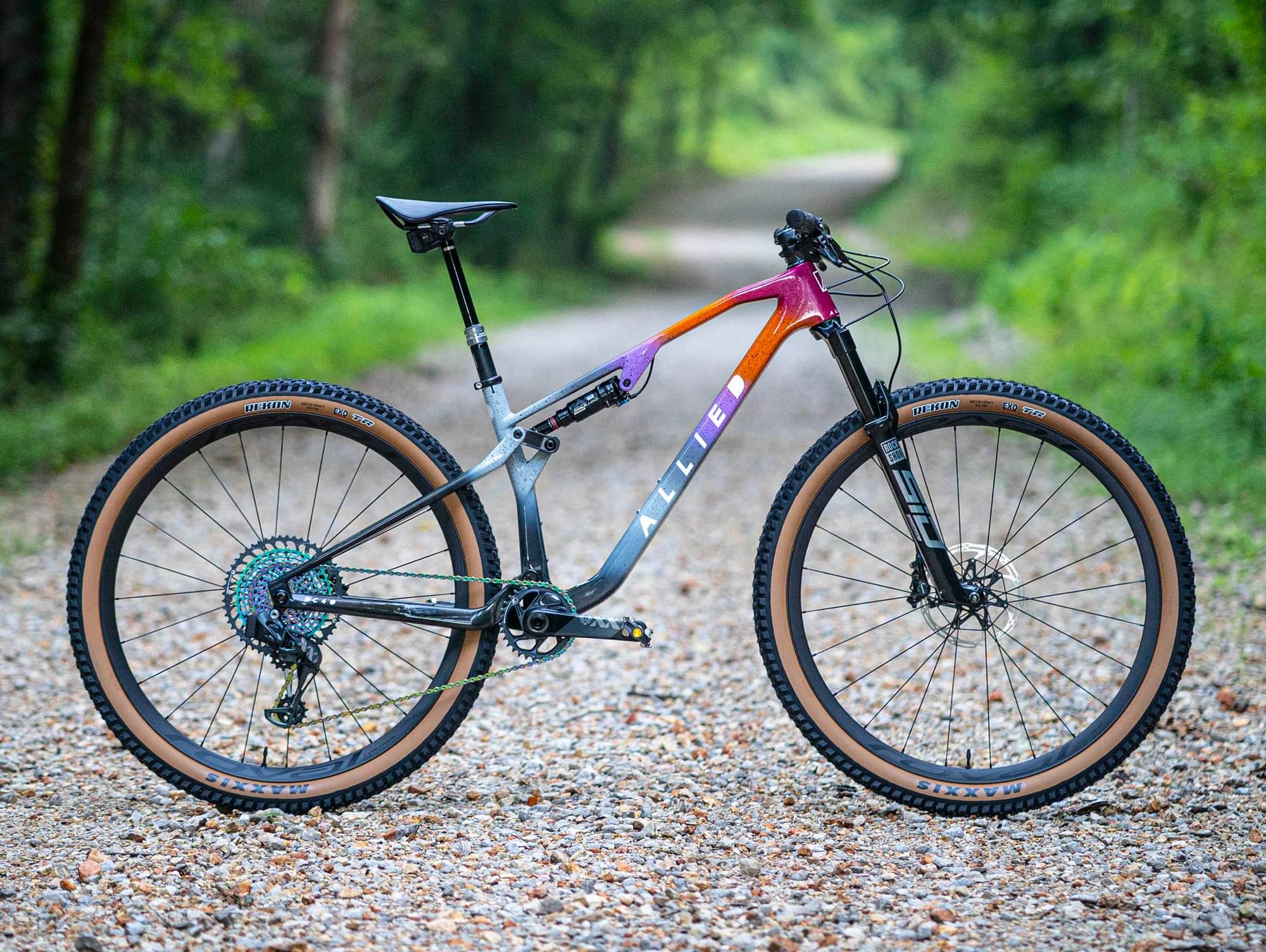

Allied BC40 Payson’s Limited Edition 2022
2022 Mountain
Estimate price |
14,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID Ultimate Charger Race Day RL Crown
Rear Shock
SID Luxe Ultimate RL
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle AXS Controller
Cassette
SRAM XG 1299 Eagle 10-52 Rainbow
Crank
SRAM XX1 Eagle AXS Boost
Bottom Bracket
SRAM Dub Threaded
Chain
SRAM XX1 Eagle Chain Rainbow 12SPD
Wheels
Rims
Roval Control SL 29 6BOLT XD
Tires
MAXXIS Rekon 29X2.40 WT EXO/TR/TW Tan Tire Set
Brakes
Brakes
SRAM Ultimate Level - 160mm rear / 180mm front
Cockpit
Stem
Truvativ Atmos 6K 50MM
Handlebar
Truvativ Atmos Carbon Flat Bar
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
RockShox Reverb AXS 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 593 mm | 604 mm | 617 mm | 628 mm |
| Reach | 415 mm | 440 mm | 470 mm | 496 mm |
| Top Tube Length | 564 mm | 591 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1169 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
BC40 Payson’s Limited Edition belongs to the Allied Bc40 model. Allied released 28 bikes variations of this model so far. Take a sneak peek at all Allied Bc40 bikes models from 2022, by clicking here.
Model range prices
Allied BC40 XT M8100 2022 is the most affordable bike of this model and has a price of 7225$. On the other hand, Allied BC40 Payson’s Limited Edition BC40 2022, is the most expensive and costs 14000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Allied released this model in 2022, its price was 14000$. Doing a quick comparison, we notice that BC40 Payson’s Limited Edition price is 406.88% more expensive than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox SID Ultimate model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the SID Luxe Ultimate RL model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the BC40 Payson’s Limited Edition model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Allied BC40 Payson’s Limited Edition has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Allied model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
