Allied BC40 XO Eagle AXS Transmission 2023
2023 Mountain
Estimate price |
10,645$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM XO Eagle Transmission
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM XS 1295 Eagle Transmission 10-52
Crank
SRAM XO Eagle Transmission
Bottom Bracket
SRAM Dub 73 BSA
Chain
SRAM XO Eagle Transmission Flattop
Wheels
Rims
Industry Nine 1/1 Trails S Carbon
Tires
MAXXIS Rekon 29x2.40 WT EXO/TR Tan Wall
Brakes
Brakes
SRAM Level Silver Stealth 4-Piston 180 Front / 160 Rear
Cockpit
Stem
Industry Nine A318
Handlebar
FSA SL-K MTB Carbon
Seat
Saddle
Selle Italia Novus Boost Superflow
Seatpost
RockShox Reverb AXS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 593 mm | 604 mm | 617 mm | 628 mm |
| Reach | 415 mm | 440 mm | 470 mm | 496 mm |
| Top Tube Length | 564 mm | 591 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1169 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
BC40 XO Eagle AXS Transmission is part of the Allied Bc40 model. Allied launched 28 bikes of this model so far. Take a sneak peek at all Allied Bc40 bikes models from 2023, by clicking here.
Model range prices
Allied BC40 Shimano XT M8100 2023 is the most affordable bike of this model and has a price of 7580$. On the other hand, Allied BC40 XX SL Eagle AXS Transmission 2023, is the most expensive and costs 12685$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Allied BC40 XO Eagle AXS Transmission price was 10645$. Doing a quick comparison, we notice that BC40 XO Eagle AXS Transmission price is 285.41% higher than the average cost of a Trail bike.
BC40 XO Eagle AXS Transmission components

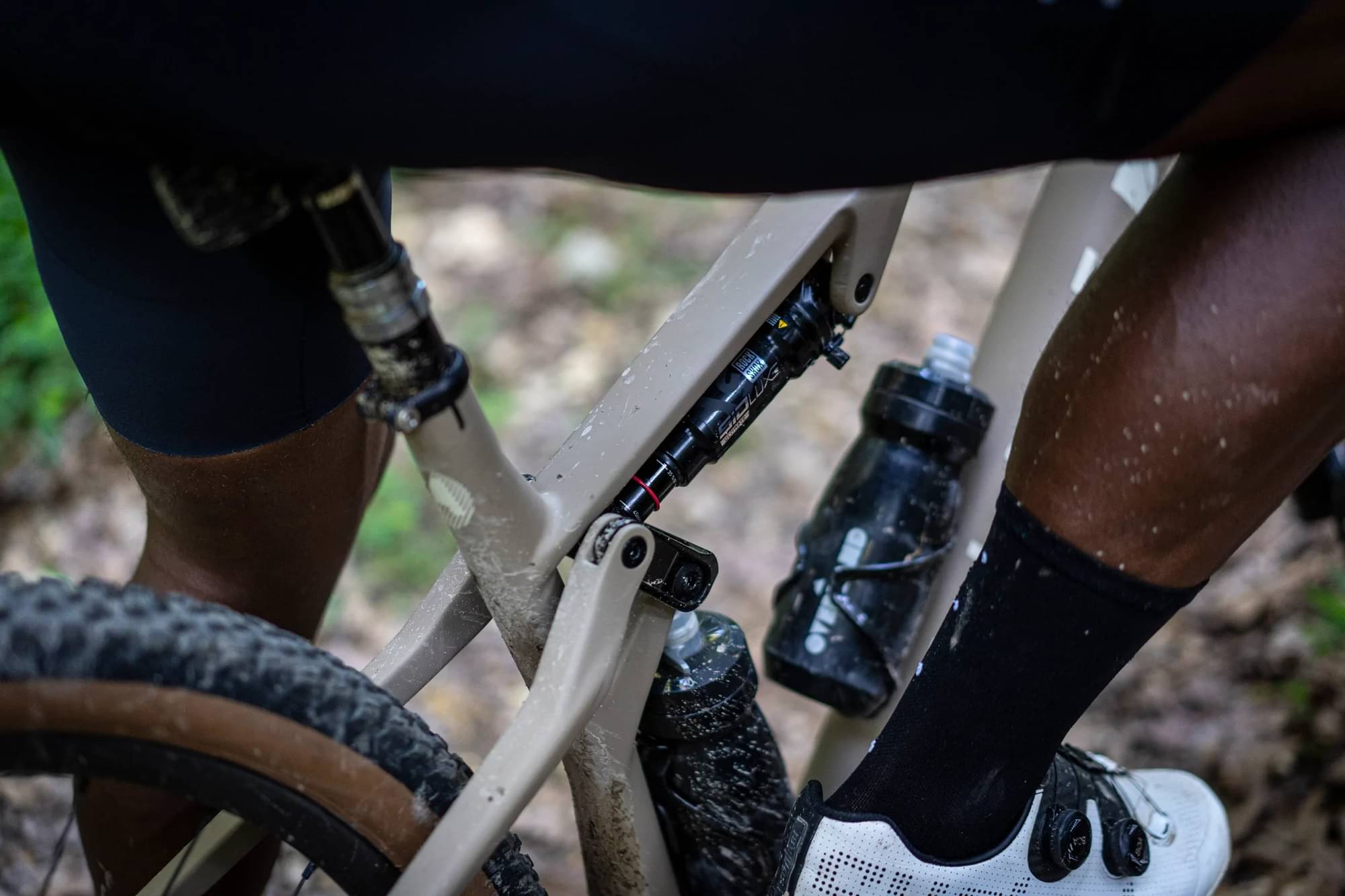

Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Allied BC40 XO Eagle AXS Transmission 2023, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The BC40 XO Eagle AXS Transmission has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BC40 XO Eagle AXS Transmission comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Allied model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
