Allied BC40 XX1 Eagle AXS 2022
2022 Mountain
Estimate price |
11,770$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Front Derailleur
N/A
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XG-1299 Eagle 10-52
Crank
SRAM XX1 Eagle Dub SL
Bottom Bracket
SRAM DUB
Chain
SRAM XX1 Eagle
Wheels
Rims
Industry Nine Ultralite 280 Carbon
Tires
MAXXIS Rekon 29x2.40 WT EXO/TR Tan Wall
Brakes
Brakes
SRAM Level Ultimate - 160mm rear / 180mm front
Cockpit
Stem
Industry Nine A31.8
Handlebar
FSA KFX Carbon
Seat
Saddle
Selle Italia Novus Boost Superflow
Seatpost
SRAM Reverb AXS 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 593 mm | 604 mm | 617 mm | 628 mm |
| Reach | 415 mm | 440 mm | 470 mm | 496 mm |
| Top Tube Length | 564 mm | 591 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1169 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
BC40 XX1 Eagle AXS is part of the Allied Bc40 model. Allied launched 28 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Allied BC40 XT M8100 2022 is the most affordable bike of this model and has a price of 7225$. On the other hand, Allied BC40 Payson’s Limited Edition BC40 2022, is the most expensive and costs 14000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11770$. If we compare this with the average Trail bike cost we notice that the price is 326.14% higher.
Overview of components

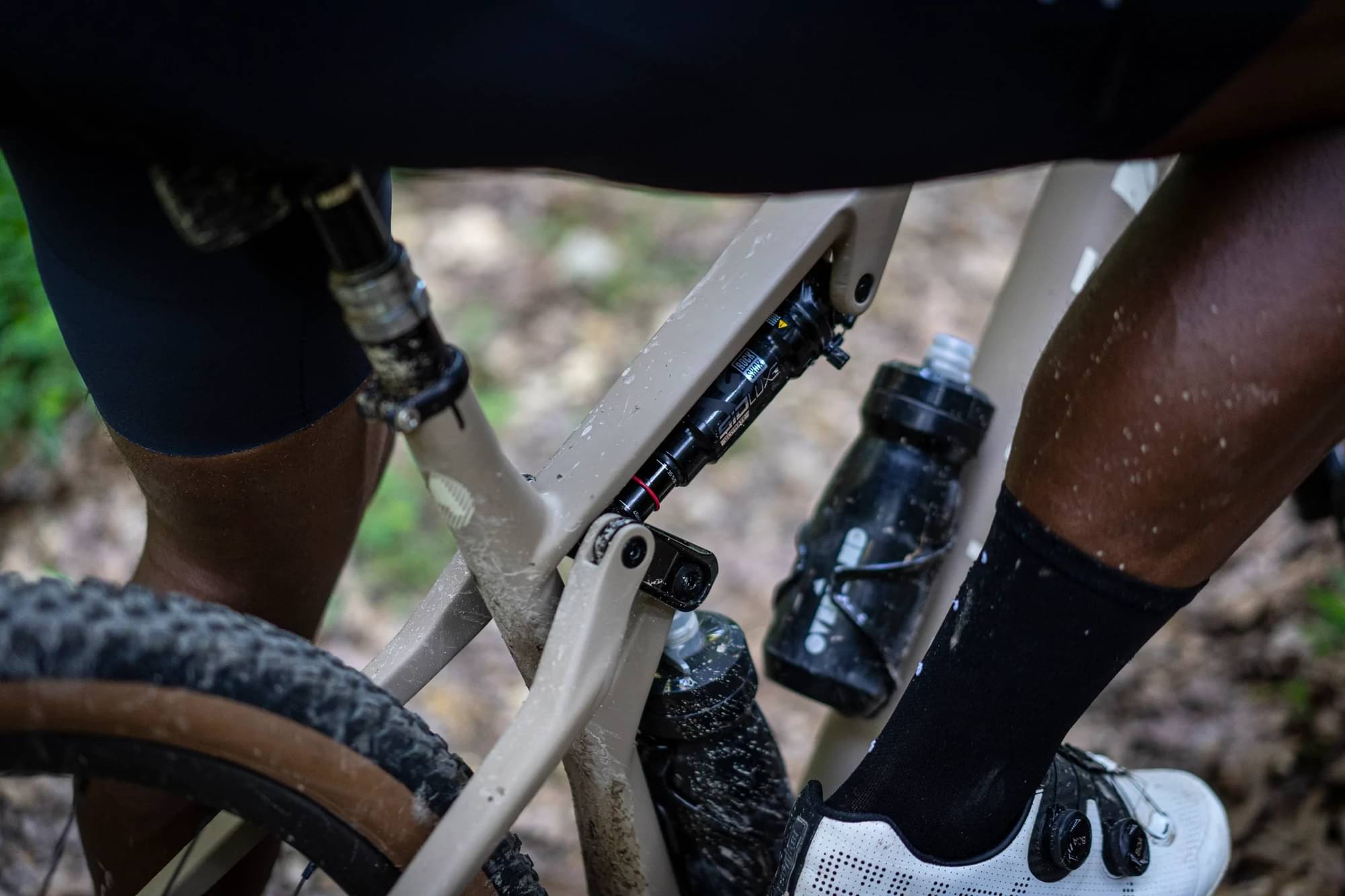

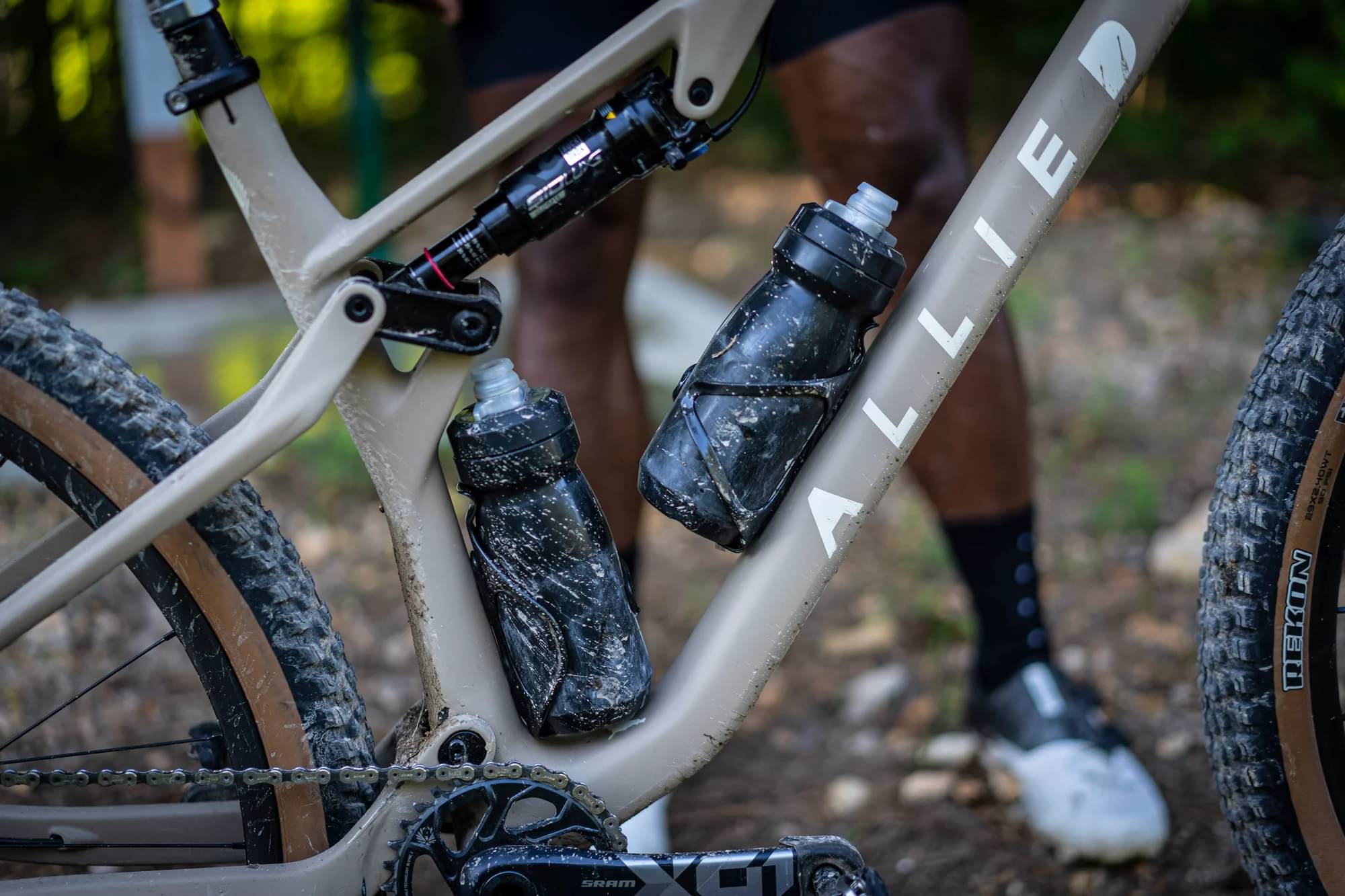

Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Allied BC40 XX1 Eagle AXS 2022, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Allied BC40 XX1 Eagle AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the BC40 XX1 Eagle AXS. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
