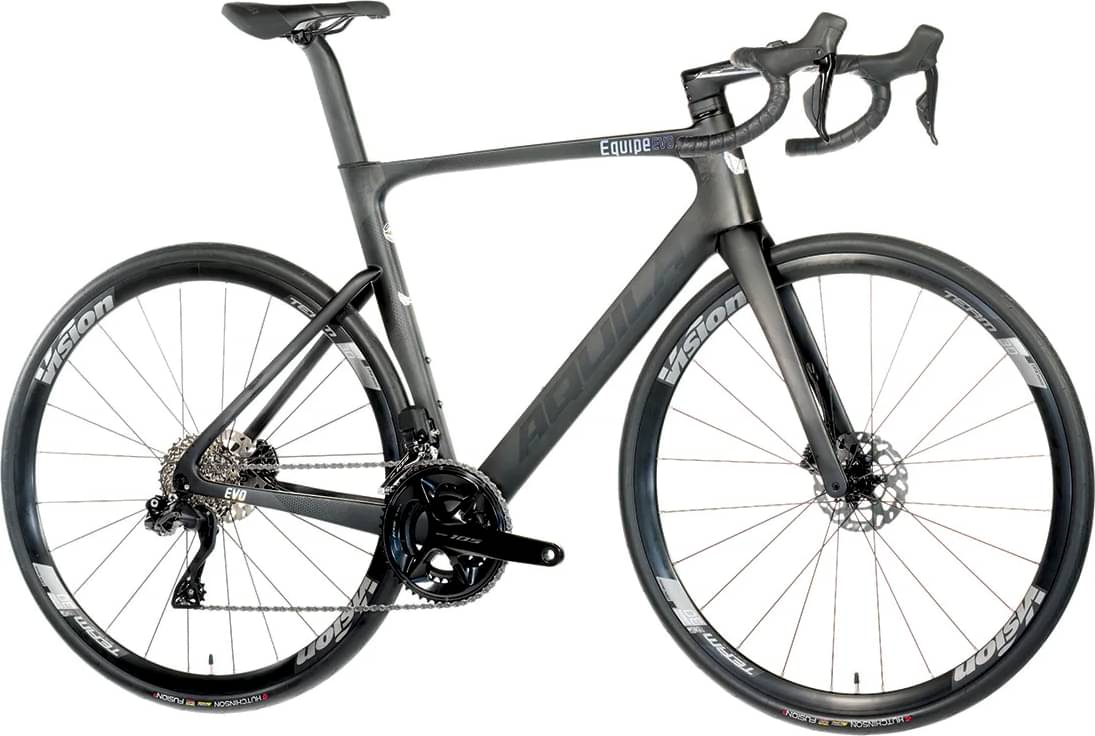

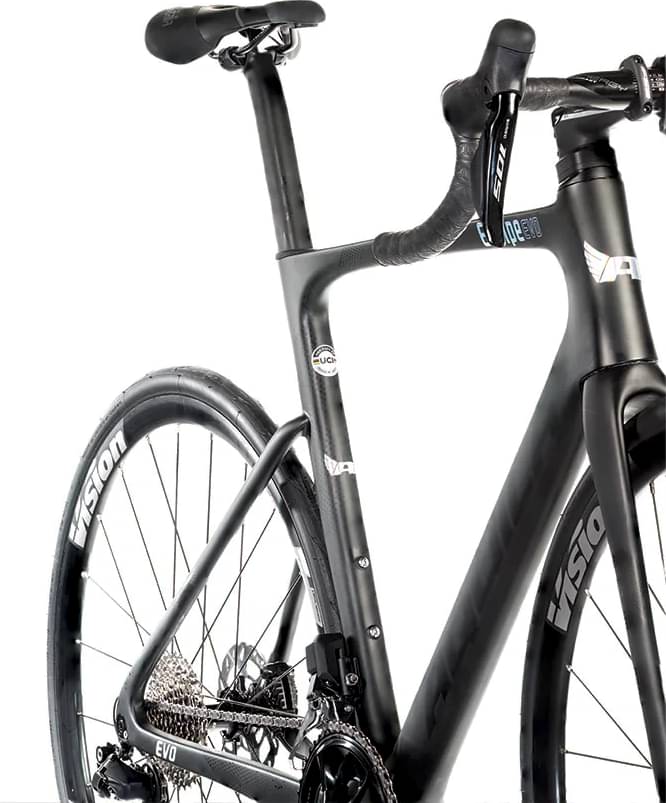

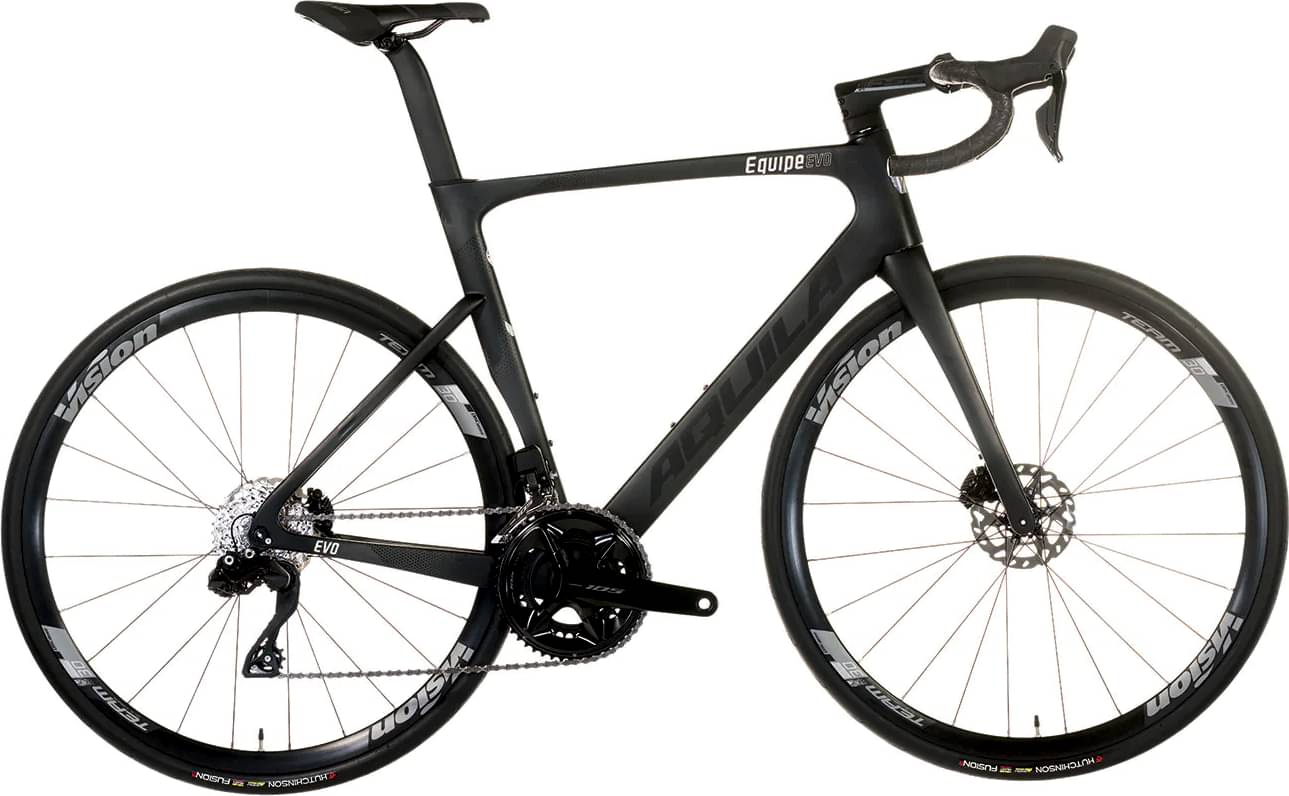

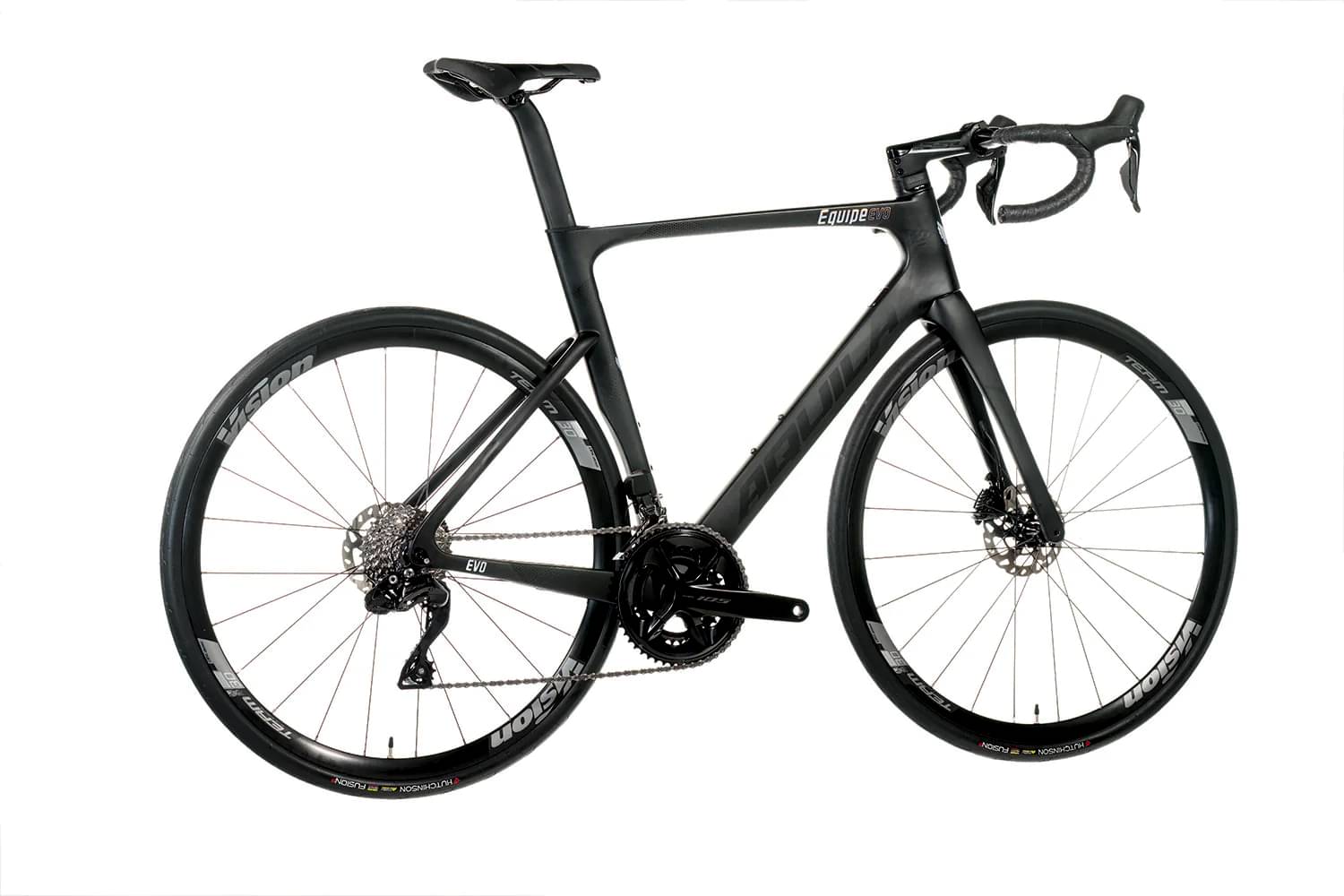

Aquila Equipe EVO – Shimano 105 R7170 2023
2023 Road
Estimate price |
3,574$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

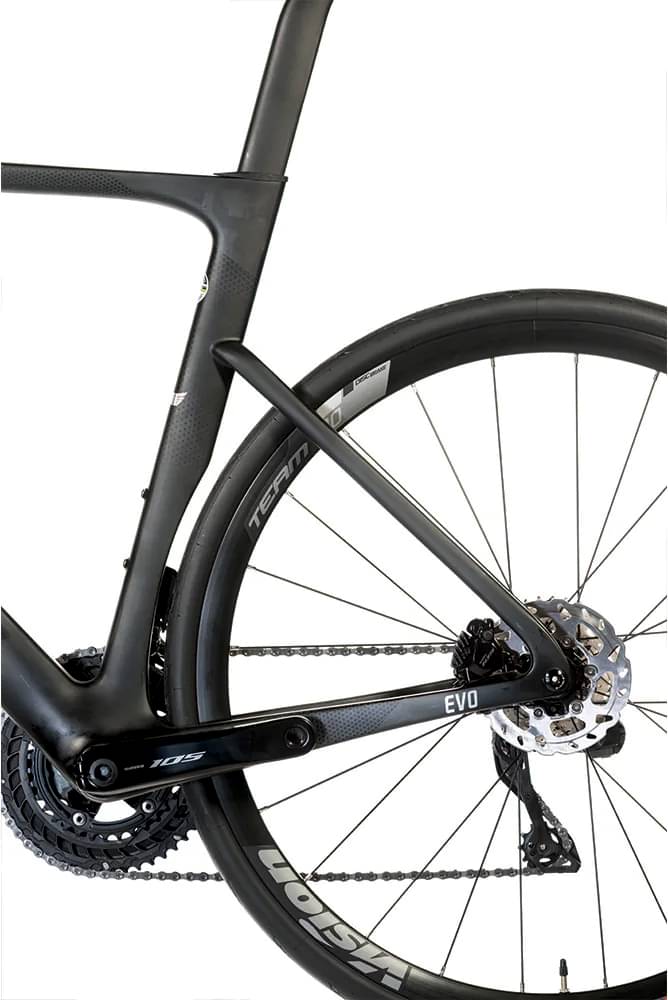

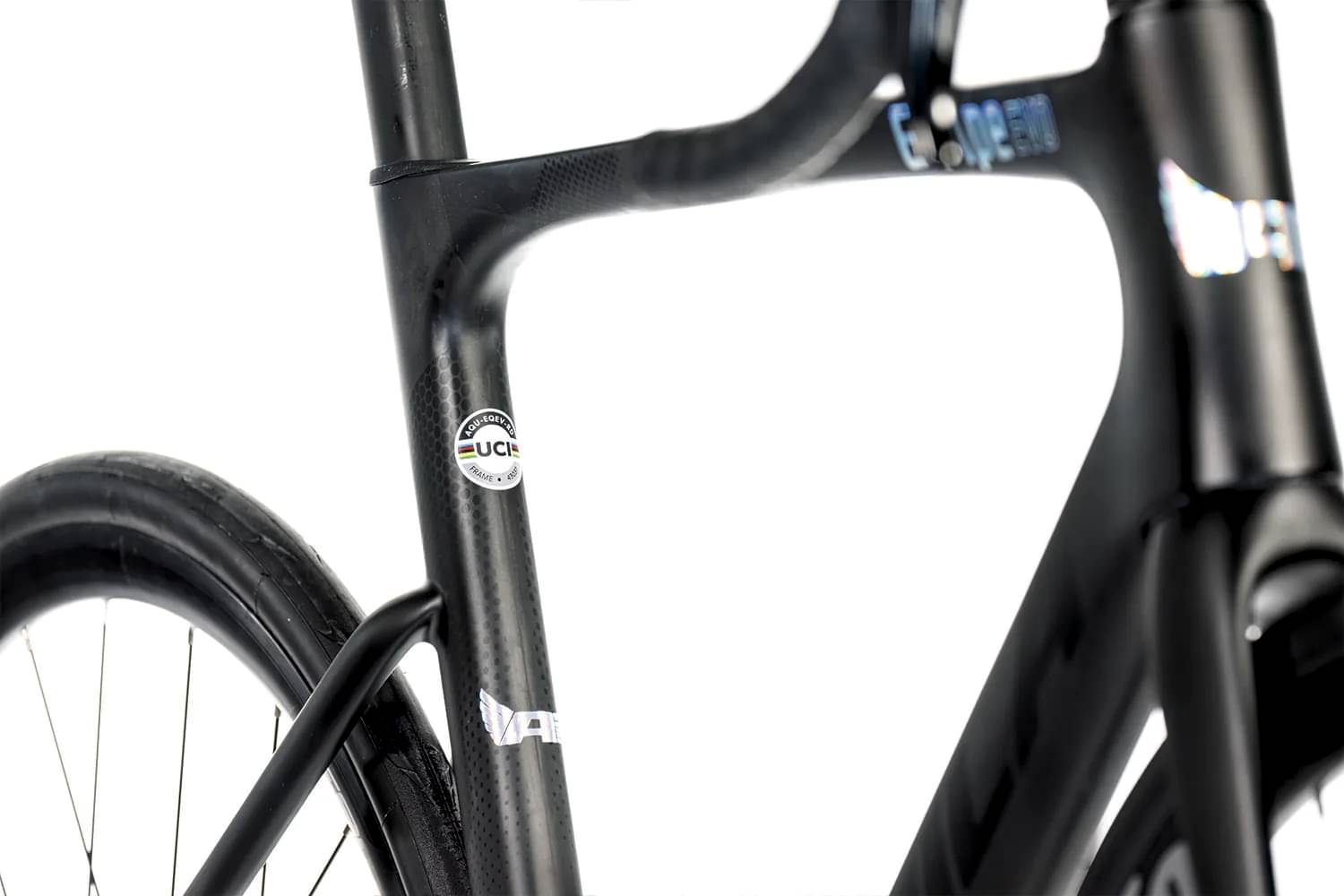

Frame
Frame
Aquila Equipe EVO, HS, Bar/Stem, Seat post

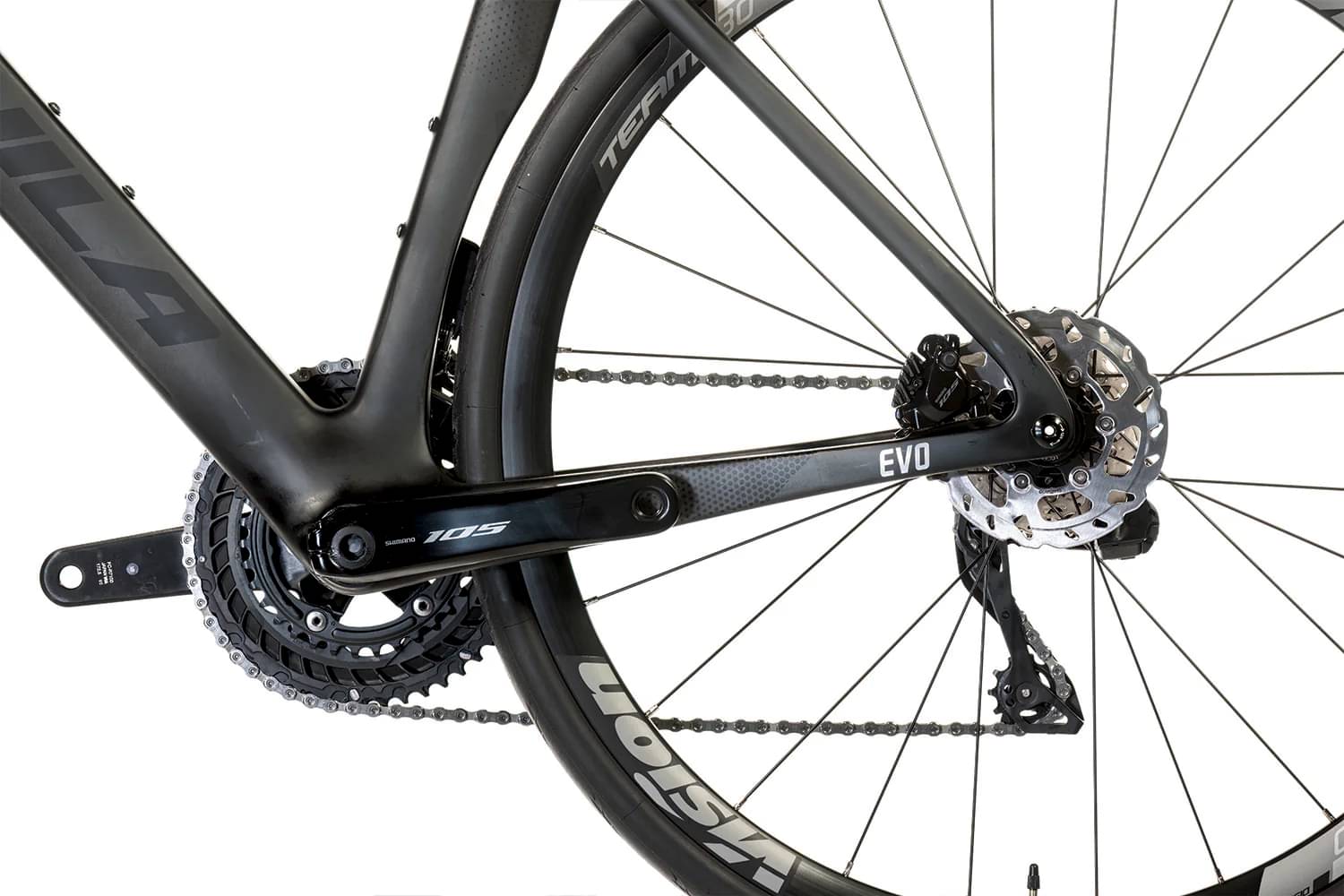

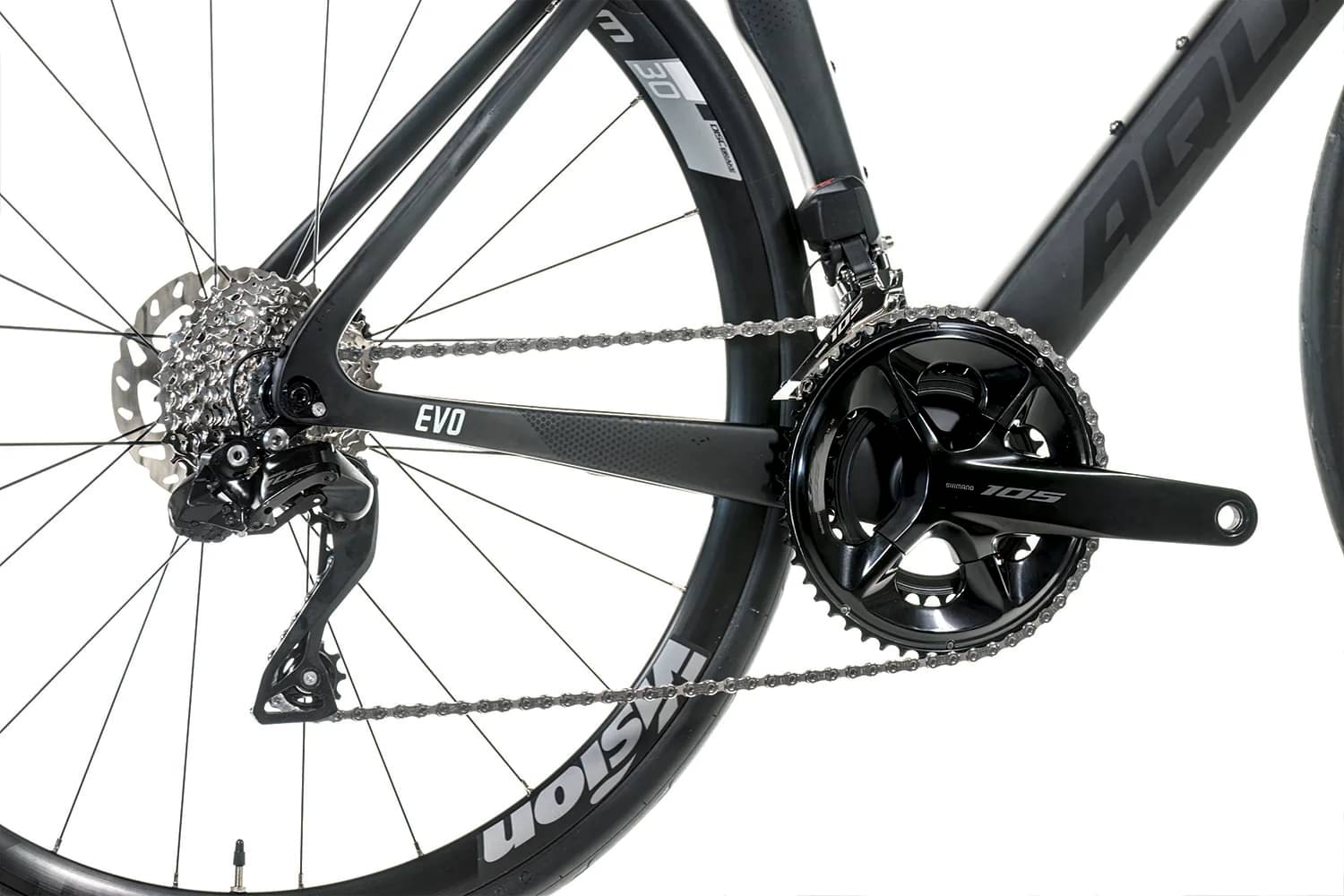

Drivetrain
Rear Derailleur
RDR7150F, 105 Di2
Front Derailleur
FDR7150F, 105 Di2
Shift Levers
STR7170, 105 Di2 Hydraulic W/BRR7170Calipers
Cassette
CSR7100, 105 12 Speed
Crank
FCR7100
Bottom Bracket
Shimano BB86
Chain
CNHG601
Wheels
Rims
Vision Team 30 Disc
Tires
Hutchinson Fusion 5 Galactik
Brakes
Brakes
Hydraulic Disc

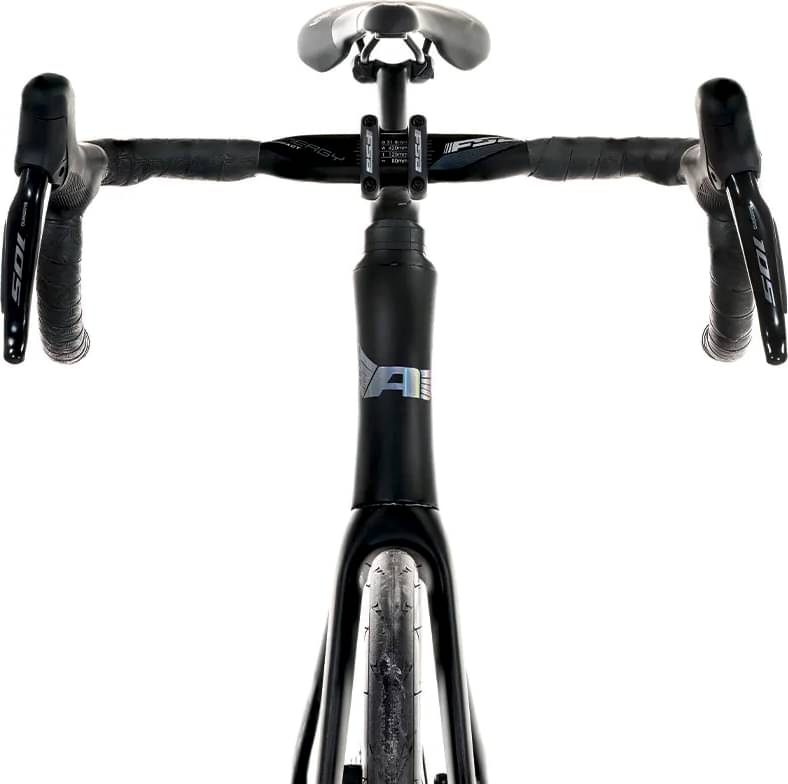

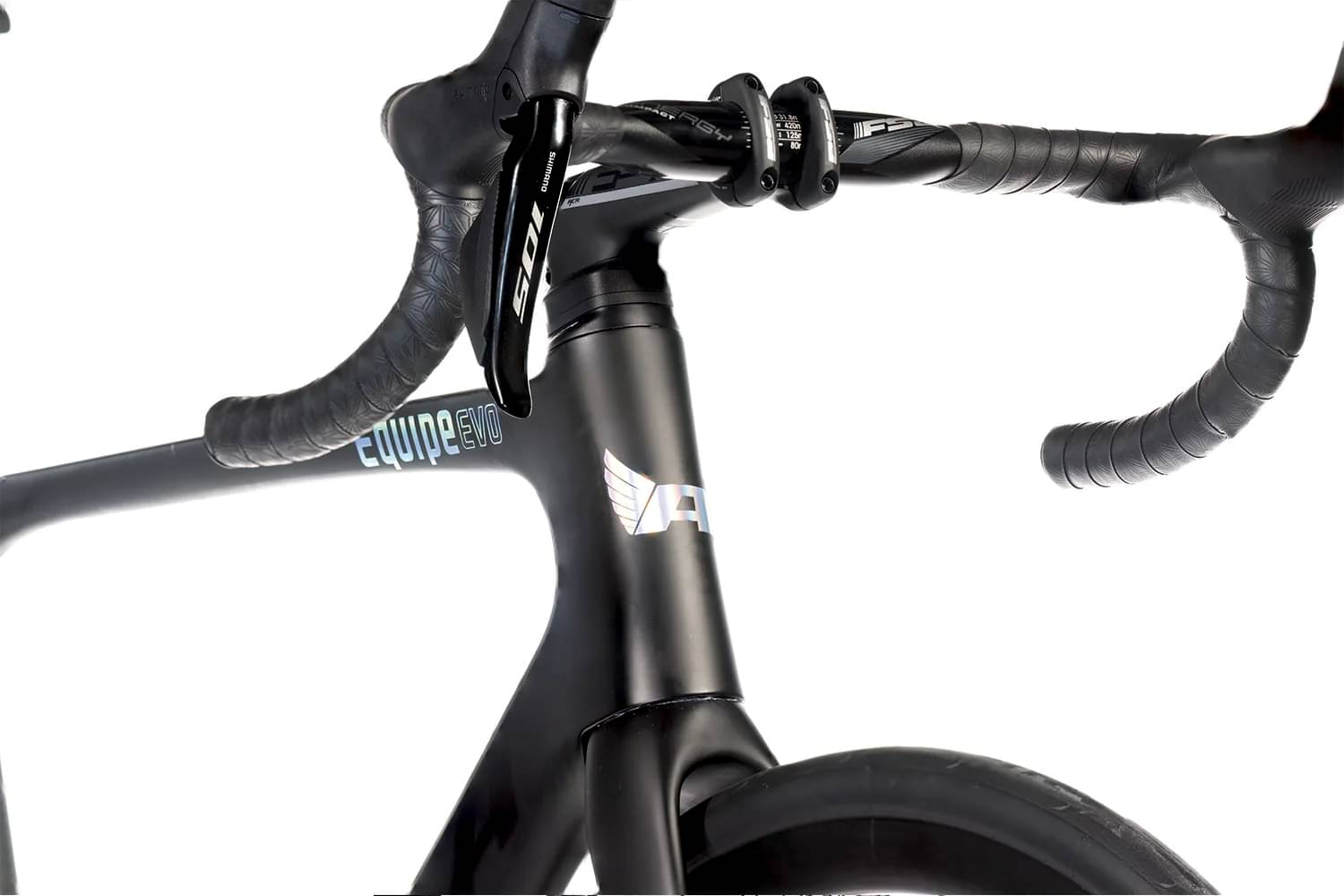

Cockpit
Stem
FSA ACR
Handlebar
FSA Energy ACR
Headset
FSA ACR
Seat
Saddle
Selle Italia Novus Boost
Seatpost
EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 572 mm | 573 mm | 573 mm | 575 mm | 581 mm | 592 mm |
| Rake | 45 mm | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 69 mm | 65 mm | 59 mm | 56 mm | 53 mm |
| Stack | 503 mm | 509 mm | 518 mm | 530 mm | 550 mm | 571 mm |
| Reach | 367 mm | 368 mm | 376 mm | 383 mm | 387 mm | 397 mm |
| Top Tube Length | 501 mm | 506 mm | 513 mm | 534 mm | 544 mm | 565 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 435 mm | 460 mm | 480 mm | 495 mm | 520 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 970 mm | 971 mm | 971 mm | 973 mm | 979 mm | 990 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Equipe EVO – Shimano 105 R7170 is part of the Aquila Equipe model. There are 42 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Aquila Equipe UNO 2023 is the most affordable bike of this model and has a price of 1247$. On the other hand, Aquila Equipe EVO R – Dura-ace Di2 R9270 Di2 2023, is the most expensive and costs 10148$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Aquila released this model in 2023, its price was 3614$. In conclusion, this bike price is 7.88% higher than the price of the average Race bike.
Overview of components

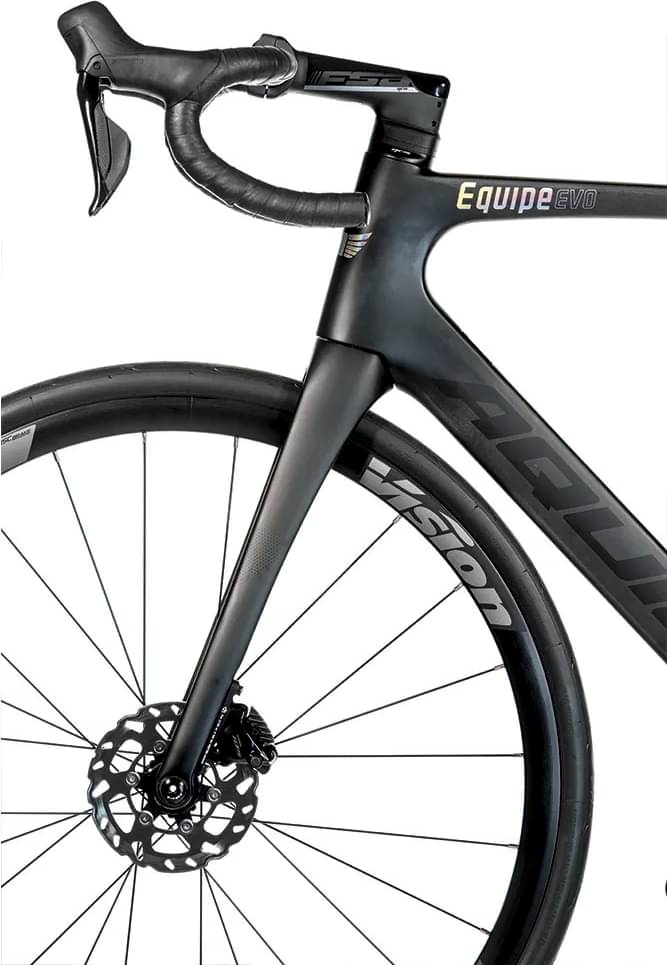

Fork material
Equipe EVO – Shimano 105 R7170 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Equipe EVO – Shimano 105 R7170 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Aquila Equipe EVO – Shimano 105 R7170 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
