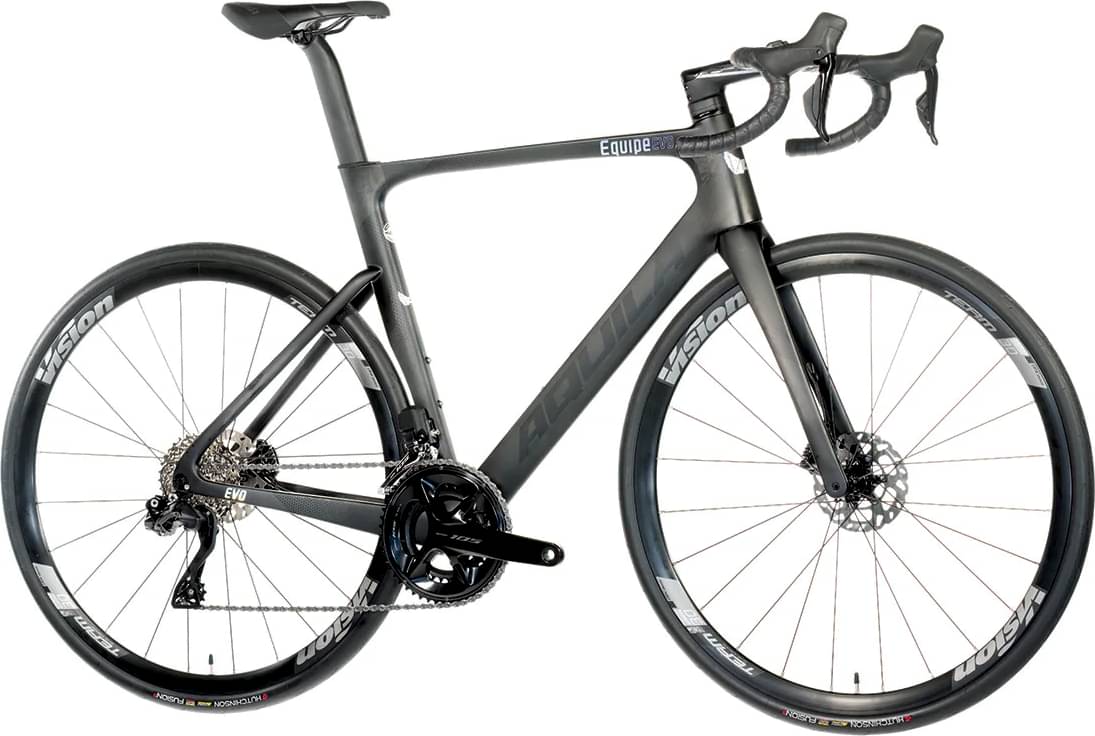

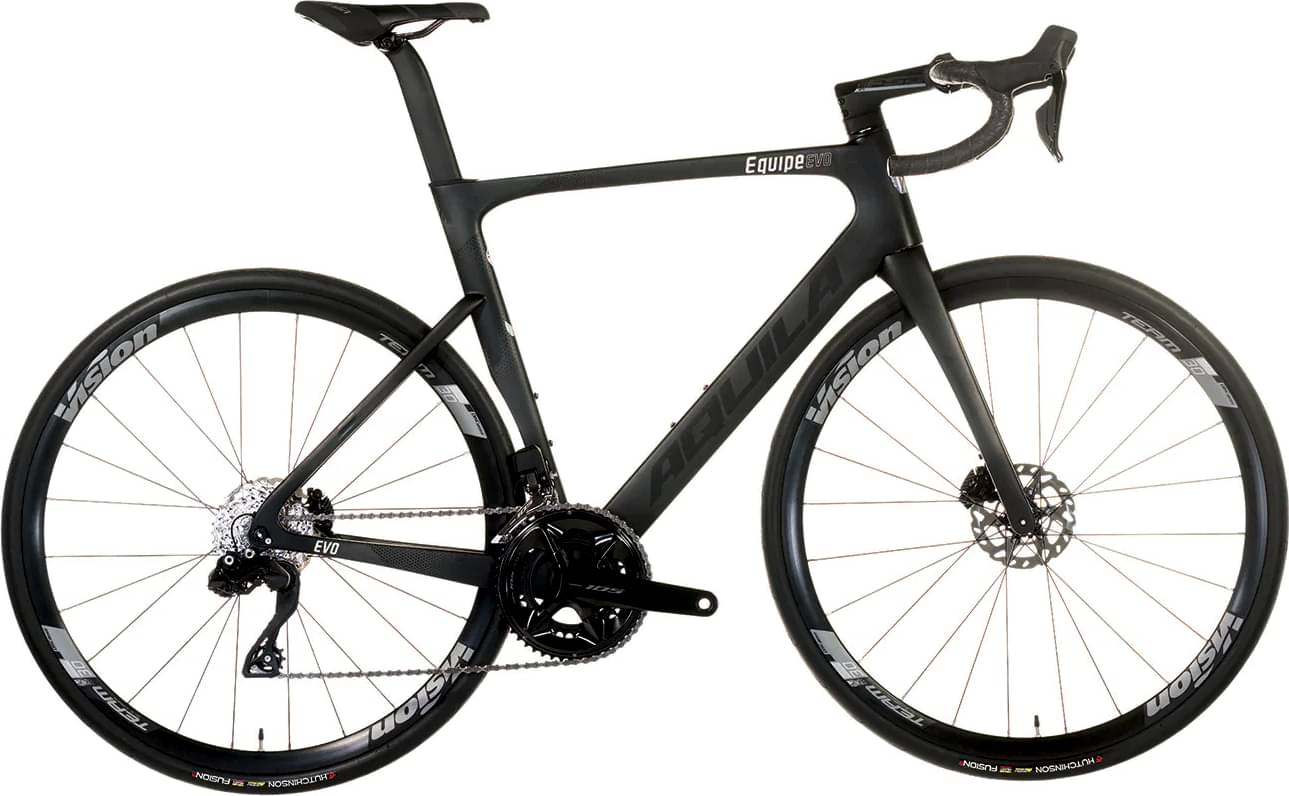

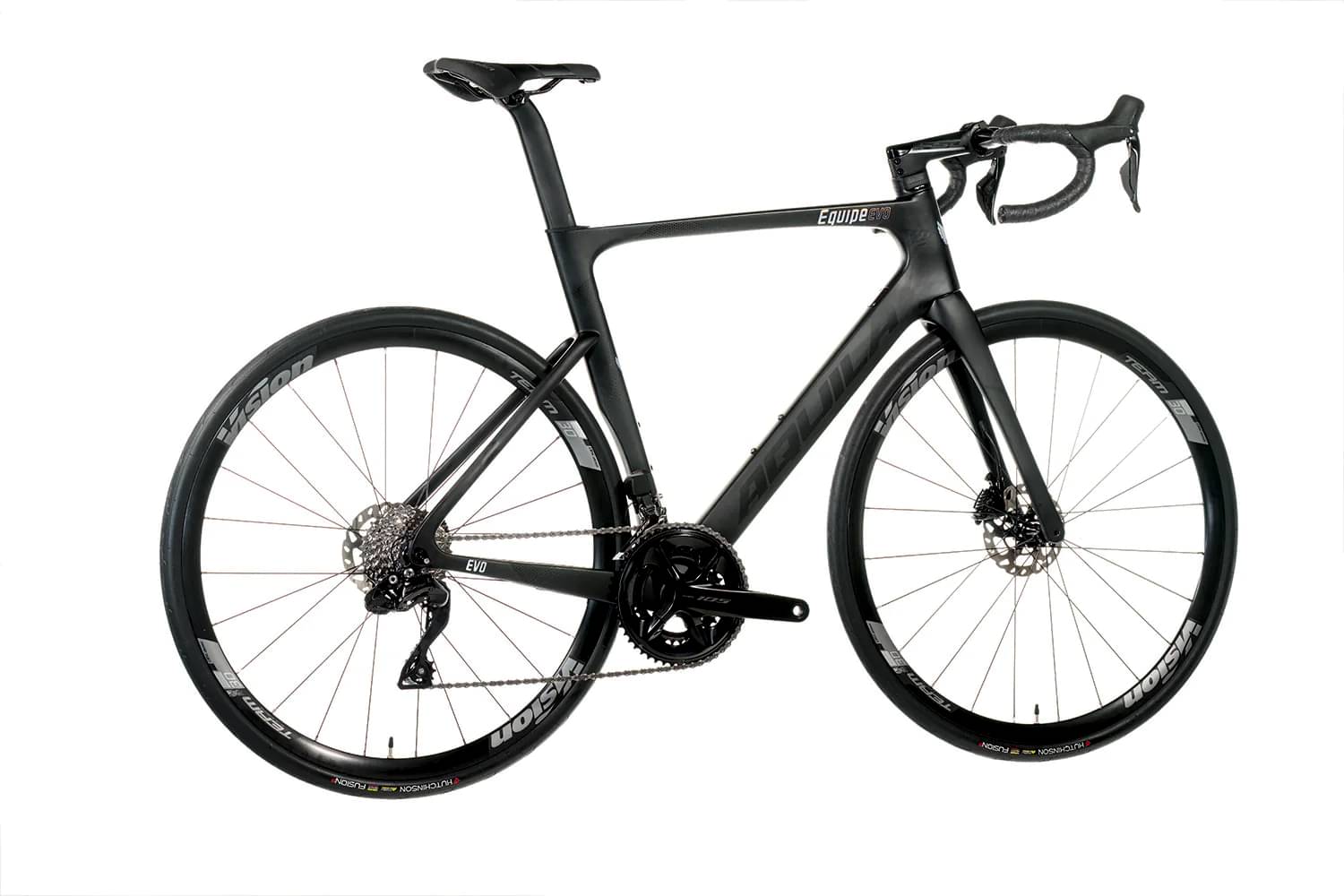

Aquila Equipe EVO – Shimano 105 R7170 Di2 2023
2023 Road
Estimate price |
3,574$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

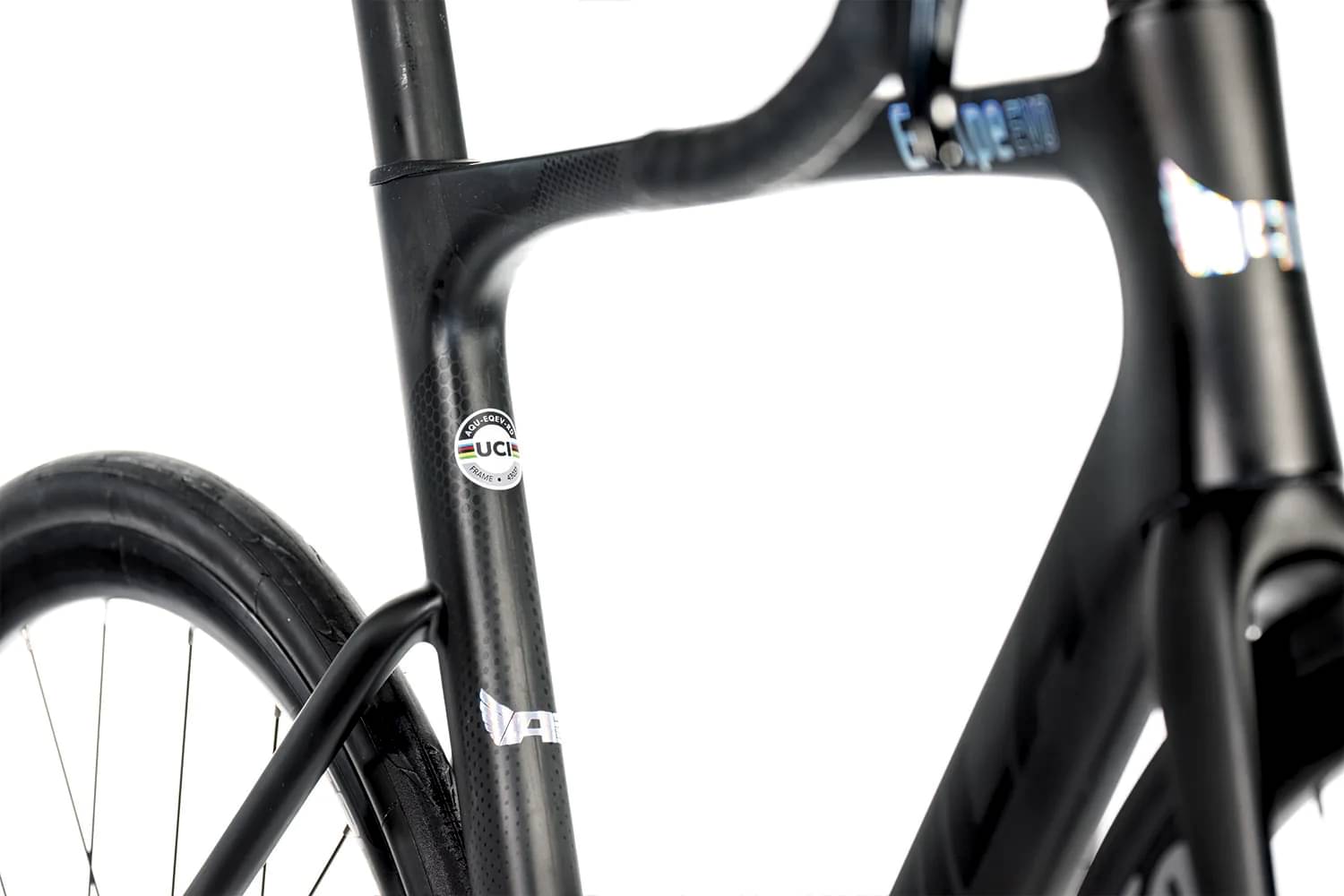

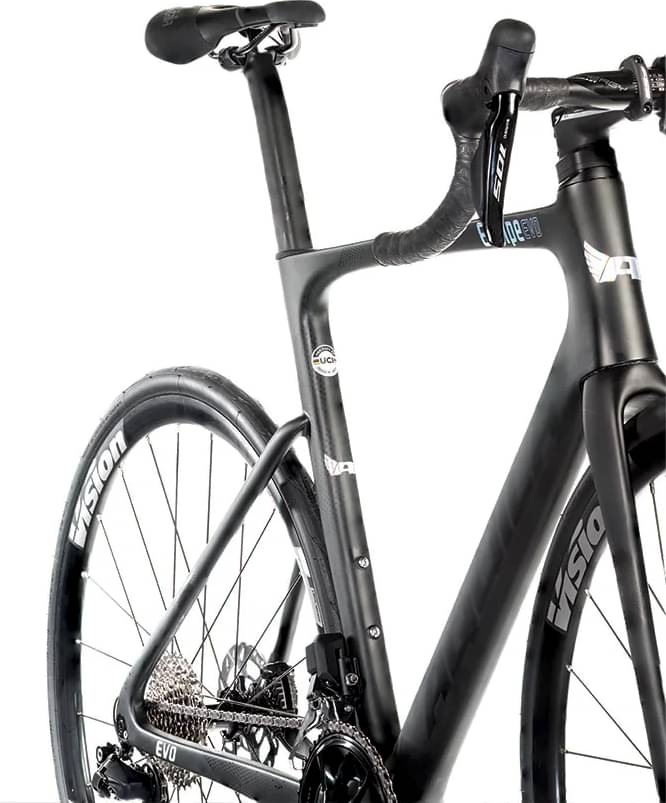

Frame
Frame
Aquila Equipe EVO, HS, Bar/Stem, Seat post

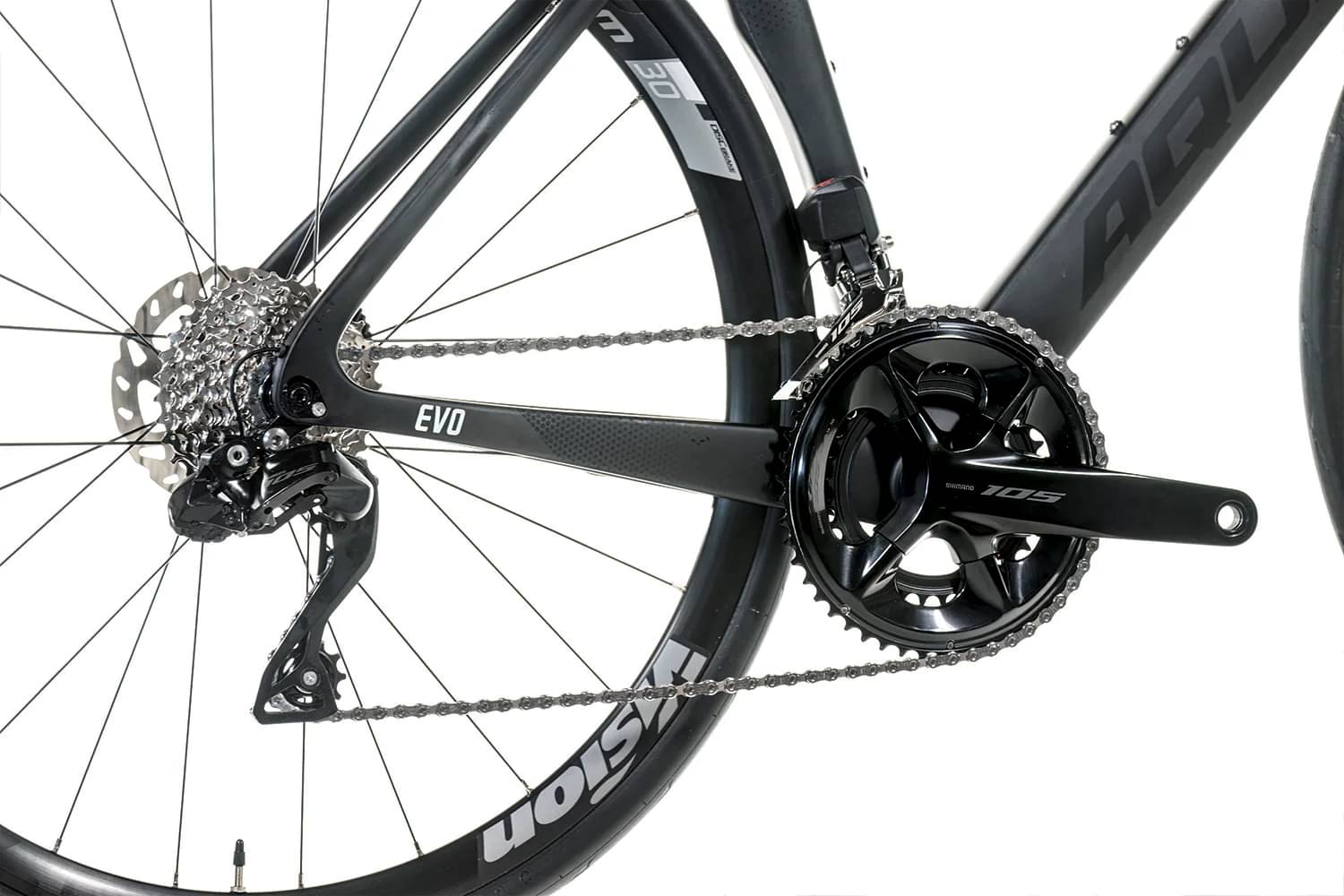

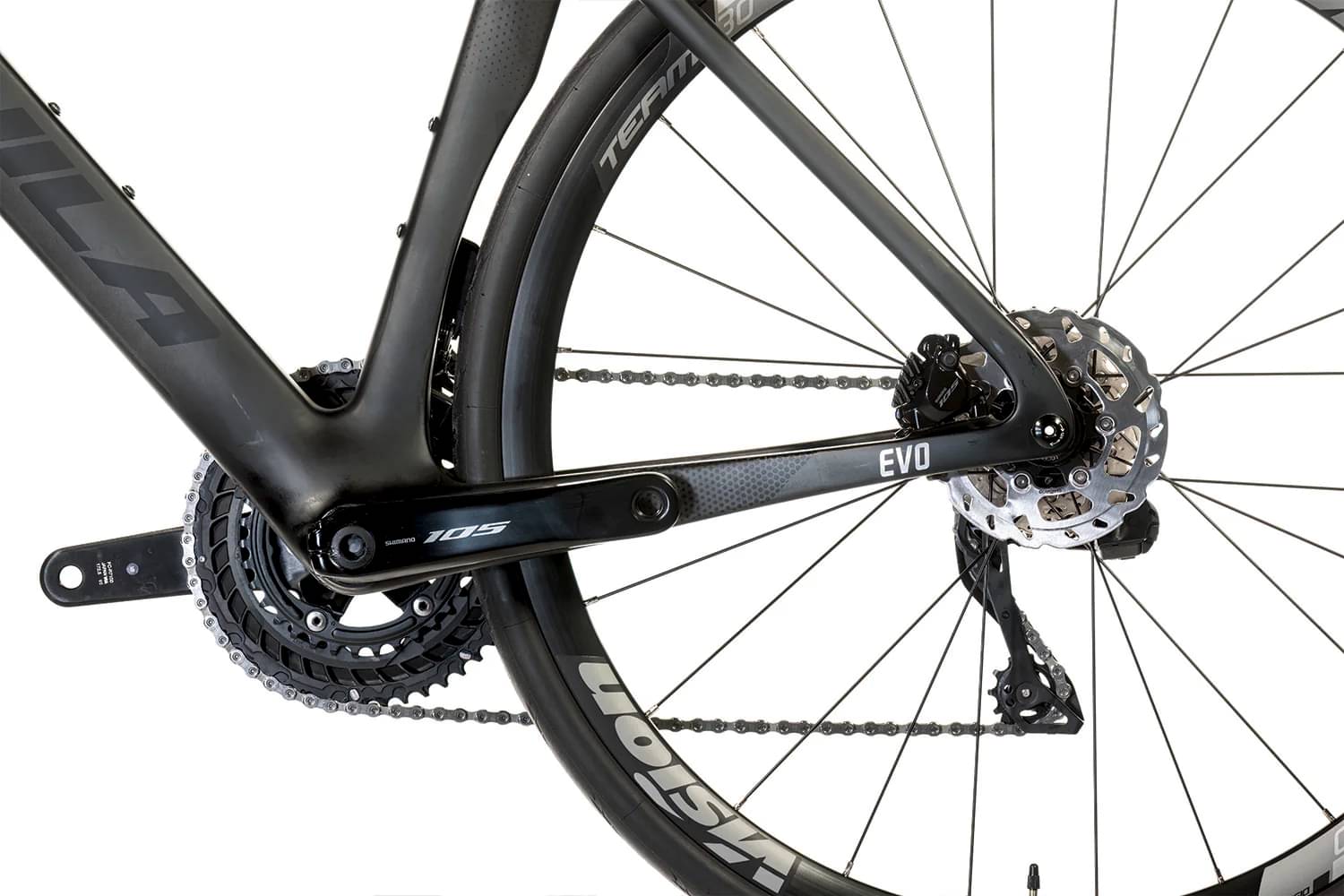

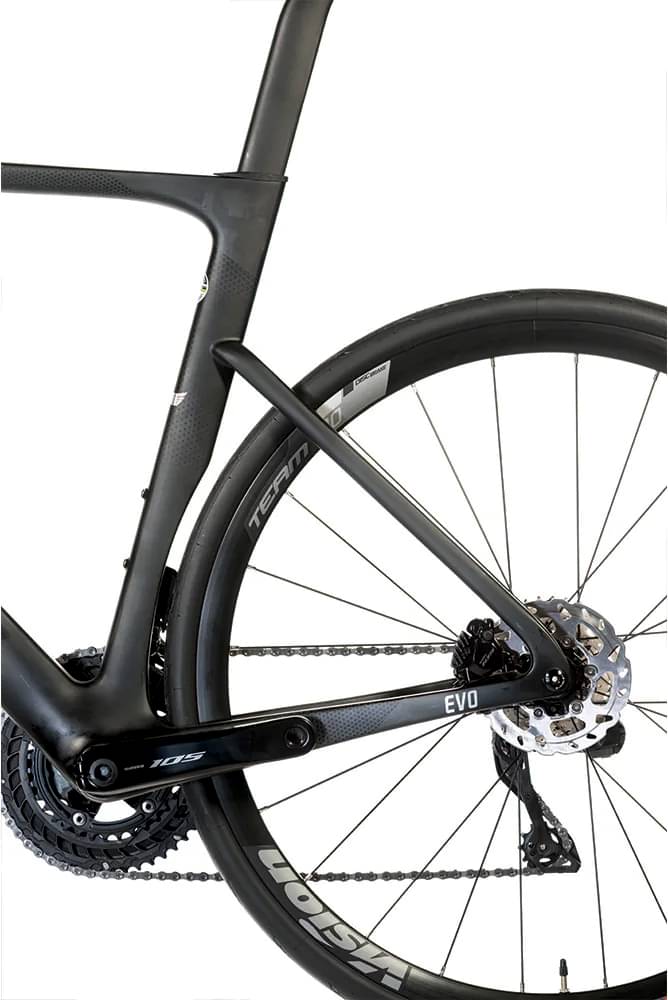

Drivetrain
Rear Derailleur
RDR7150F, 105 Di2
Front Derailleur
FDR7150F, 105 Di2
Shift Levers
STR7170, 105 Di2 Hydraulic W/BRR7170Calipers
Cassette
CSR7100, 105 12 Speed
Crank
FCR7100
Bottom Bracket
Shimano BB86
Chain
CNHG601
Wheels
Rims
Vision Team 30 Disc
Tires
Hutchinson Fusion 5 Galactik
Brakes
Brakes
Hydraulic Disc

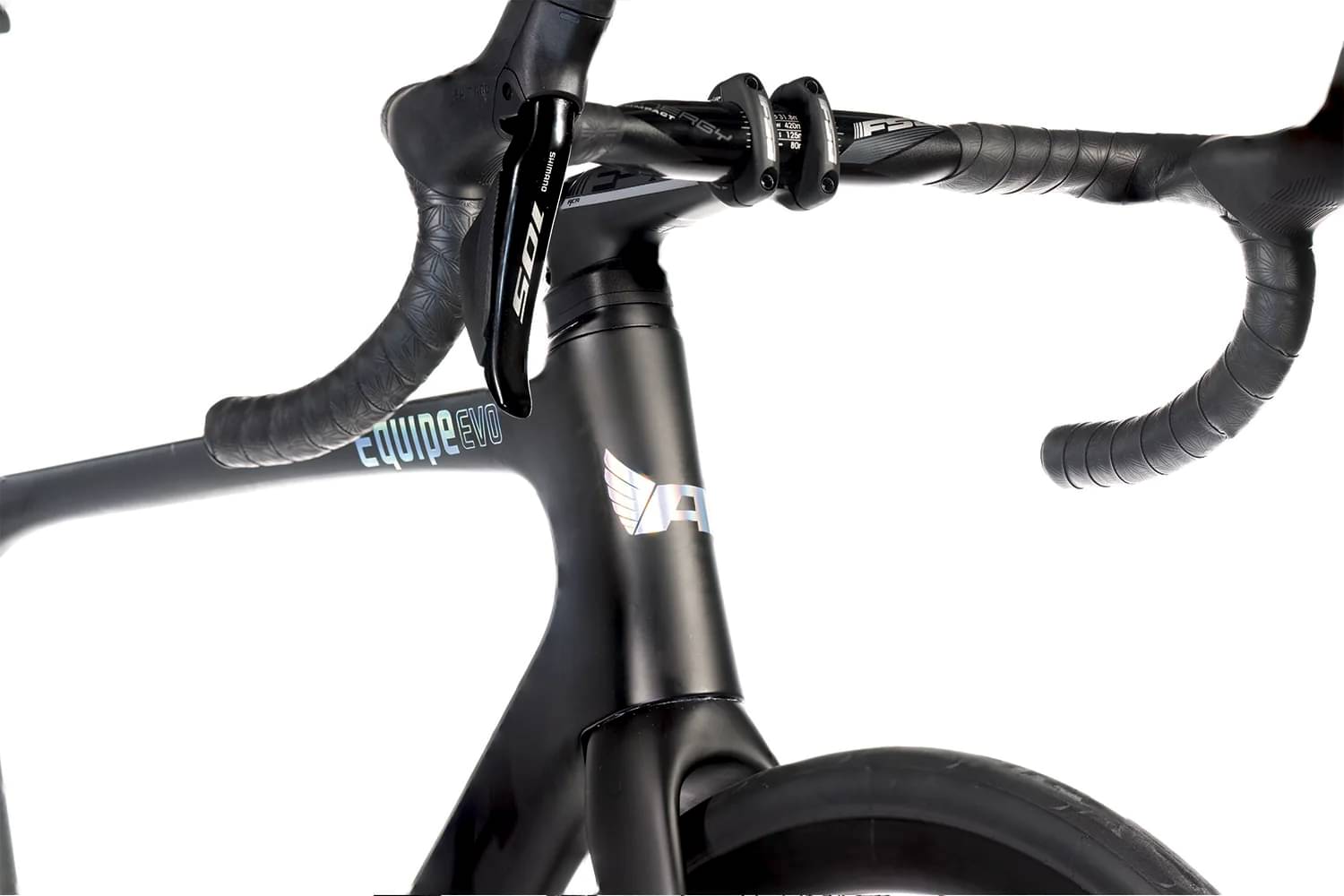

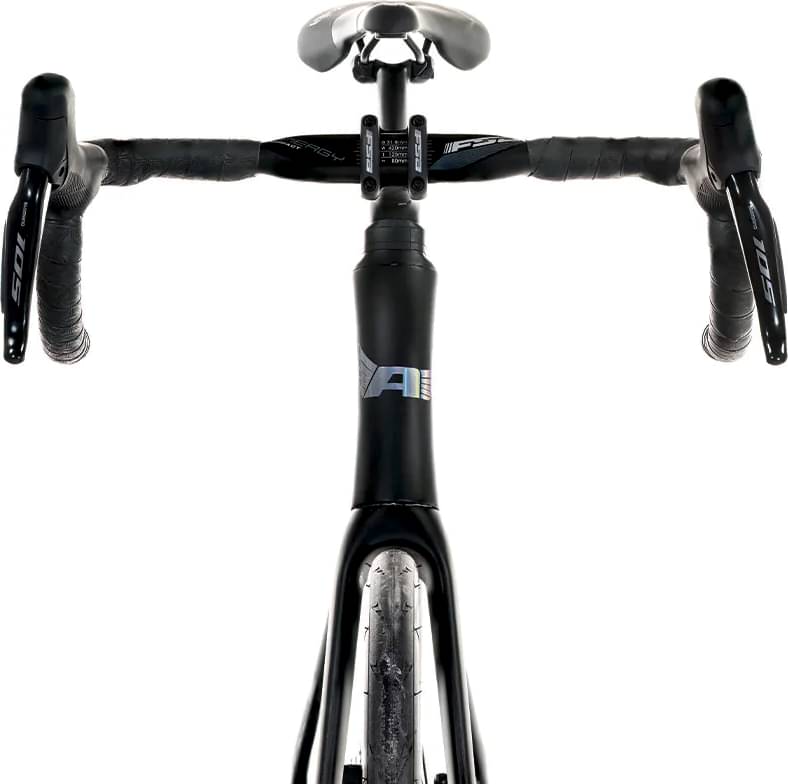

Cockpit
Stem
FSA ACR
Handlebar
FSA Energy ACR
Headset
FSA ACR
Seat
Saddle
Selle Italia Novus Boost
Seatpost
EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.45 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 570 mm | 573 mm | 575 mm | 581 mm | 593 mm |
| Rake | 47 mm | 45 mm | 46 mm | 46 mm | 45 mm |
| Trail | 66 mm | 65 mm | 58 mm | 55 mm | 53 mm |
| Stack | 517 mm | 524 mm | 536 mm | 558 mm | 578 mm |
| Reach | 371 mm | 378 mm | 384 mm | 388 mm | 399 mm |
| Top Tube Length | 509 mm | 516 mm | 536 mm | 546 mm | 568 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 970 mm | 973 mm | 975 mm | 981 mm | 993 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Equipe EVO – Shimano 105 R7170 Di2 belongs to the Aquila Equipe model. 38 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Aquila Equipe UNO 2023 is the cheapest bike model and costs 1247$. Aquila Equipe EVO R – Dura-ace Di2 R9270 Di2 2023 is the most expensive one and costs 10151$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Aquila released this model in 2023, its price was 3615$. In conclusion, this bike price is 7.91% higher than the price of the average Race bike.
Equipe EVO – Shimano 105 R7170 Di2 components

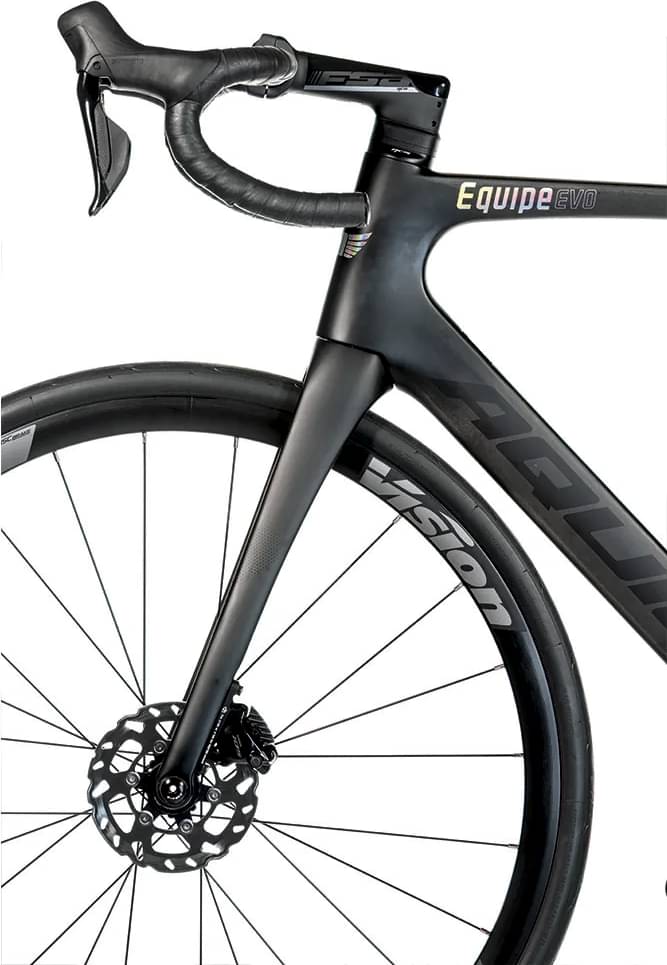

Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Equipe EVO – Shimano 105 R7170 Di2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Equipe EVO – Shimano 105 R7170 Di2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
