Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 177cm
MD
174cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Eero, S-M-L-XL size, Carbon
Suspension Fork
ARC8 Eero, Carbon Gabel
Drivetrain
Rear Derailleur
Campagnolo Ekar 1x13
Front Derailleur
-
Shift Levers
Campagnolo Ekar 1x13
Cassette
Campagnolo EKAR 1x13 10-44
Crank
Campagnolo Ekar 1x13 38t
Bottom Bracket
PRO-Tech BSA
Chain
Campagnolo Ekar 1x13
Wheels
Rims
Front: Campagnolo Levante, Rear: Campagnolo Levante
Tires
Front: Pirelli Cinturato™ GRAVEL H 45-622, Rear: Pirelli Cinturato™ GRAVEL H 45-622
Brakes
Brakes
Campagnolo Ekar 1x13
Cockpit
Stem
ICH Stem
Handlebar
ARC8 Gravel
Headset
ARC8
Seat
Saddle
Selle San Marco Monza
Seatpost
Faserwerk Wuthocker
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 594 mm | 603 mm | 623 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 536 mm | 559 mm | 584 mm | 609 mm |
| Reach | 355 mm | 367 mm | 379 mm | 391 mm |
| Top Tube Length | 516 mm | 536 mm | 555 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 157 mm | 170 mm | 197 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 993 mm | 1003 mm | 1023 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 765 mm | 800 mm | 821 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 174 cm | 179 cm | 186 cm |
| Rider Max Height | 177 cm | 182 cm | 188 cm | cm |
About this model

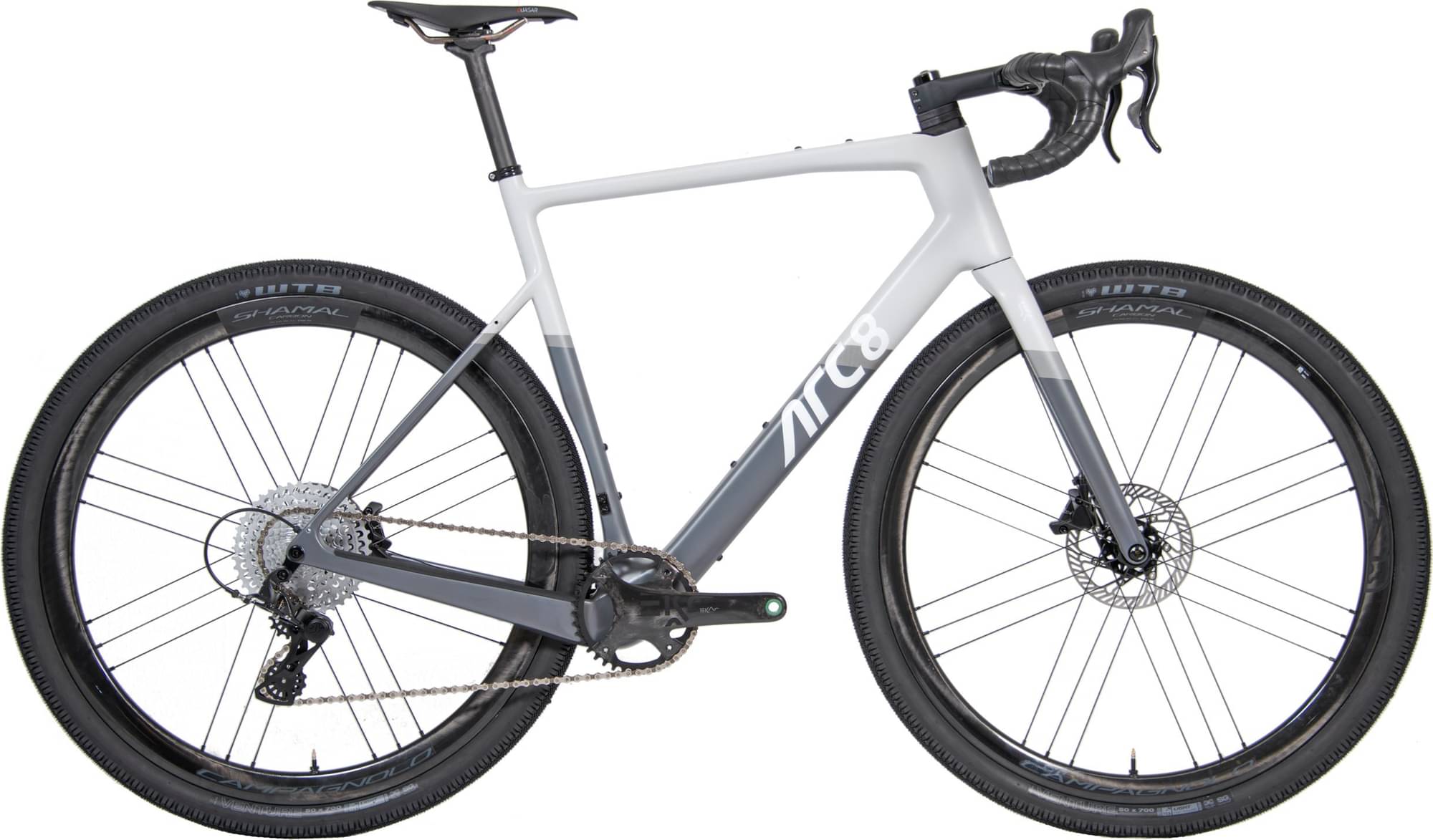

Eero EKAR is part of the Arc8 Eero model. ARC8 launched 12 bikes of this model so far. Take a sneak peek at all Arc8 Eero bikes models from 2022, by clicking here.
Model range prices
ARC8 Eero FORCE WIDE AXS ETAP 1X 2022 is the cheapest bike model and costs 5839$. ARC8 Eero GRX DI2 2X 2022 is the most expensive one and costs 6136$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 6051$. In conclusion, this bike price is 145.78% higher than the price of the average Gravel bike.
Eero EKAR components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Eero EKAR bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. ARC8 Eero EKAR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
