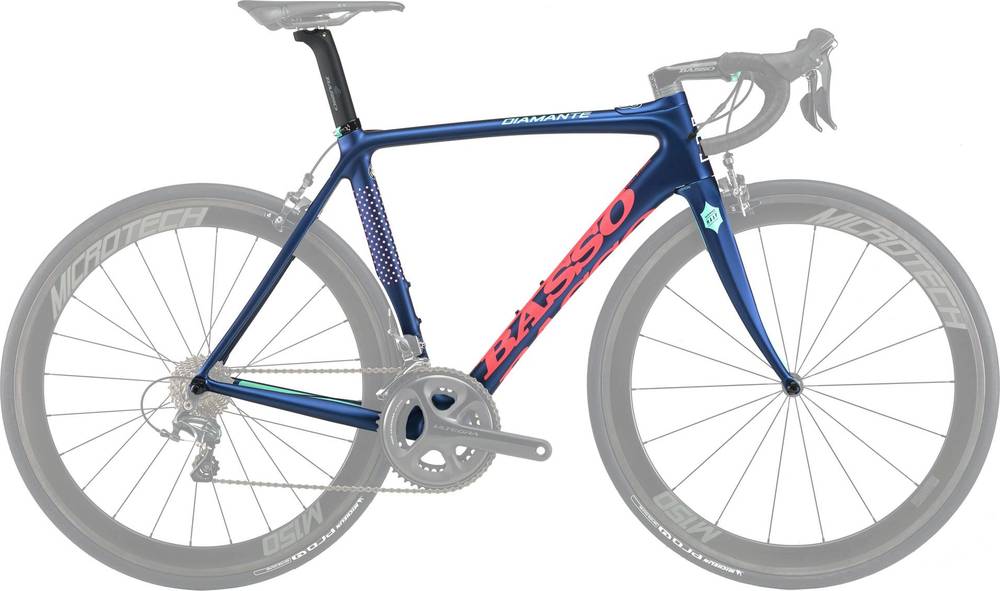

Basso Diamante “MAAP” LTD Frameset 2019
2019 Road
Estimate price |
5,195$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
1K Torayca HMCF T1000 & T800
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Diamante Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.29 mm | 1.34 mm | 1.35 mm | 1.41 mm | 1.46 mm | 1.55 mm |
| Stack | 492 mm | 492 mm | 516 mm | 528 mm | 555 mm | 578 mm | 612 mm |
| Reach | 380 mm | 381 mm | 385 mm | 392 mm | 394 mm | 395 mm | 396 mm |
| Top Tube Length | 504 mm | 514 mm | 524 mm | 544 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm | 127 mm | 145 mm | 169 mm | 203 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Diamante “MAAP” LTD Frameset is part of the Basso Diamante model. 38 frames variations carry this model name so far. You can easily view all of the Basso Diamante frames models from 2019, here.
Model range prices
Basso Diamante Frameset 2019 is the most affordable frame of this model and has a price of 4495$. On the other hand, Basso Diamante SV Disc Frameset 2019, is the most expensive and costs 5595$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Basso Diamante “MAAP” LTD Frameset price was 5195$. Doing a quick comparison, we notice that Diamante “MAAP” LTD Frameset price is 112.47% more expensive than the average cost of a Race frame.
Diamante “MAAP” LTD Frameset components
Fork material
Diamante “MAAP” LTD Frameset has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
