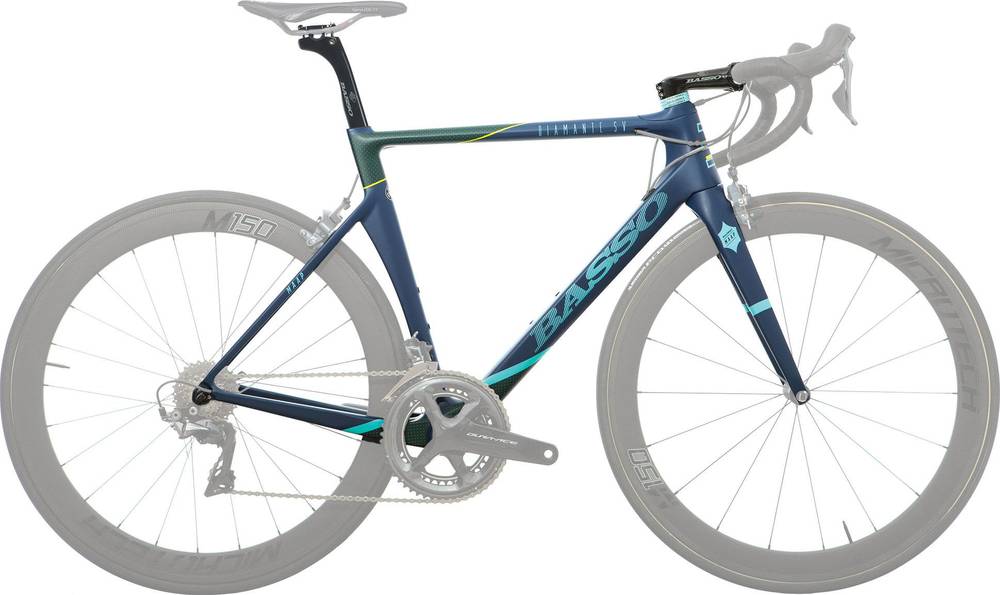

Basso Diamante SV “MAAP” LTD. Frameset 2019
2019 Road
Estimate price |
5,295$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3K Torayca HMCF T1000 & T800
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Basso Alloy
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Diamante SV Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.29 mm | 1.34 mm | 1.35 mm | 1.41 mm | 1.46 mm | 1.55 mm |
| Stack | 492 mm | 492 mm | 516 mm | 528 mm | 555 mm | 578 mm | 612 mm |
| Reach | 380 mm | 381 mm | 385 mm | 392 mm | 394 mm | 395 mm | 396 mm |
| Top Tube Length | 504 mm | 514 mm | 524 mm | 544 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm | 127 mm | 145 mm | 169 mm | 203 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Diamante SV “MAAP” LTD. Frameset completes the Basso Diamante model. Basso released 38 frames variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Basso Diamante Frameset 2019 is the most economical model, with a starting price of 4495$. Basso Diamante SV Disc Frameset 2019 on the other hand costs 5595$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race frames average price
Our math shows that the average cost of a dependable Race frame is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Basso released this model in 2019, its price was 5295$. Comparing the average cost of a Race frame to this one, you will see that Diamante SV “MAAP” LTD. Frameset price is 116.56% higher.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
