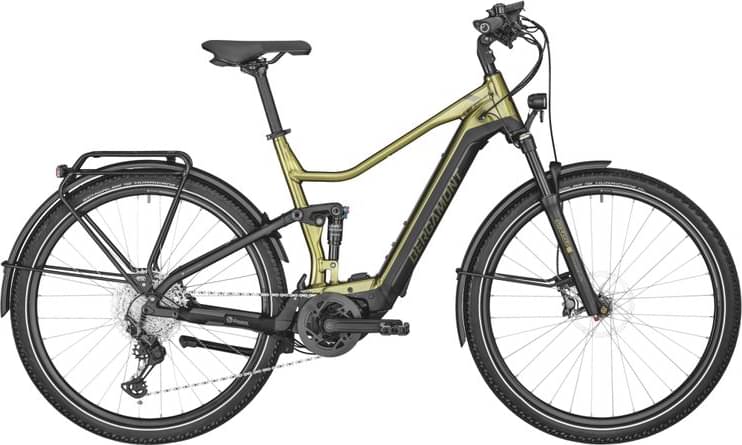

Bergamont E-Horizon FS Elite 2022
2022 E-bike
Estimate price |
5,848$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 25 Air, LOR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano Deore XT, BR-M8100, hydraulic disc brake
Brake Levers
Shimano Deore XT, BL-T8100, hydraulic disc brake
Disk Rotors
Shimano SM-RT54, 180 mm
Cockpit
Stem
BGM E-Bike, adjustable, for Kiox integration
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking, gel
Seatpost
Syncros Duncan, dropper post, 120 mm travel, remote
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.49 mm | 1.49 mm |
| Front Center | 677 mm | 693 mm | 708 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 420 mm | 431 mm | 440 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 631 mm |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1147 mm | 1163 mm | 1178 mm | 1194 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 774 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon FS Elite is part of the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Bergamont E-Horizon Edition Gent 2022 is the cheapest e-bike model and costs 3503$. Bergamont E-Horizon FS Elite Speed 2022 is the most expensive one and costs 5945$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5414$. In conclusion, this e-bike price is 110.74% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Bergamont E-Horizon FS Elite it’s weighing 26 kg (57.32 lbs). At this weight, is slightly heavier than average. In conclusion, the average Commuter e-bike weighs 3.17% less than E-Horizon FS Elite.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Suntour UNAir R8 model, with a travel of 80mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on E-Horizon FS Elite are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon FS Elite has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Bergamont E-Horizon FS Elite comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
