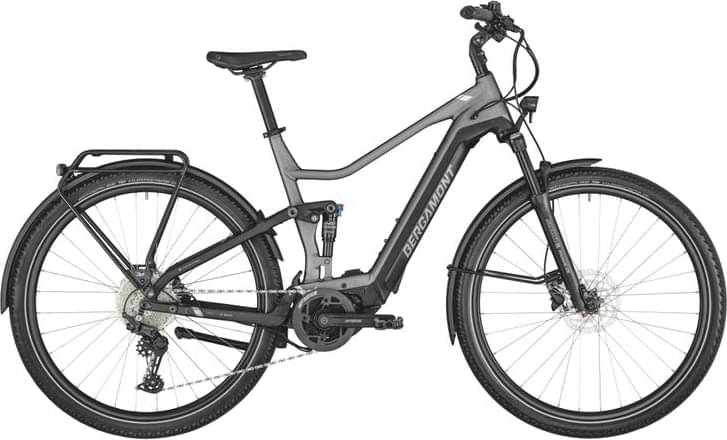

Bergamont E-Horizon FS Expert 2022
2022 E-bike
Estimate price |
5,390$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 25 Air, LOR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e11s
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, centerlock, disc, 15x100 mm axle
Rear Hub
BGM Pro, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Disk Rotors
Shimano SM-RT10, 180 mm
Cockpit
Stem
BGM Pro, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking, gel
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 678 mm | 694 mm | 709 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 629 mm |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1148 mm | 1164 mm | 1179 mm | 1194 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon FS Expert is part of the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Bergamont E-Horizon Edition Gent 2022 is the most economical model, with a starting price of 3503$. Bergamont E-Horizon FS Elite Speed 2022 on the other hand costs 5945$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Bergamont released this model in 2022, its price was 4989$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-Horizon FS Expert price is 94.2% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 26.1 kg (57.54 lbs), Bergamont e-bike is slightly heavier than average. To sum up, it’s 3.57% heavier than the average weight of Commuter e-bikes.
E-Horizon FS Expert components
Fork
The E-Horizon FS Expert comes factory-installed with the Suntour MOBIE fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Suntour UNAir R8 rear shock model, which has a travel of 80mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the E-Horizon FS Expert e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Horizon FS Expert is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
