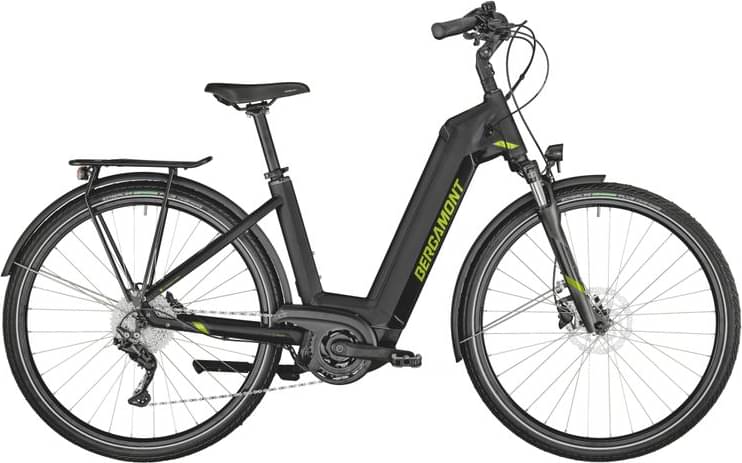

Bergamont E-Horizon Sport Wave 2022
2022 E-bike
Estimate price |
3,784$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-42t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT200, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, silver
Tires
Schwalbe Energizer Plus, reflective stripe, 50-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Disk Rotors
Shimano SM-RT10, 180 mm / Shimano SM-RT10, 160 mm
Cockpit
Stem
BGM Pro, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, lady
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.6 mm | 1.58 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 651 mm | 651 mm | 651 mm | 651 mm |
| Reach | 396 mm | 401 mm | 406 mm | 411 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 507 mm | 507 mm | 507 mm | 507 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Sport Wave belongs to the Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Bergamont E-Horizon Edition Gent 2022 is the cheapest e-bike model and costs 3503$. Bergamont E-Horizon FS Elite Speed 2022 is the most expensive one and costs 5945$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3503$. Doing a quick comparison, we notice that E-Horizon Sport Wave price is 36.36% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, E-Horizon Sport Wave has a weight of 27.6 kg (60.85 lbs). In other words, this model is 9.52% heavier than the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the E-Horizon Sport Wave model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Horizon Sport Wave has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
