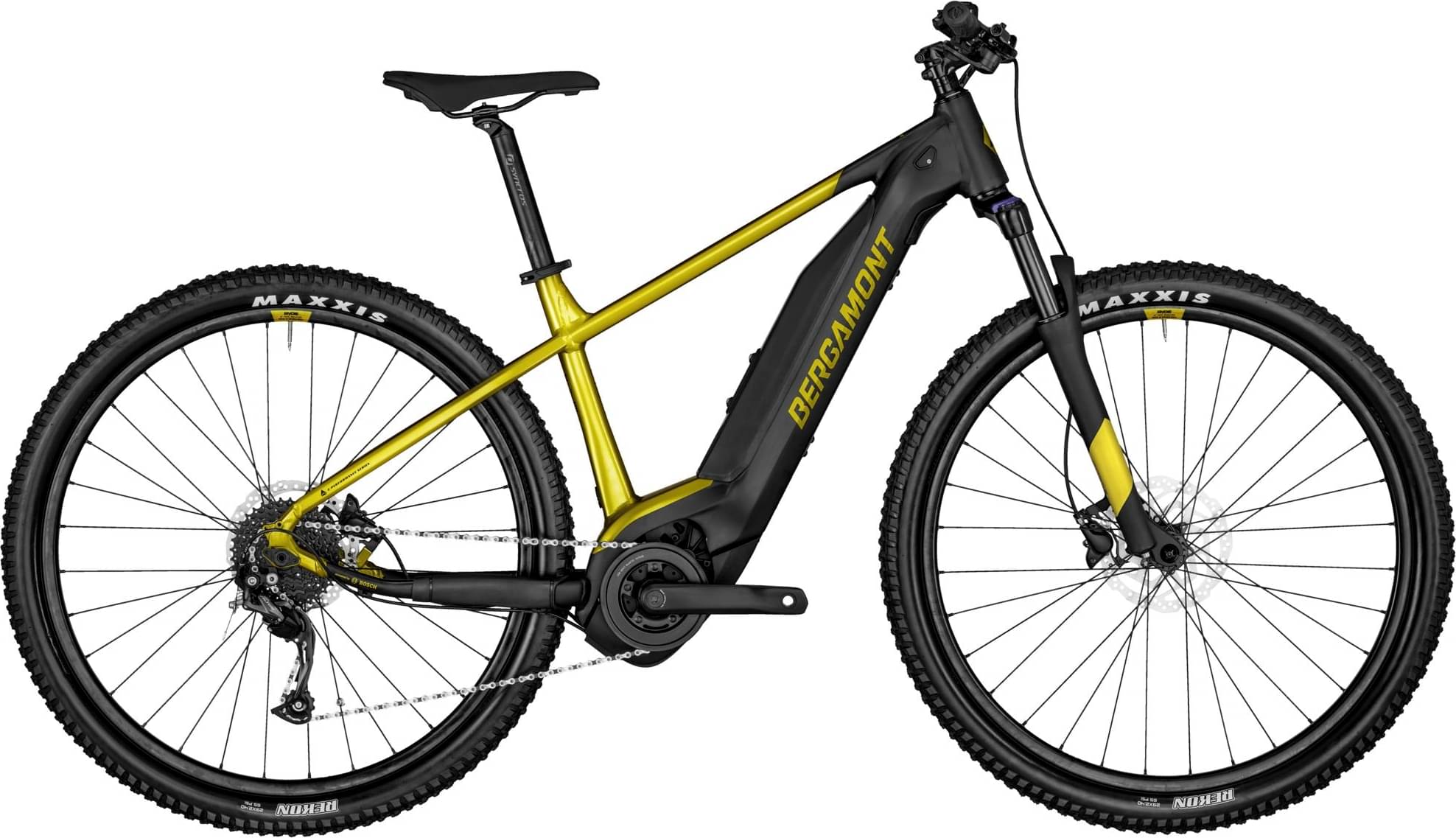

Bergamont E-Revox 4 2023
2023 E-bike
Estimate price |
3,478$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack, covered, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, integrated PowerPack battery
Suspension Fork
Suntour X1 LO, 100 mm, rebound adjust
Drivetrain
Rear Derailleur
Shimano RD-M2000, Shadow
Shift Levers
Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter
Cassette
Sunrace CS-M90, 11-36t
Crank
FSA CK-200, 32t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e9S
Pedals
none
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
BGM Pro, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Maxxis Rekon, 29x2.40" Tube: Schwalbe SV19B Light, Rear: Maxxis Rekon, 29x2.40" Tube: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S
Grips
Syncros MTB
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros M3.0
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerPack, covered, 36 V Li Ion, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 751 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox 4 completes the Bergamont E E Revox model. 62 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bergamont E-Revox 4 2023 is the most economical model, with a starting price of 3161$. Bergamont E-Revox Elite Rigid EQ 2023 on the other hand costs 4925$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3161$. Doing a quick comparison, we notice that E-Revox 4 price is 28.86% more expensive than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 22.5 kg (49.6 lbs), the E-Revox 4 model is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 3.16% more than E-Revox 4.
Overview of components
Fork
The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on E-Revox 4 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
E-Revox 4 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
