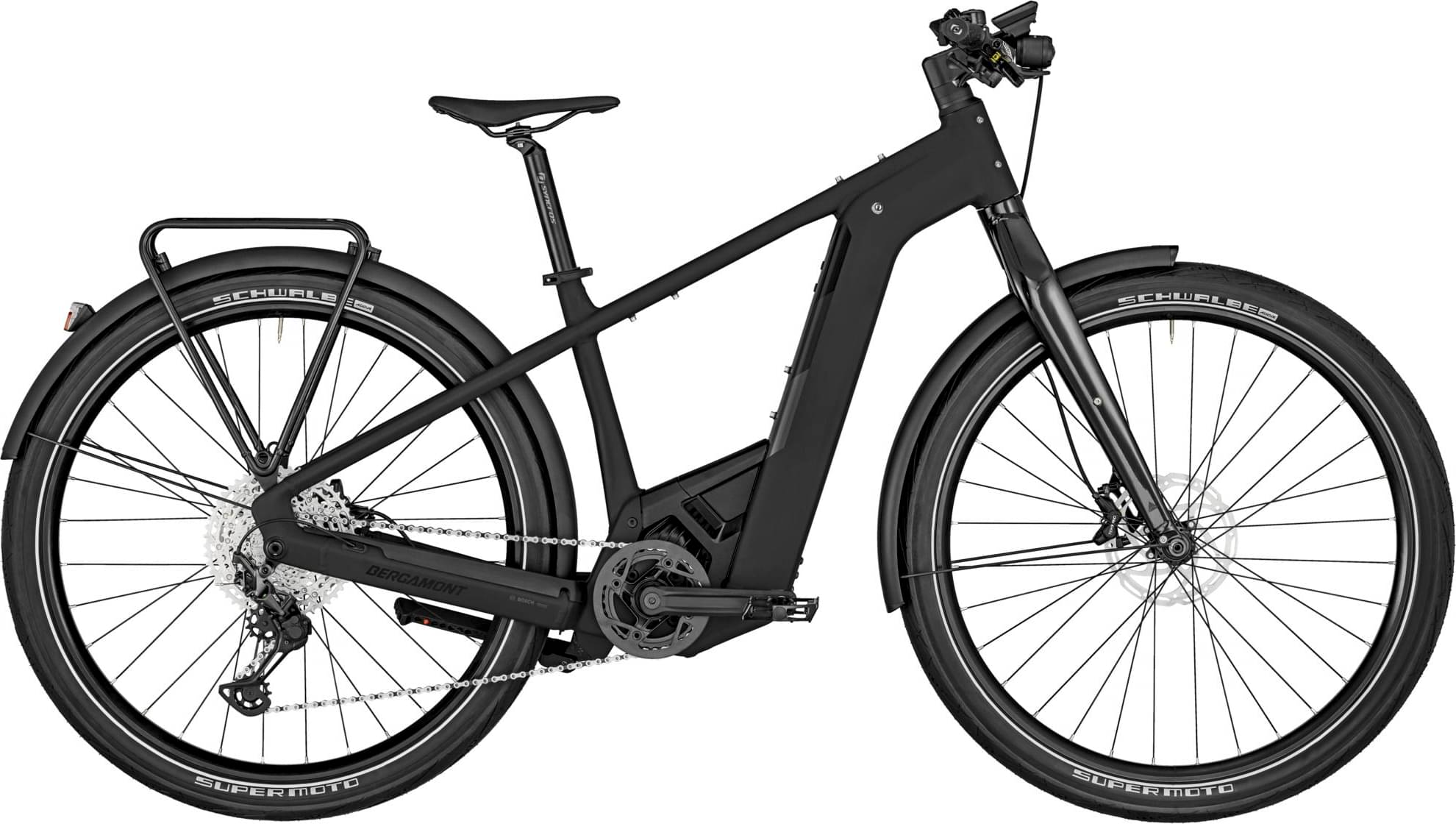

Bergamont E-Revox Elite Rigid EQ 2023
2023 E-bike
Estimate price |
5,419$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset XT, Deore -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
BGM MTB rigid fork, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
MTB alloy
Wheels
Front Hub
Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Super Moto, Performance, 29x2.40" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Super Moto, Performance, 29x2.40" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.63 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm | 683 mm |
| Reach | 398 mm | 405 mm | 413 mm | 418 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Revox Elite Rigid EQ completes the Bergamont E E Revox model. There are 62 e-bikes that carry this model name. Take a sneak peek at all Bergamont E E Revox e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Bergamont E-Revox 4 2023 has a starting price of 3161$. Bergamont E-Revox Elite Rigid EQ 2023 on the other hand is the most expensive at 4925$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4925$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-Revox Elite Rigid EQ price is 91.71% more expensive.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Bergamont E-Revox Elite Rigid EQ it’s weighing 27.3 kg (60.19 lbs). At this weight, is a bit heavier than average. To sum up, it’s 8.33% heavier than the average weight of Commuter e-bikes.
E-Revox Elite Rigid EQ components
Wheels
As for the wheels, Bergamont E-Revox Elite Rigid EQ 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Bergamont E-Revox Elite Rigid EQ e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
