Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BR DISC Belador frame made of carbon HM3X made of CNT Nanotech resin and monocoque structure / competition BGC geometry with Power Efficiency system / Active Stay braces / oversized OHS steering / Flat Mount / BB86 brake system / internal wiring / frame weight gr. 820
Suspension Fork
BLADE HELIUM DISC
Drivetrain
Rear Derailleur
Shimano Ultegra FD-R8000, 11V, clamp
Shift Levers
Shimano ST-RS8020, 11V
Cassette
Shimano Ultegra CS-R7000, 11-28T, 11V
Crank
2D rotor, 7075 aluminum, 50 / 34T, 170 / 172.5 / 175 mm
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano HG601, 11V
Wheels
Rims
2,000 gr
Spokes
24 (front) / 24 (rear)
Tires
Vittoria Zaffiro 25-622
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
Zipp Service Course Ø31.8 mm, -6º, 1-1 / 8 ", 6061 aluminum, 80/90/100/110/120 mm
Handlebar
Zipp 70 Ergo handlebar, 6061 aluminum, 70mm reach, 128mm drop, 31.8mm diameter
Seat
Saddle
Fi'zi saddle: k Antares R7, Wing Flex, K rails: ium, width 142 mm and length 275 mm
Seatpost
Zipp Service Course Ø27.2mm, 350mm, 25mm offset, 6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 572 mm | 579 mm | 586 mm | 594 mm | 605 mm |
| Rake | 48 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 59 mm | 57 mm | 56 mm | 55 mm |
| Stack | 505.9 mm | 521.8 mm | 537.2 mm | 552.3 mm | 571.7 mm |
| Reach | 365.3 mm | 378.9 mm | 384.5 mm | 389.6 mm | 395.9 mm |
| Top Tube Length | 505.1 mm | 529 mm | 542 mm | 556 mm | 570 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 72.6 ° | 72.9 ° | 73.1 ° | 73.2 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 966 mm | 973 mm | 981 mm | 989 mm | 1000 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

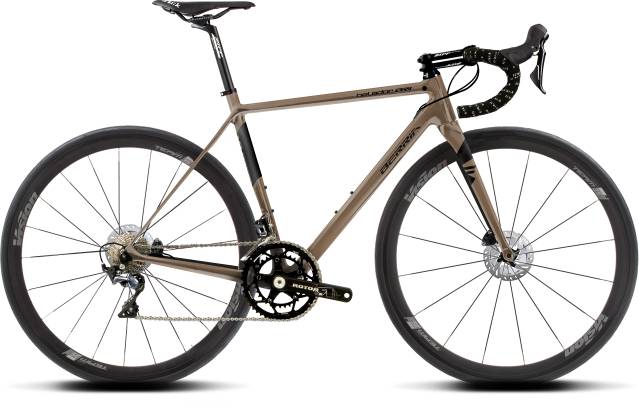

BELADOR BR DISC 8 is part of the Berria Belador model. Berria released 65 bikes variations of this model so far. Take a sneak peek at all Berria Belador bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Berria BELADOR 7 2020 has a starting price of 1910$. Berria BELADOR BR DISC LTD 2020 on the other hand is the most expensive at 6688$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3503$. In conclusion, this bike price is 49.32% higher than the price of the average Endurance bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The BELADOR BR DISC 8 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The BELADOR BR DISC 8 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
BELADOR BR DISC 8 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
