Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, FSA -
Suspension Hardtail -
Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Hybrid Alloy 28" Internal Cable Routing
Suspension Fork
SR Suntour NEX HLO 63mm
Drivetrain
Rear Derailleur
Shimano Acera 8sp
Front Derailleur
-
Shift Levers
Shimano Acera
Cassette
Shimano HG200 8sp (11-32T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG40
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Kenda K1129 700x45C
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
BH Ergonomic
Headset
Tapered with adaptor
Seat
Saddle
Selle Royal Freccia gel
Seatpost
Alloy 31,6
Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.686 mm | 1.586 mm | 1.498 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Stack | 671 mm | 671 mm | 671 mm |
| Reach | 398 mm | 423 mm | 448 mm |
| Top Tube Length | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 666 mm | 691 mm | 717 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

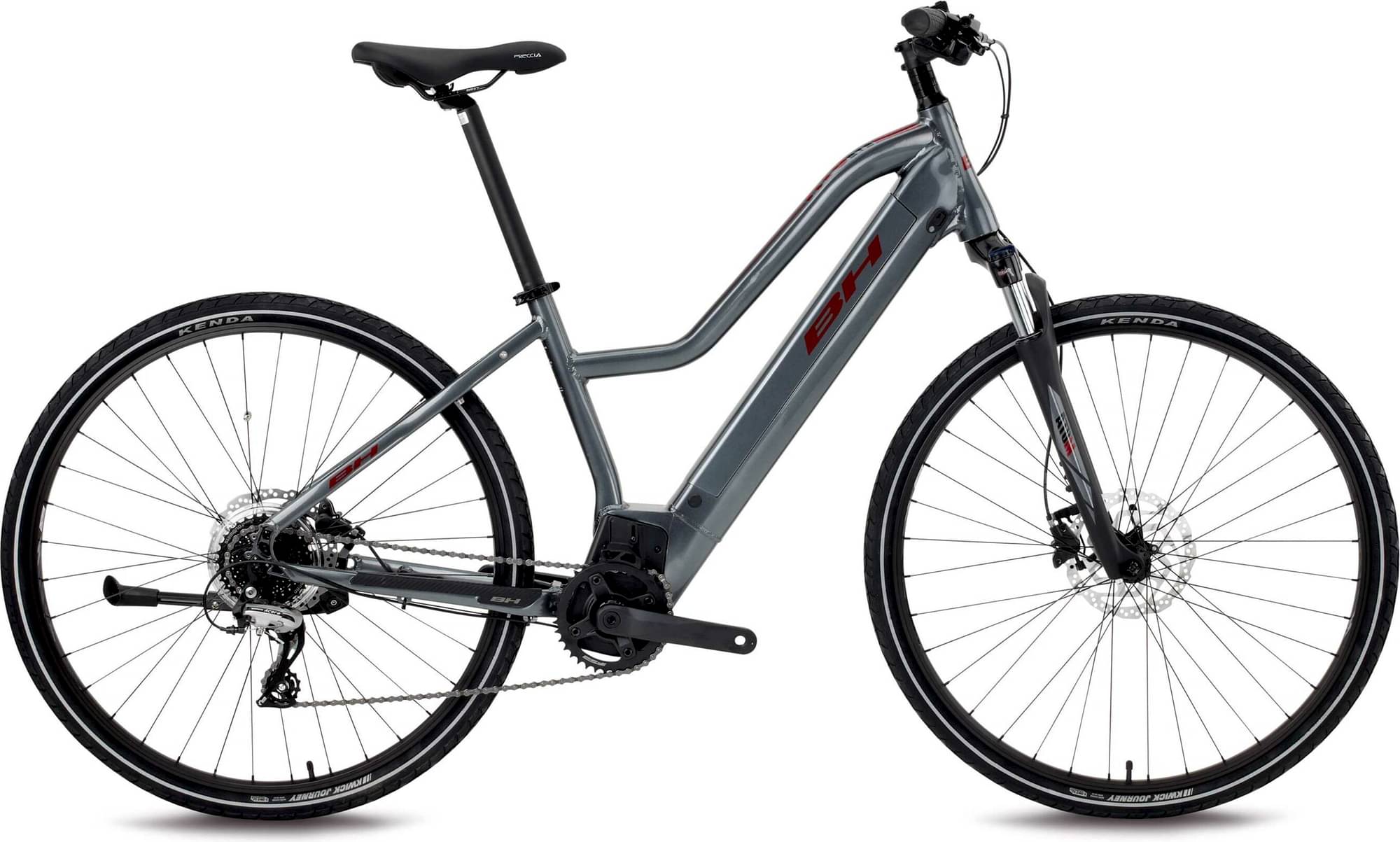

Model Overview
ATOM JET completes the Bh E Atom model. BH launched 32 e-bikes of this model so far. Take a sneak peek at all Bh E Atom e-bikes models from 2023, by clicking here.
Model range prices
BH ATOM JET 2023 is the cheapest e-bike model and costs 2918$. BH ATOM LYNX 8.1 2023 is the most expensive one and costs 4986$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2918$. If we compare this with the average Hybrid e-bike cost we notice that the price is 17.66% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components

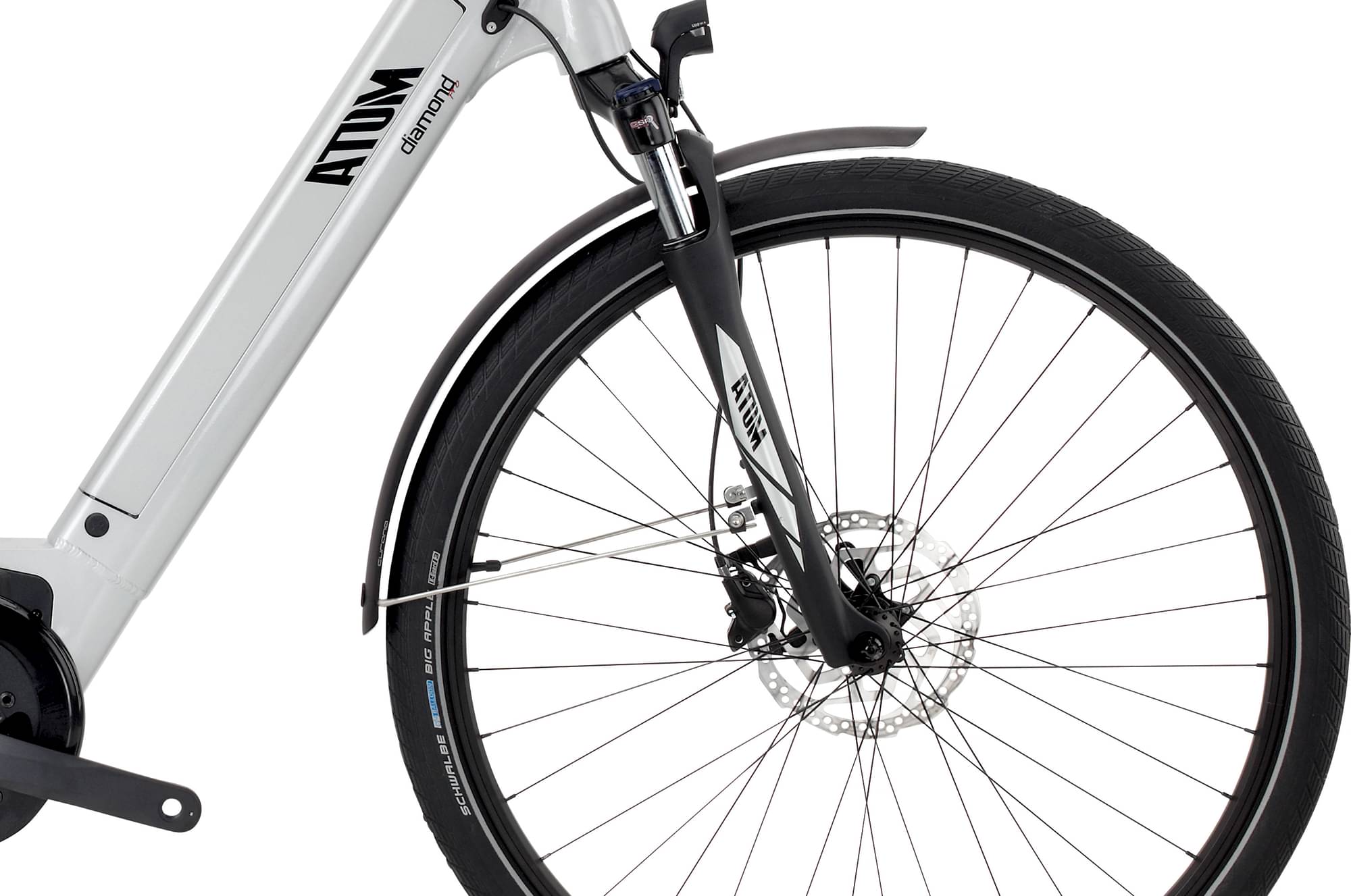

Fork
BH ATOM JET 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the ATOM JET e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
