Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Praxis -
Suspension Full -
Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy 29" Internal Cable Routing
Suspension Fork
Rock Shox Recon RL 150mm 15QR
Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (10-51T)
Crank
Praxis 34T-165mm
Chain
Shimano HG60
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Maxxis Forekaster TPI60 29"X2,35"
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
Ergon GE10
Headset
Acros AIX-322 OD46
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Kind Shock RAGEI

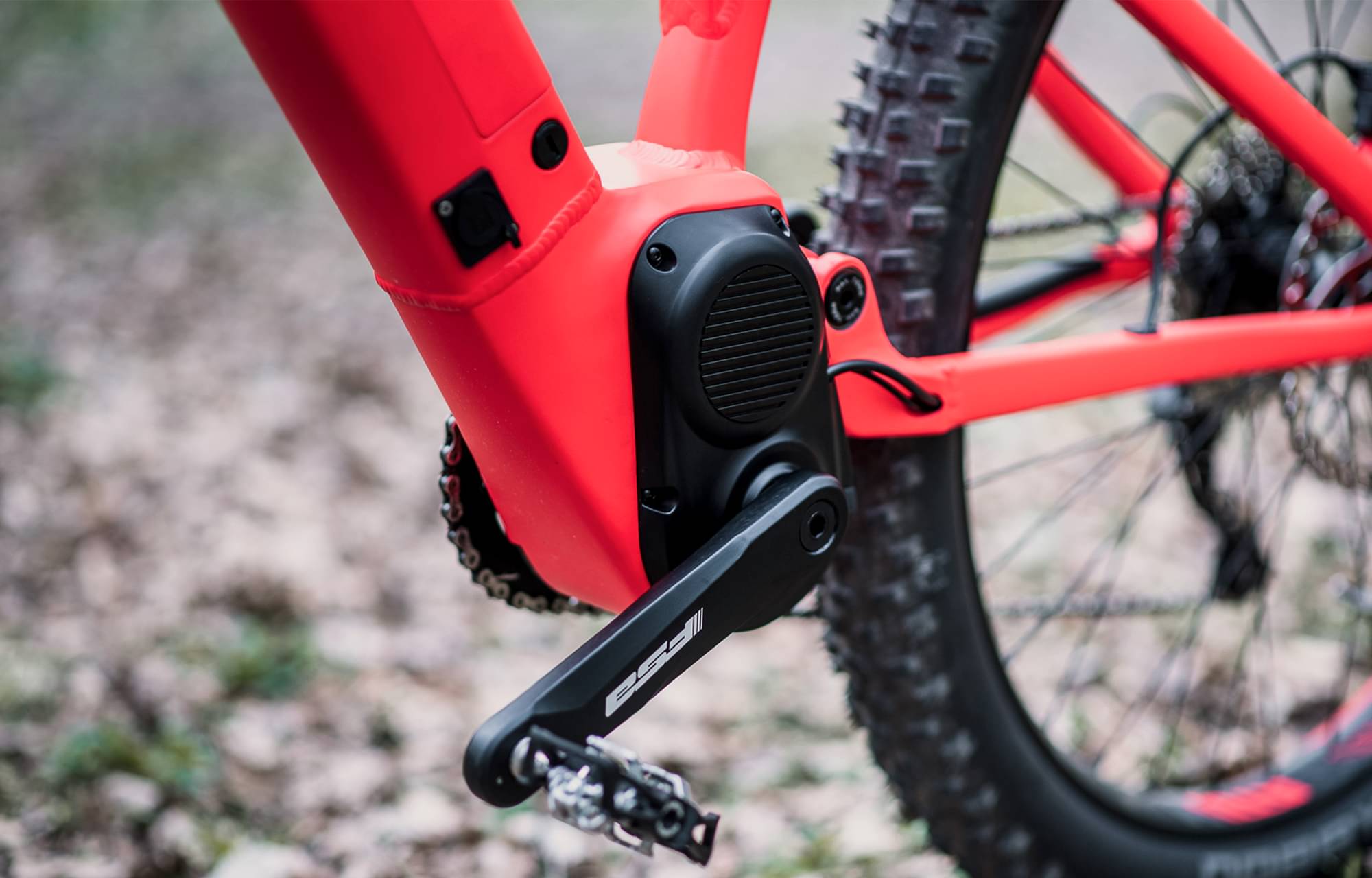

Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.45 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Stack | 647 mm | 652 mm | 657 mm |
| Reach | 413 mm | 433 mm | 453 mm |
| Top Tube Length | 590 mm | 611 mm | 633 mm |
| Seat Tube Angle | 74.7 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 730 mm | 752 mm | 774 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ATOM LYNX 8.1 is part of the Bh E Atom model. There are 32 e-bikes that carry this model name. You can easily view all of the Bh E Atom e-bikes models from 2023, here.
Model range prices
BH ATOM JET 2023 is the most affordable e-bike of this model and has a price of 2918$. On the other hand, BH ATOM LYNX 8.1 2023, is the most expensive and costs 4986$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 4986$. Comparing this to the average Trail e-bike price, we see that the price is 48.17% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The ATOM LYNX 8.1 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

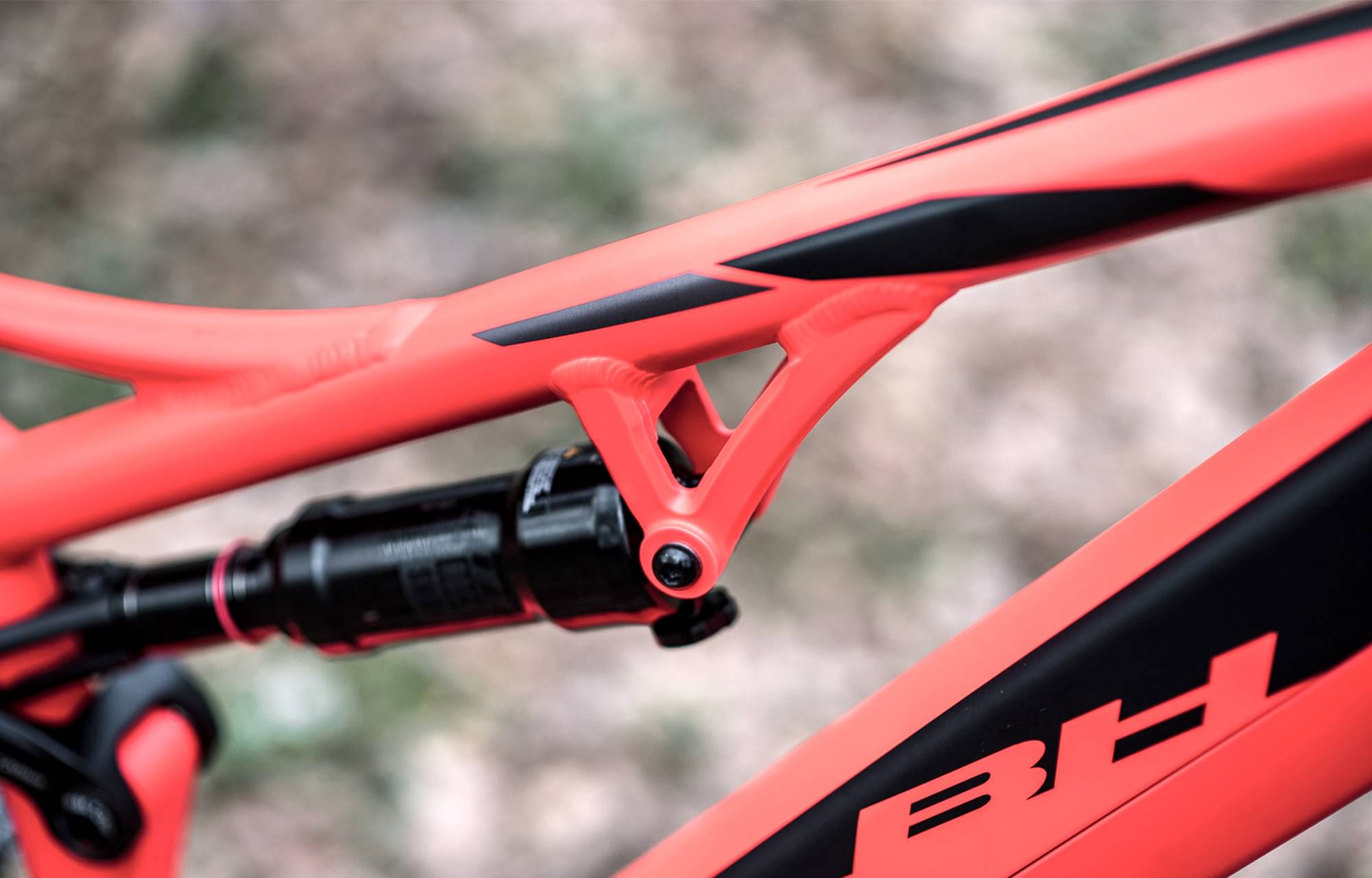

Rear Shock
The ATOM LYNX 8.1 has a rear shock with a travel of 140mm. The model Rock Shox Deluxe Debonair is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the ATOM LYNX 8.1 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
ATOM LYNX 8.1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
BH ATOM LYNX 8.1 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
