Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Hybrid Alloy 28" Internal Cable Routing
Suspension Fork
SR Suntour Mobie 32 NLO 100mm
Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Schwalbe Land Cruise 55-622
Brakes
Brakes
Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
Ergon GP10
Headset
Tapered
Seat
Saddle
Selle Royal Look In Atletic
Seatpost
Alloy suspension 31,6
Motor & Battery
Motor
TS System
Battery
720Wh
Remote
BH X Display Lite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | ME |
|---|---|---|---|
| Stack Reach Ratio | 1.686 mm | 1.586 mm | 1.498 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Stack | 671 mm | 671 mm | 671 mm |
| Reach | 398 mm | 423 mm | 448 mm |
| Top Tube Length | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 666 mm | 691 mm | 717 mm |
| Wheels | 700 | 700 | 700 |
About this model

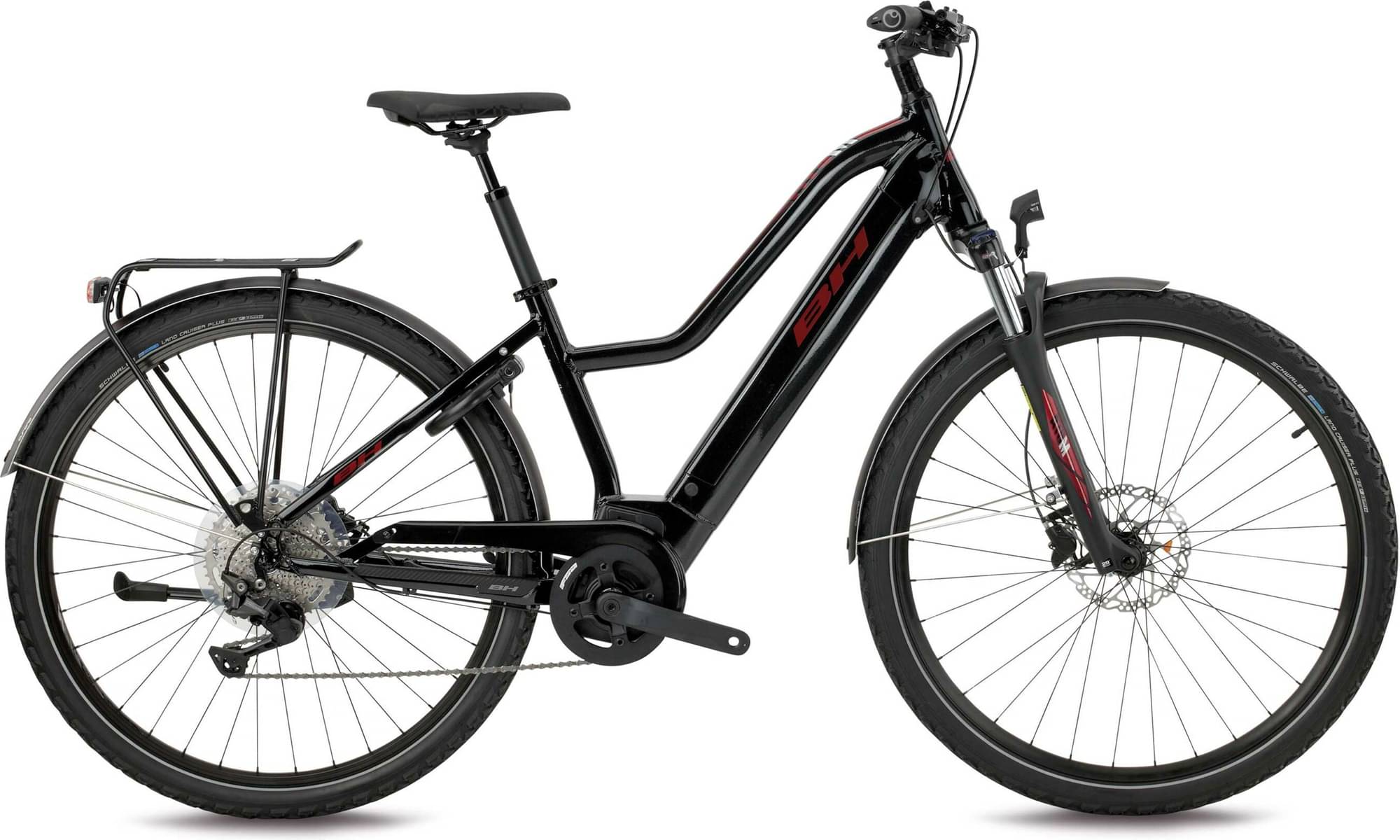

ATOM JET PRO belongs to the Bh E Atom model. BH launched 32 e-bikes of this model so far. Take a sneak peek at all Bh E Atom e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the BH ATOM JET 2022 has a starting price of 2918$. BH ATOM LYNX 8.2 2022 on the other hand is the most expensive at 5594$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 3891$. Comparing the average cost of a Hybrid e-bike to this one, you will see that ATOM JET PRO price is 56.9% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The ATOM JET PRO 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ATOM JET PRO has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
