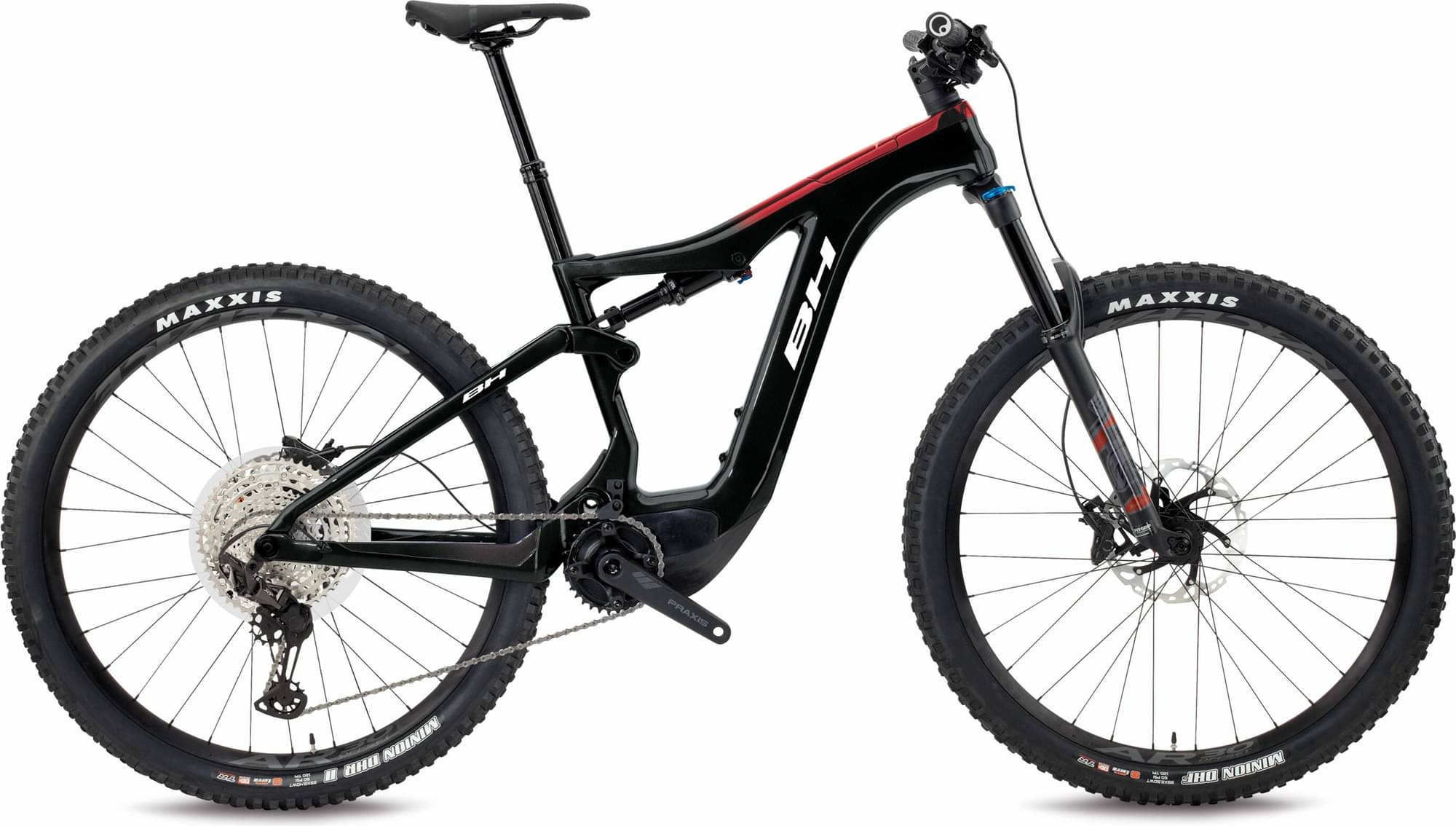

BH ATOMX LYNX CARBON PRO 8.7 2022
2022 E-bike
Estimate price |
9,212$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140mm Full Susp. Carbon29" Internal Cable Routing, Acros ICR
Suspension Fork
FOX 34 FLOAT Rhythm 140mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
Brakes
Brakes
Shimano MT520 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIF-543 ICR BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Remote
BH i-Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 610 mm | 614 mm | 623 mm | 637 mm |
| Reach | 435 mm | 462 mm | 482 mm | 497 mm |
| Top Tube Length | 574 mm | 602 mm | 624 mm | 642 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 737 mm | 765 mm | 790 mm | 811 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ATOMX LYNX CARBON PRO 8.7 is part of the Bh E Atomx model. BH released 58 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BH ATOMX PRO 2022 is the most affordable e-bike of this model and has a price of 5229$. On the other hand, BH ATOMX LYNX CARBON PRO 9.9 2022, is the most expensive and costs 10703$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8270$. Comparing this to the average Trail e-bike price, we see that the price is 145.77% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The ATOMX LYNX CARBON PRO 8.7 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX FLOAT DPS Performance rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The ATOMX LYNX CARBON PRO 8.7 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ATOMX LYNX CARBON PRO 8.7 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BH ATOMX LYNX CARBON PRO 8.7 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
BH ATOMX LYNX CARBON PRO 8.7 comes with a dropper post. Therefore, climbing or descending will be a breeze.
