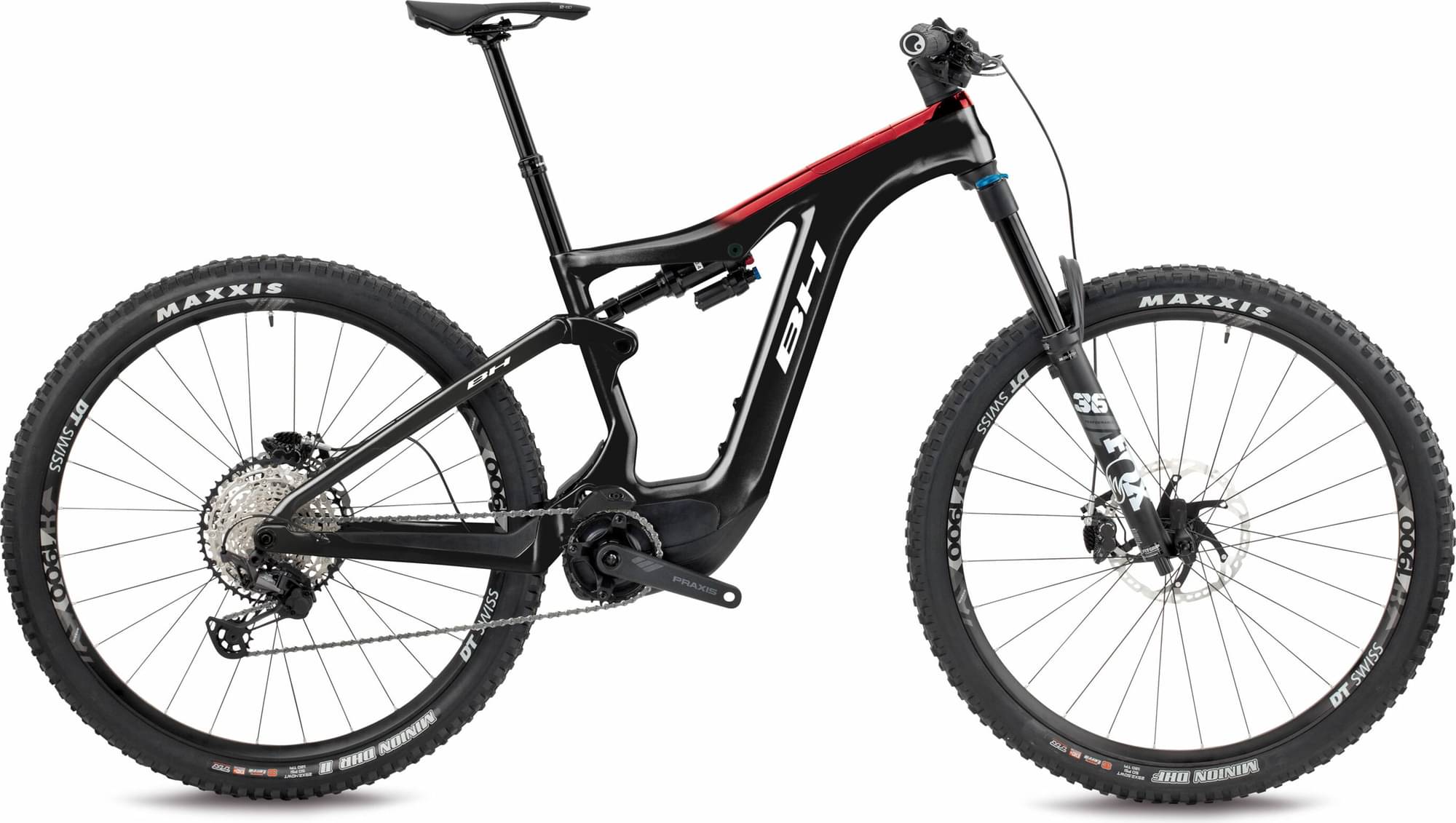

BH ATOMX LYNX CARBON PRO 9.8 2022
2022 E-bike
Estimate price |
10,431$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm Full Susp. Carbon29" Internal Cable Routing, Acros ICR
Suspension Fork
FOX 36 FLOAT Performance 160mm 15QR
Rear Shock
FOX FLOAT X Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano CSM7100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss H1900 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
Brakes
Brakes
Shimano XT 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIF-543 ICR BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Remote
BH i-Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 628 mm | 632 mm | 641 mm | 655 mm |
| Reach | 430 mm | 457 mm | 477 mm | 492 mm |
| Top Tube Length | 577 mm | 605 mm | 627 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 746 mm | 774 mm | 797 mm | 820 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ATOMX LYNX CARBON PRO 9.8 is a Bh E Atomx model. There are 58 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BH ATOMX PRO 2022 is the most economical model, with a starting price of 5229$. BH ATOMX LYNX CARBON PRO 9.9 2022 on the other hand costs 10703$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9365$. Doing a quick comparison, we notice that ATOMX LYNX CARBON PRO 9.8 price is 95.72% higher than the average cost of an Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ATOMX LYNX CARBON PRO 9.8 components
Fork
BH ATOMX LYNX CARBON PRO 9.8 2022 e-bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT X Performance, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The ATOMX LYNX CARBON PRO 9.8 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
ATOMX LYNX CARBON PRO 9.8 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the ATOMX LYNX CARBON PRO 9.8. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
