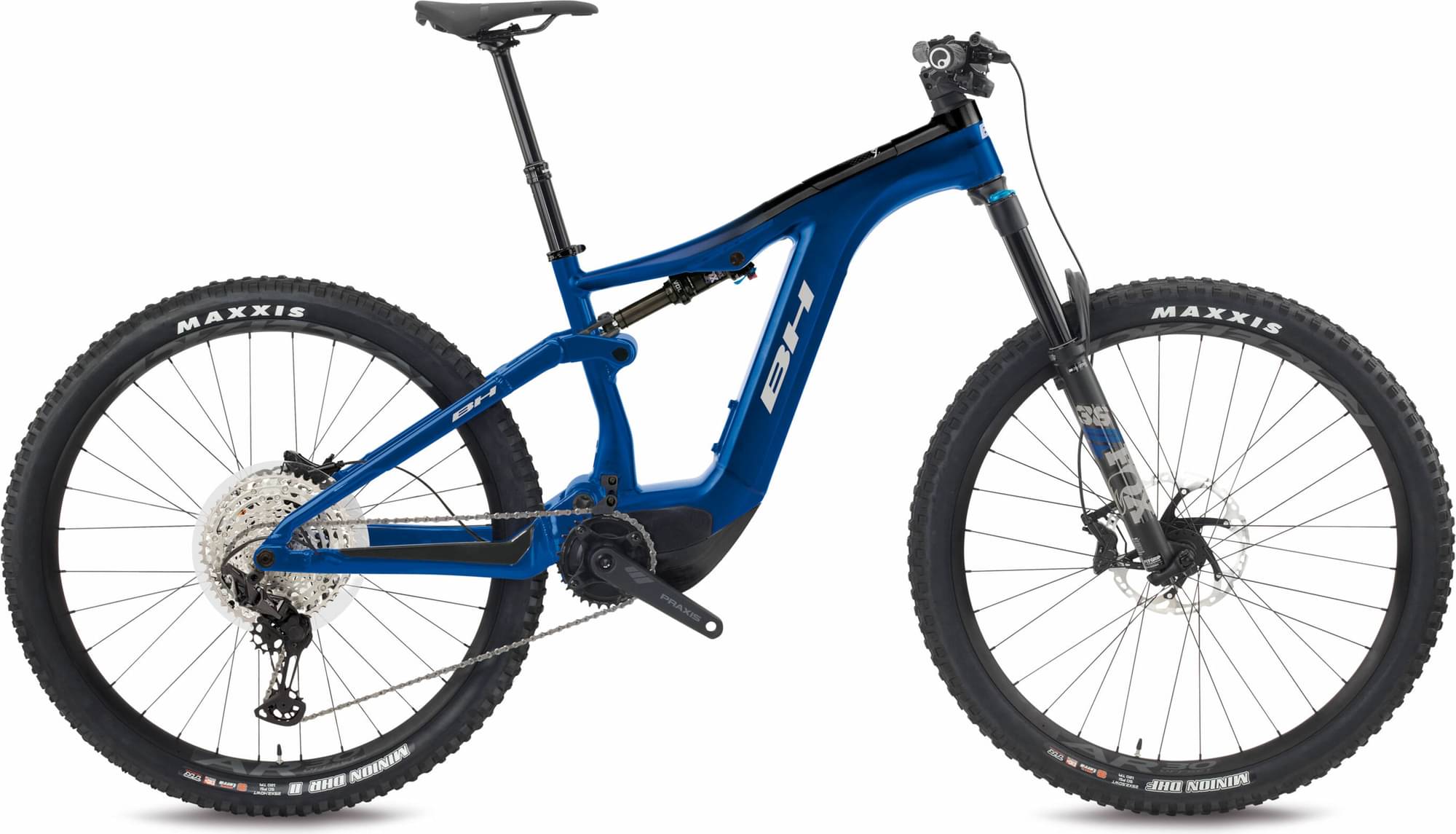

BH ATOMX LYNX PRO 9.0 2022
2022 E-bike
Estimate price |
8,941$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm Full Susp. Carbon 29" Internal Cable Routing, Acros ICR / Alloy Rear Triangle
Suspension Fork
FOX 36 FLOAT Performance 160mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
Brakes
Brakes
Shimano MT520 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
BH Lite 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Remote
BH i-Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 614 mm | 618 mm | 627 mm | 641 mm |
| Reach | 416 mm | 443 mm | 463 mm | 478 mm |
| Top Tube Length | 563 mm | 591 mm | 613 mm | 631 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 125 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 732 mm | 760 mm | 783 mm | 806 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ATOMX LYNX PRO 9.0 completes the Bh E Atomx model. BH launched 58 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BH ATOMX PRO 2022 is the cheapest e-bike model and costs 5229$. BH ATOMX LYNX CARBON PRO 9.9 2022 is the most expensive one and costs 10703$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 8027$. If we compare this with the average Enduro e-bike cost we notice that the price is 67.75% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ATOMX LYNX PRO 9.0 components
Fork
The ATOMX LYNX PRO 9.0 comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The ATOMX LYNX PRO 9.0 has a rear shock with a travel of 160mm. The model FOX FLOAT DPS Performance is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, BH ATOMX LYNX PRO 9.0 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The ATOMX LYNX PRO 9.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
