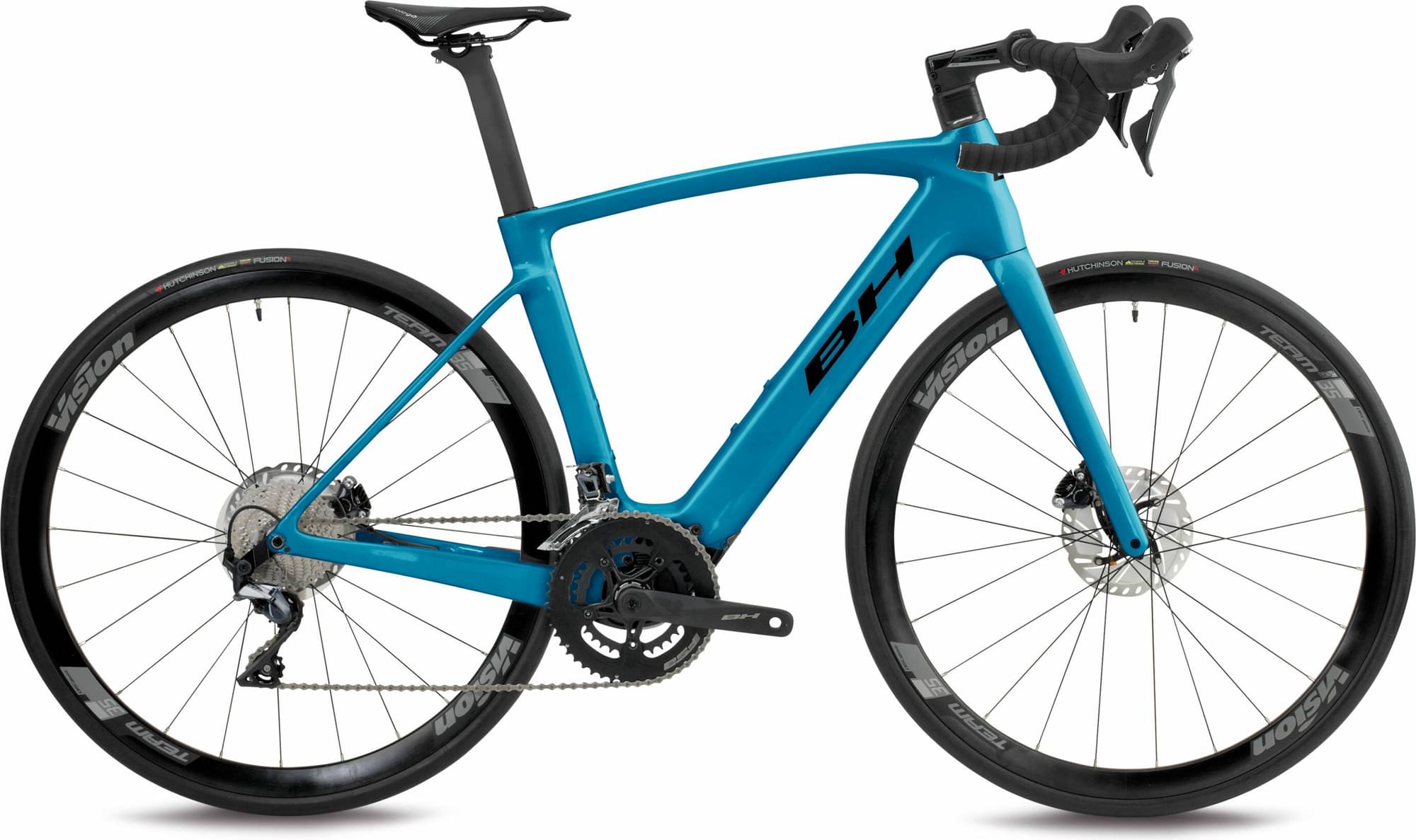

BH CORE RACE CARBON 1.6 2022
2022 E-bike
Estimate price |
7,761$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Race Carbon 28" Internal Cable Routing, ACR Carbon Monocoque
Suspension Fork
BH Race Carbon ACR
Drivetrain
Rear Derailleur
Shimano Ultegra 11sp
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11sp (11-34T)
Crank
FSA 52/36T
Bottom Bracket
-
Chain
Shimano HG70
Pedals
-
Wheels
Front Hub
FSA
Rear Hub
FSA
Rims
FSA Team 35 TR
Spokes
Stainless Steel
Tires
Hutchinson Fusion 5 700X28
Brakes
Brakes
Shimano Ultegra 160mm
Cockpit
Stem
BH Lite Ahead
Handlebar
FSA SLK Compact Carbon
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Stn
Seatpost
BH Aero
Motor & Battery
Motor
NR System
Battery
540Wh
Remote
BH Core Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.44 mm |
| Stack | 541 mm | 559 mm | 575 mm |
| Reach | 380 mm | 390 mm | 400 mm |
| Top Tube Length | 539 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 470 mm | 500 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° |
| Head Tube Length | 145 mm | 160 mm | 170 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 590 mm | 595 mm | 606 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CORE RACE CARBON 1.6 is a Bh E Core model. 33 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
BH CORE CITY WAVE 2022 is the cheapest e-bike model and costs 3283$. BH CORE RACE CARBON PRO 1.8 2022 is the most expensive one and costs 8878$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race e-bikes
According to our math, the average price for a trustworthy Race e-bike is 4156$. However, even though the average price of a Race e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When BH released this model in 2022, its price was 7054$. Comparing the average cost of a Race e-bike to this one, you will see that CORE RACE CARBON 1.6 price is 69.73% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, BH CORE RACE CARBON 1.6 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CORE RACE CARBON 1.6 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
CORE RACE CARBON 1.6 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
