Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

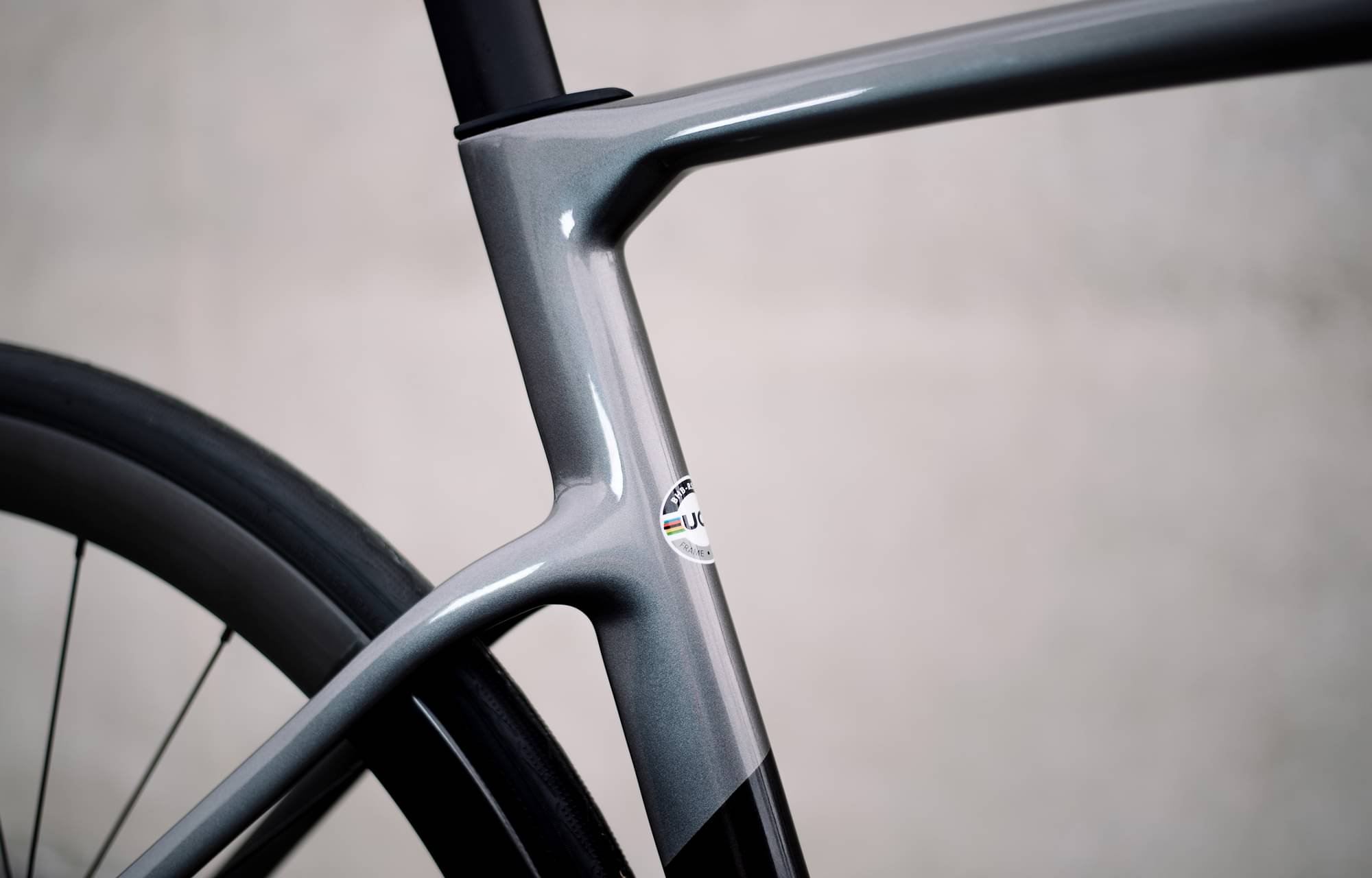

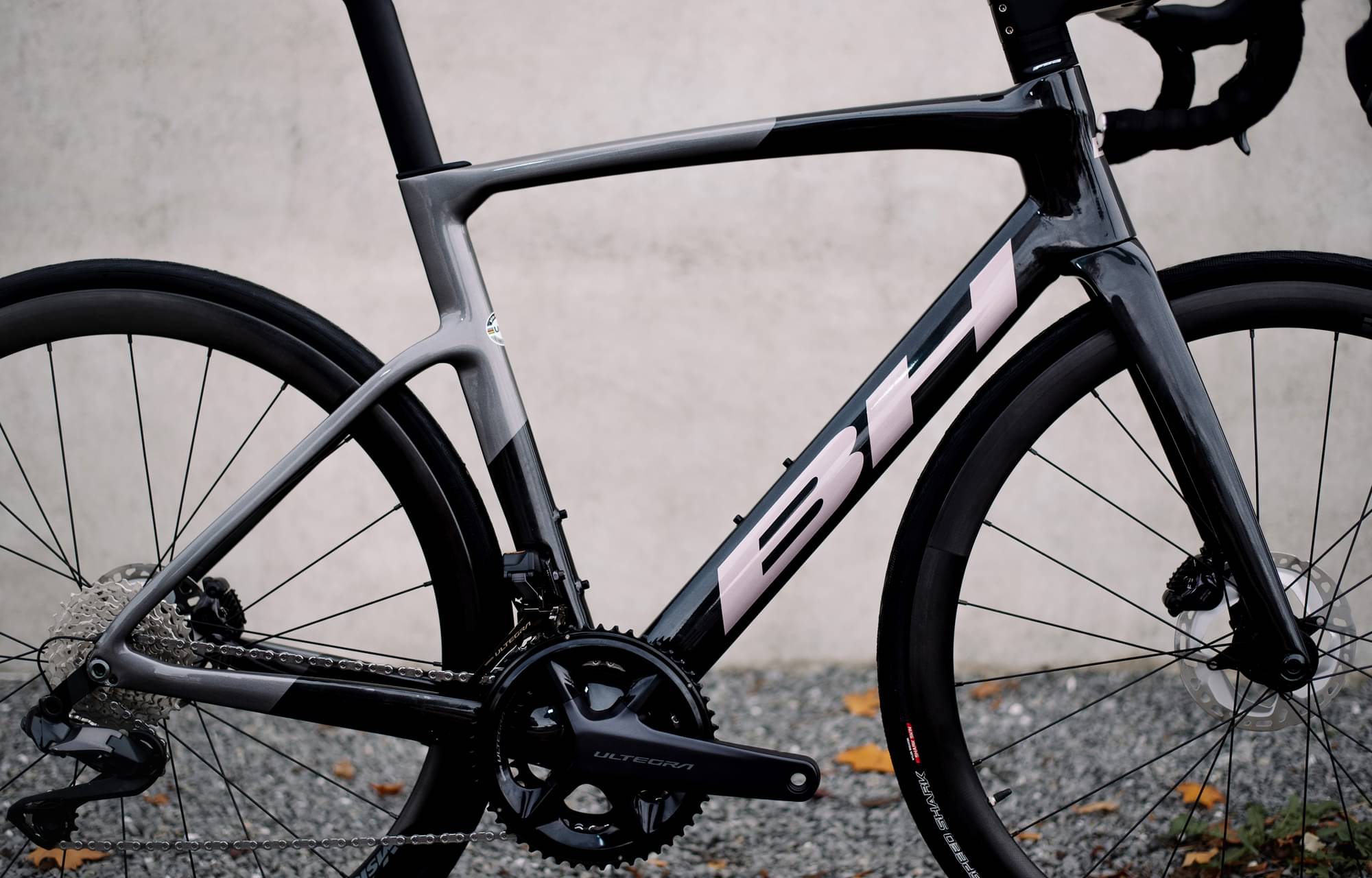

Frame
Frame
RS1 Disc ACR Monocoque, PC Layup
Suspension Fork
RS1 Disc Full Integrated Tapeder, Full Carbon 1.5

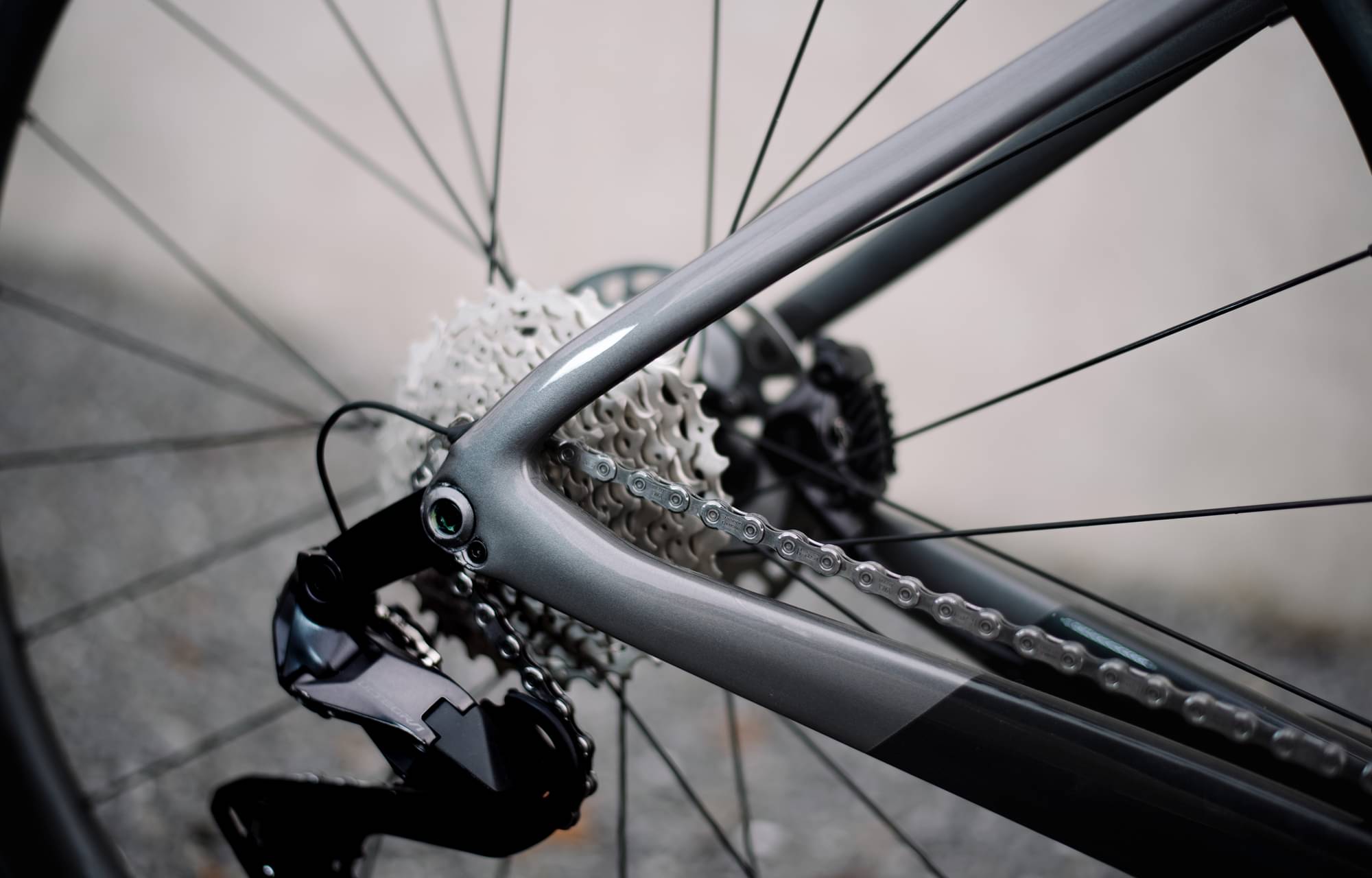

Drivetrain
Rear Derailleur
Shimano 105 24sp
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 Hydraulic
Cassette
Shimano 105 11/34
Crank
Shimano 105 50/34, X, Crank set, Shimano 105 50/34, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano 105
Wheels
Rims
Vision Team35
Tires
BH 700x28
Brakes
Brakes
Front: Shimano 105 hydraulic, Rear: Shimano 105 hydraulic
Cockpit
Stem
FSA NS ACR, X, Stem, FSA NS ACR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
FSA Energy ACR Compact, X, Handlebar, FSA Energy ACR Compact, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm

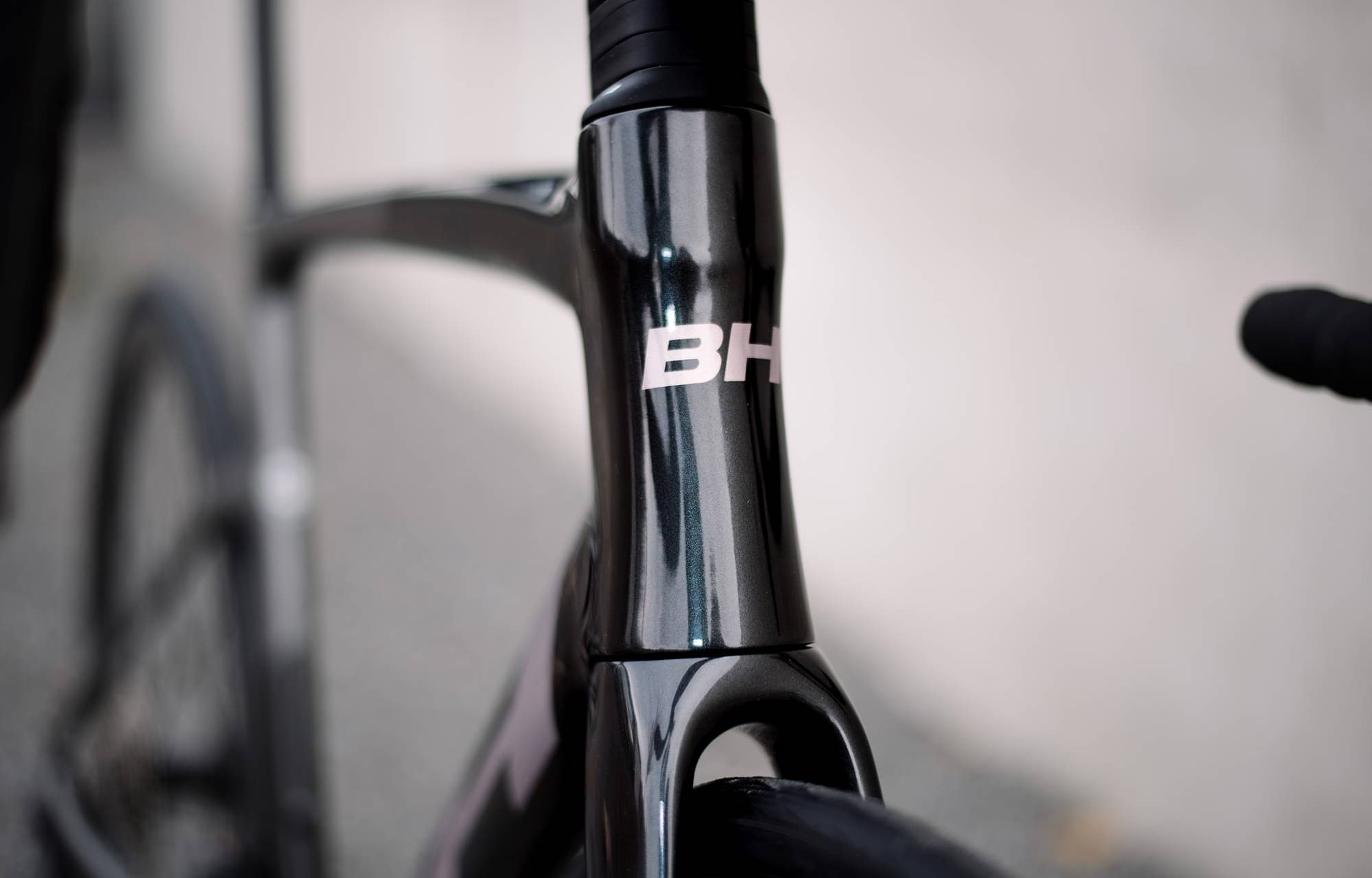

Headset
FSA ACR
Seat
Saddle
San Marco Monza
Seatpost
RS1 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Top Tube Length | 508 mm | 523 mm | 537 mm | 553 mm | 568 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 404 mm | 404 mm | 407 mm | 407 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

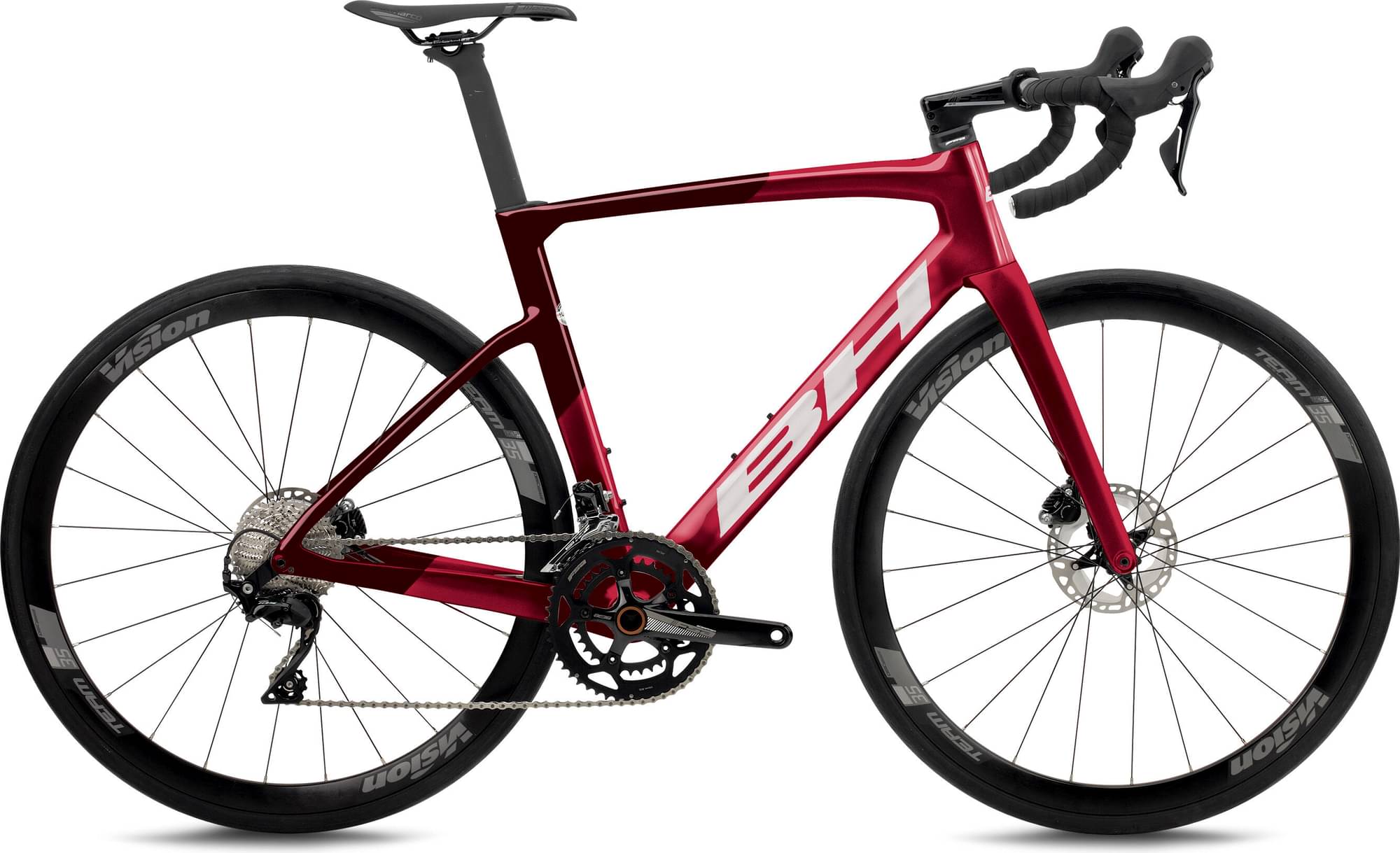

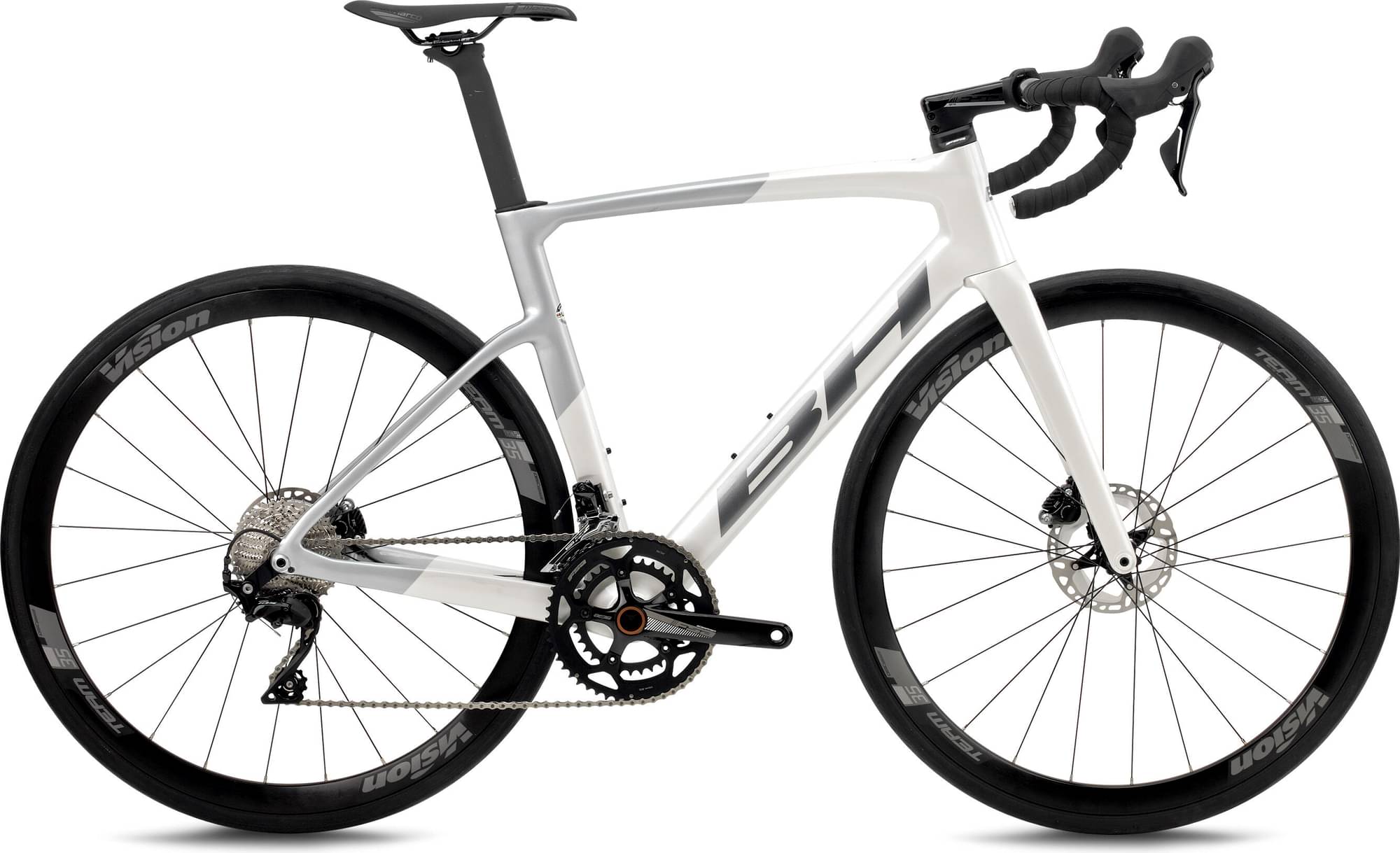

About this model
RS1 3.0 is a Bh Rs1 model. BH released 10 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH RS1 3.0 2023 is the most affordable bike of this model and has a price of 3891$. On the other hand, BH RS1 5.0 2023, is the most expensive and costs 7297$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When BH released this model in 2023, its price was 3891$. Doing a quick comparison, we notice that RS1 3.0 price is 16.15% higher than the average cost of a Race bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The RS1 3.0 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

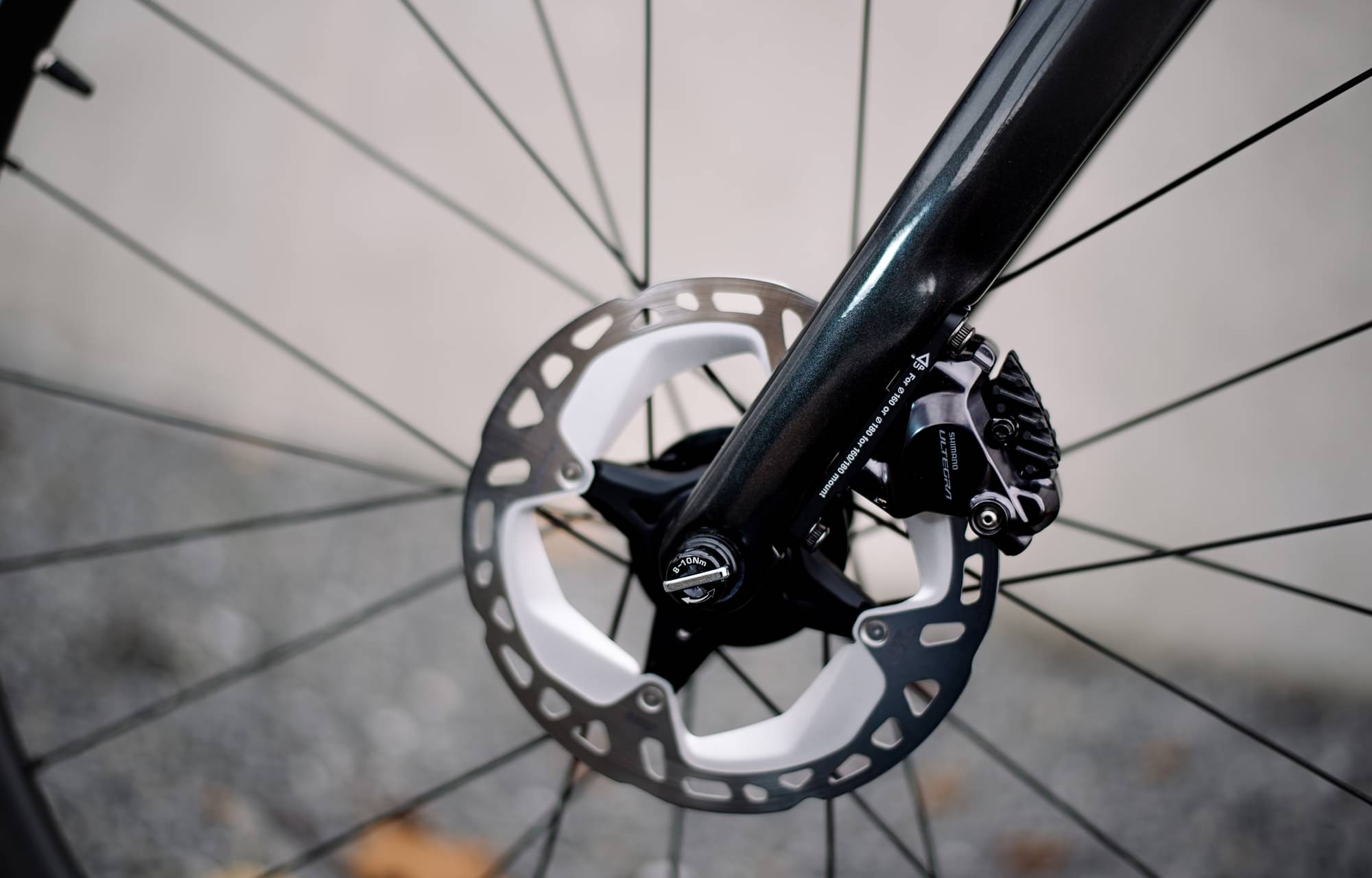

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RS1 3.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
