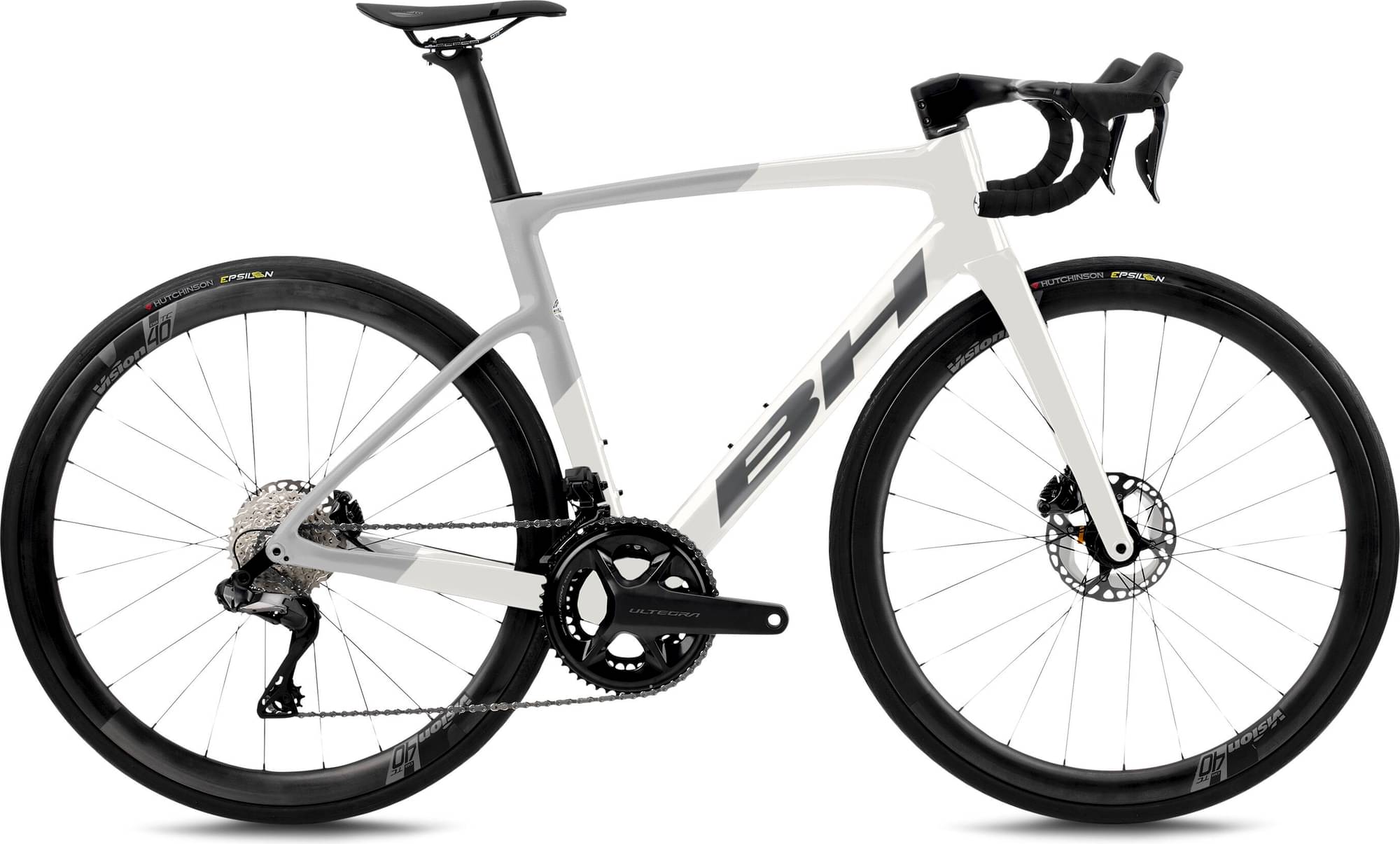

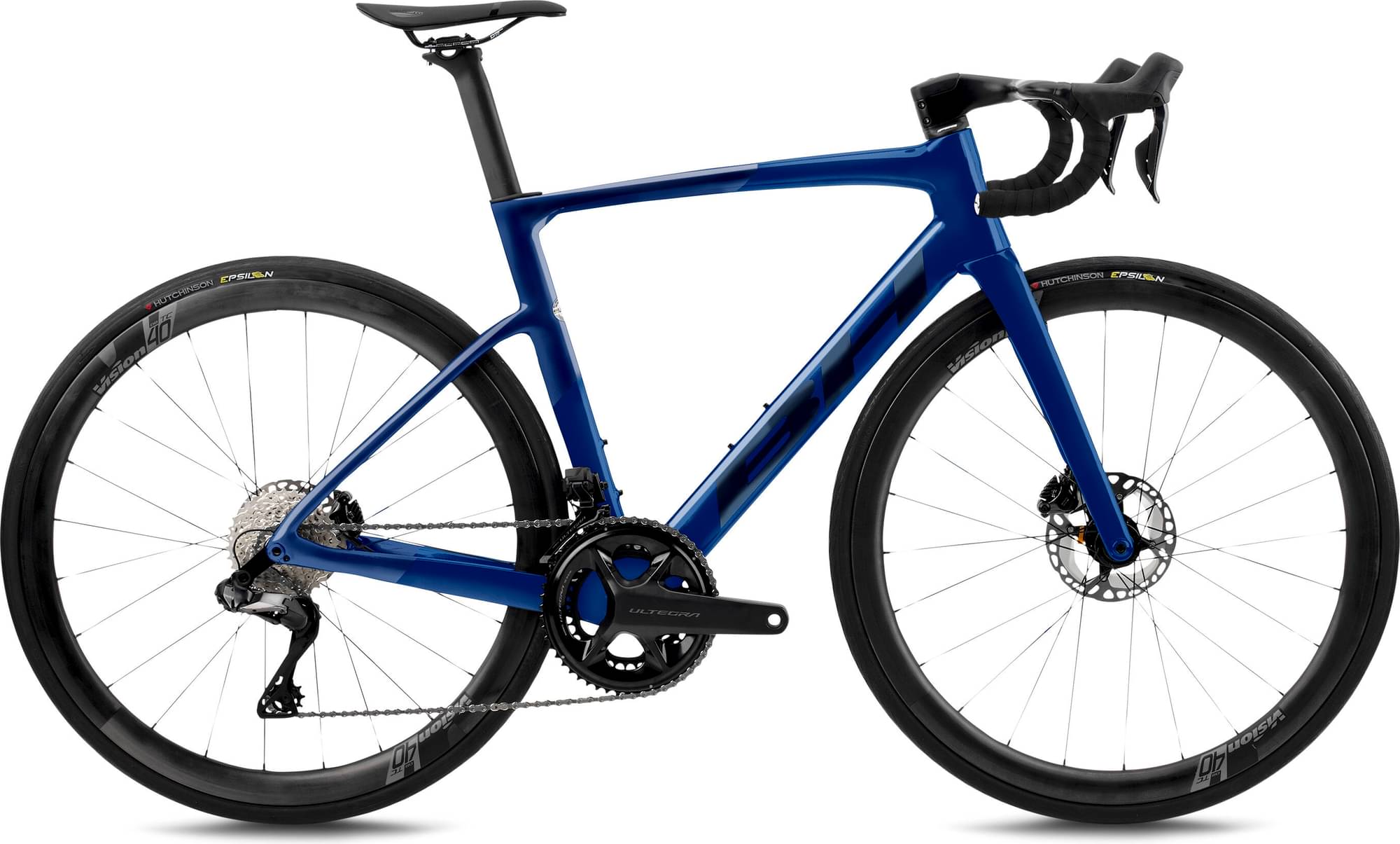

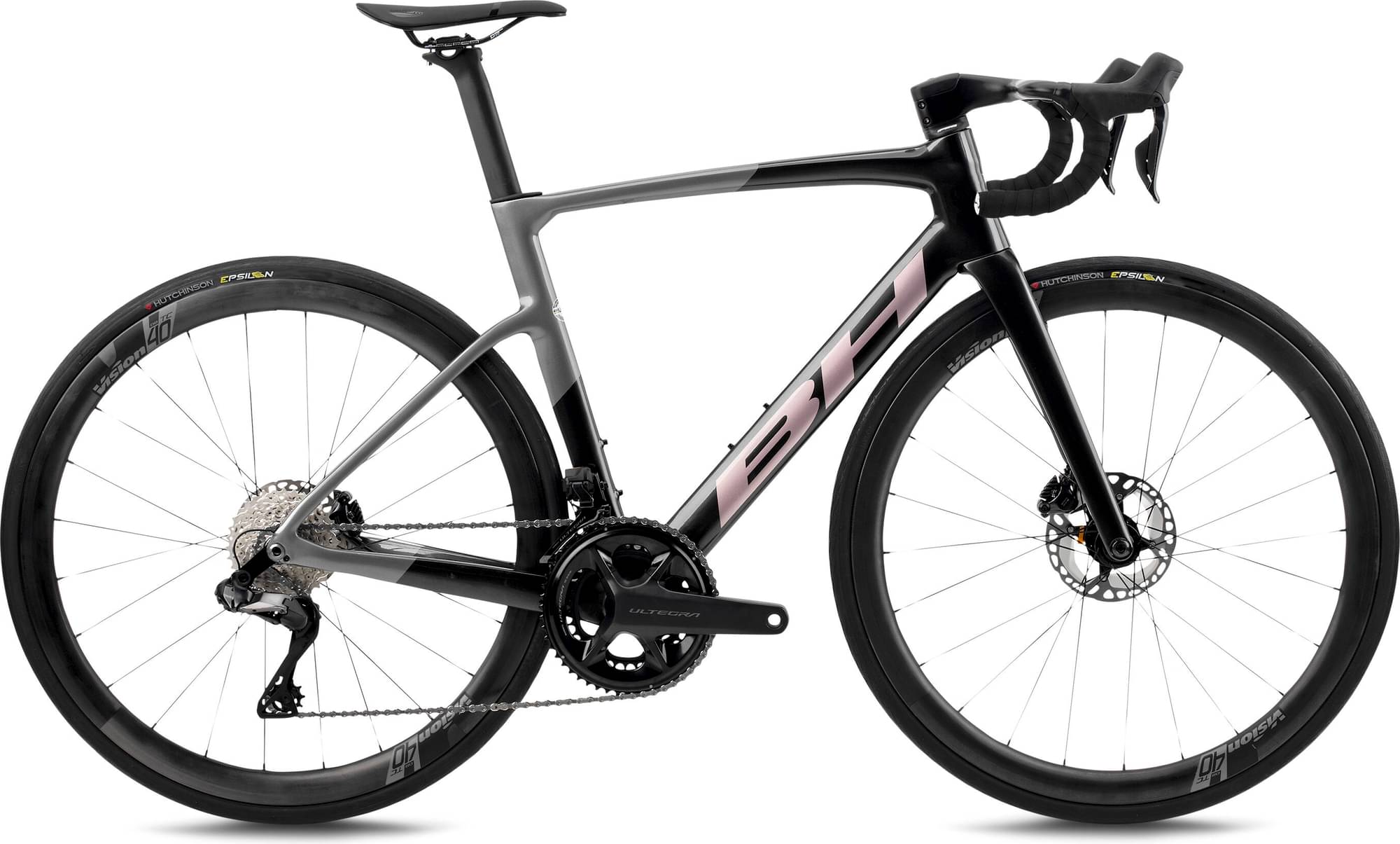

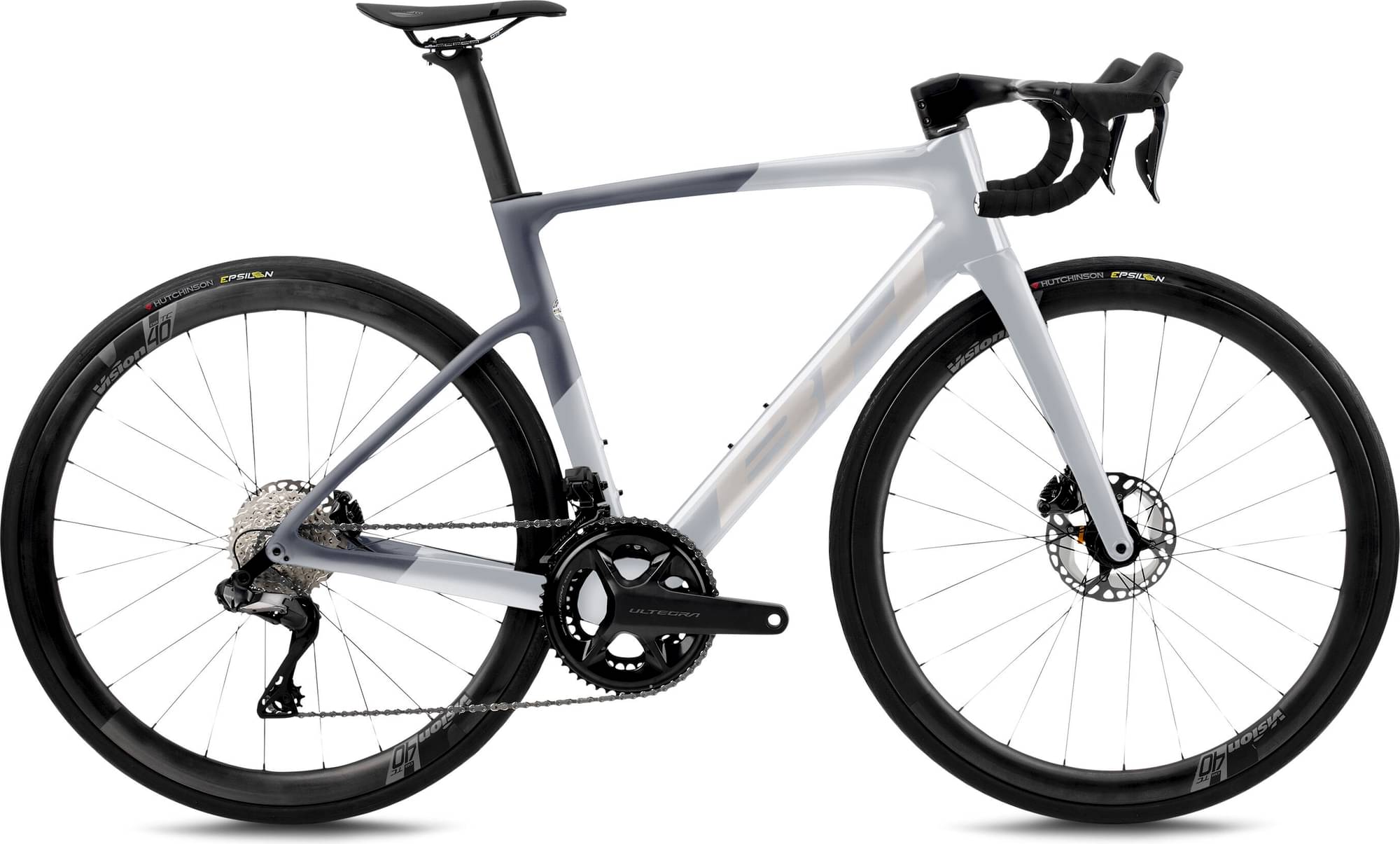

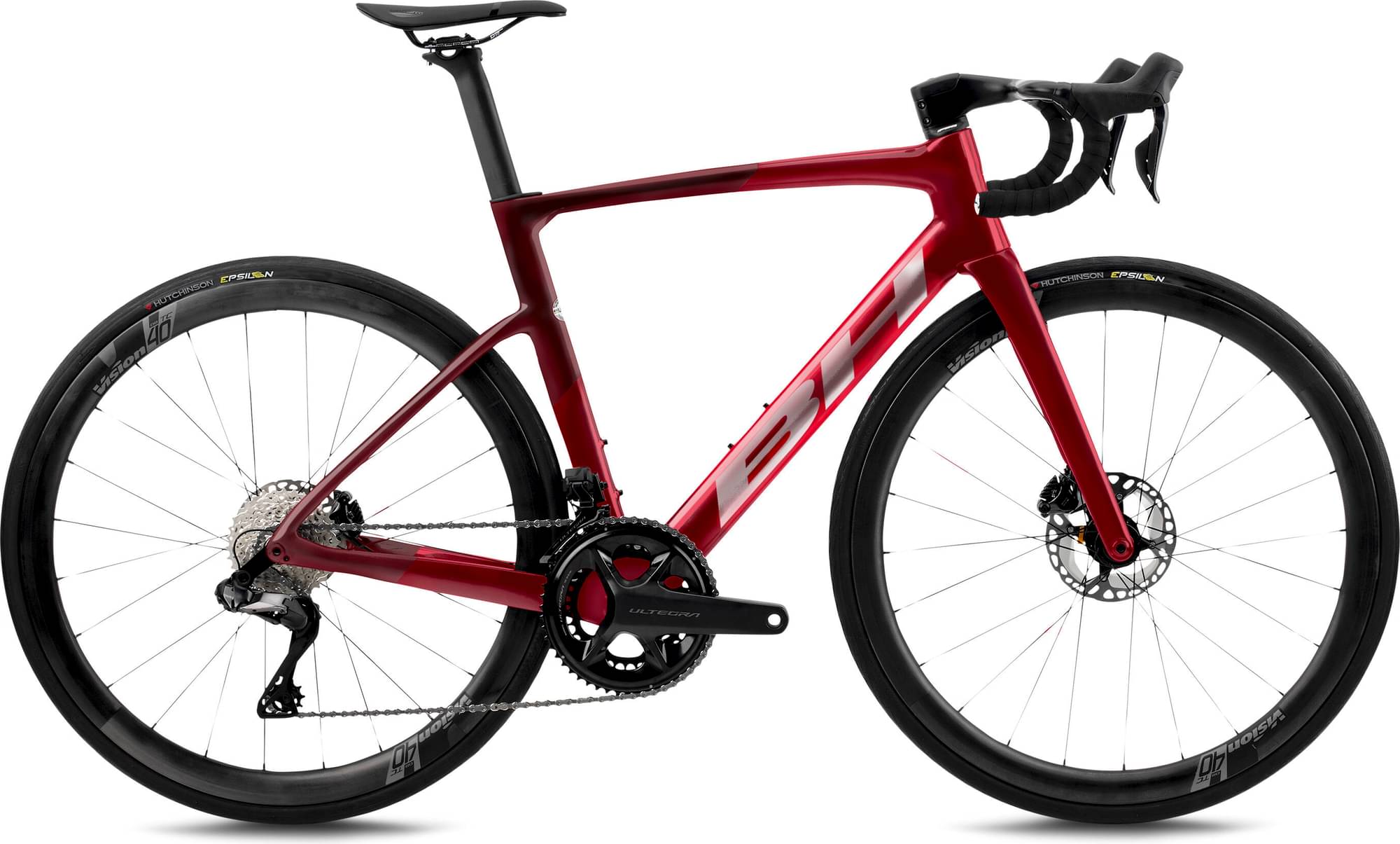

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

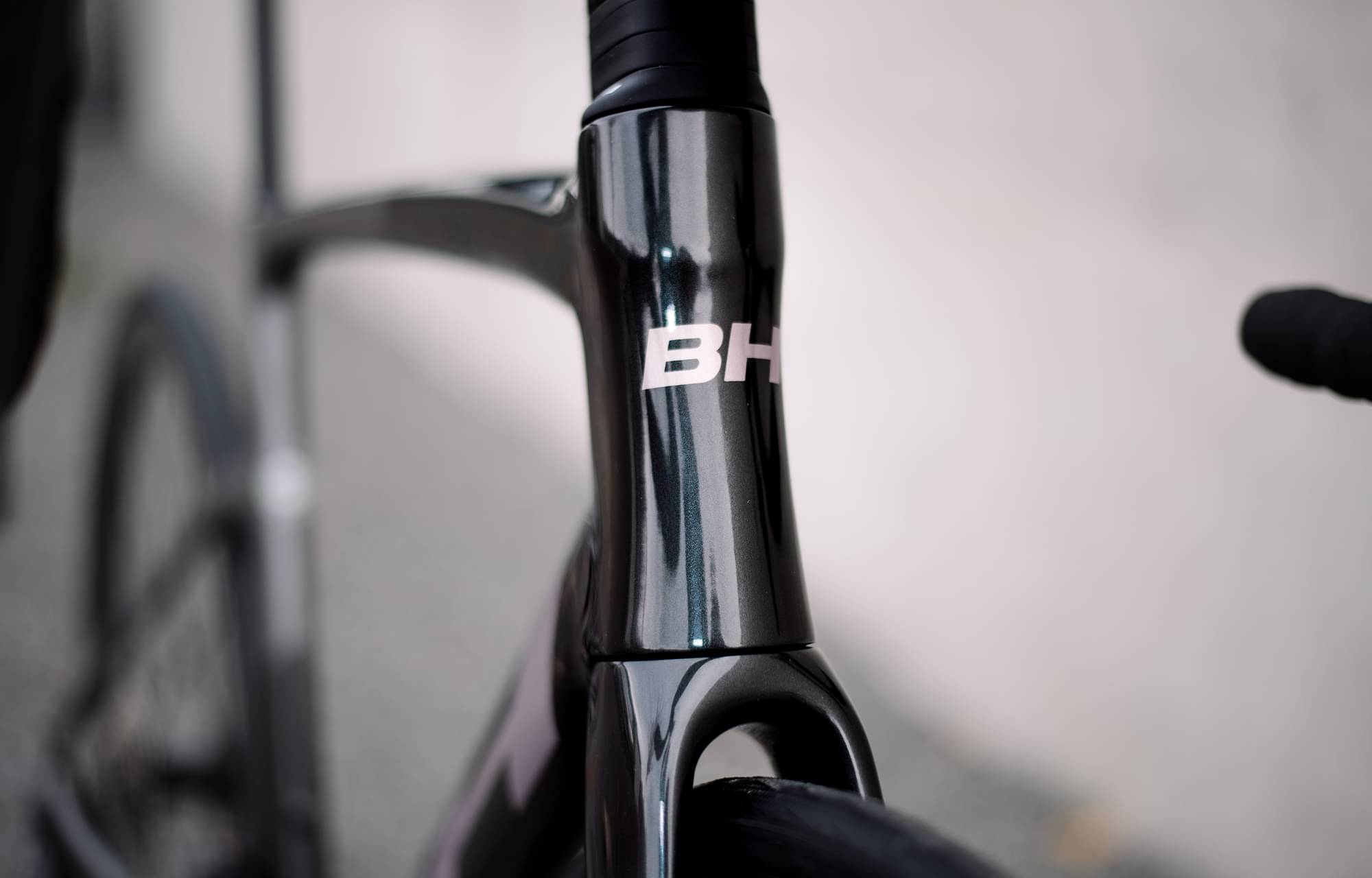

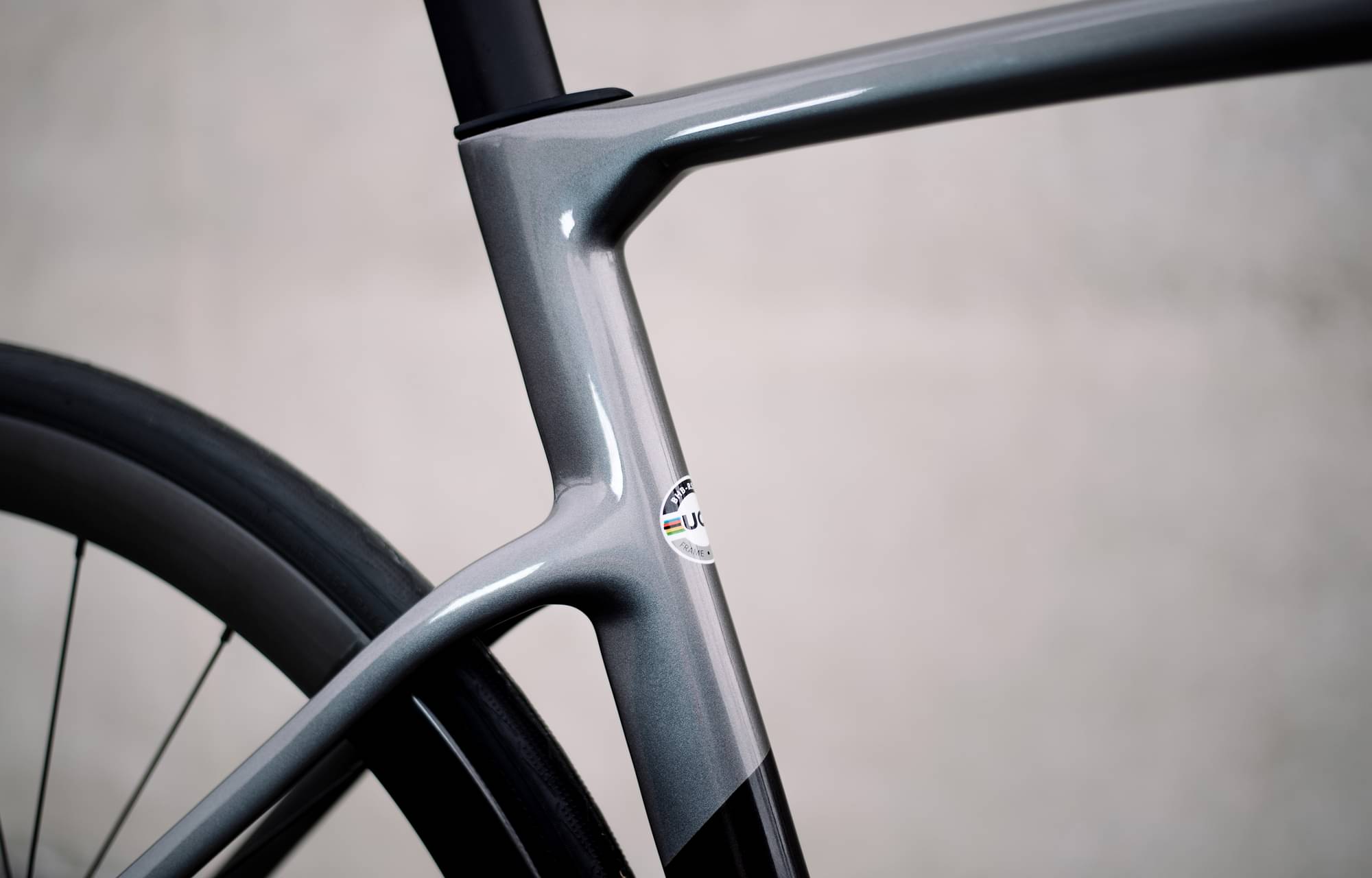

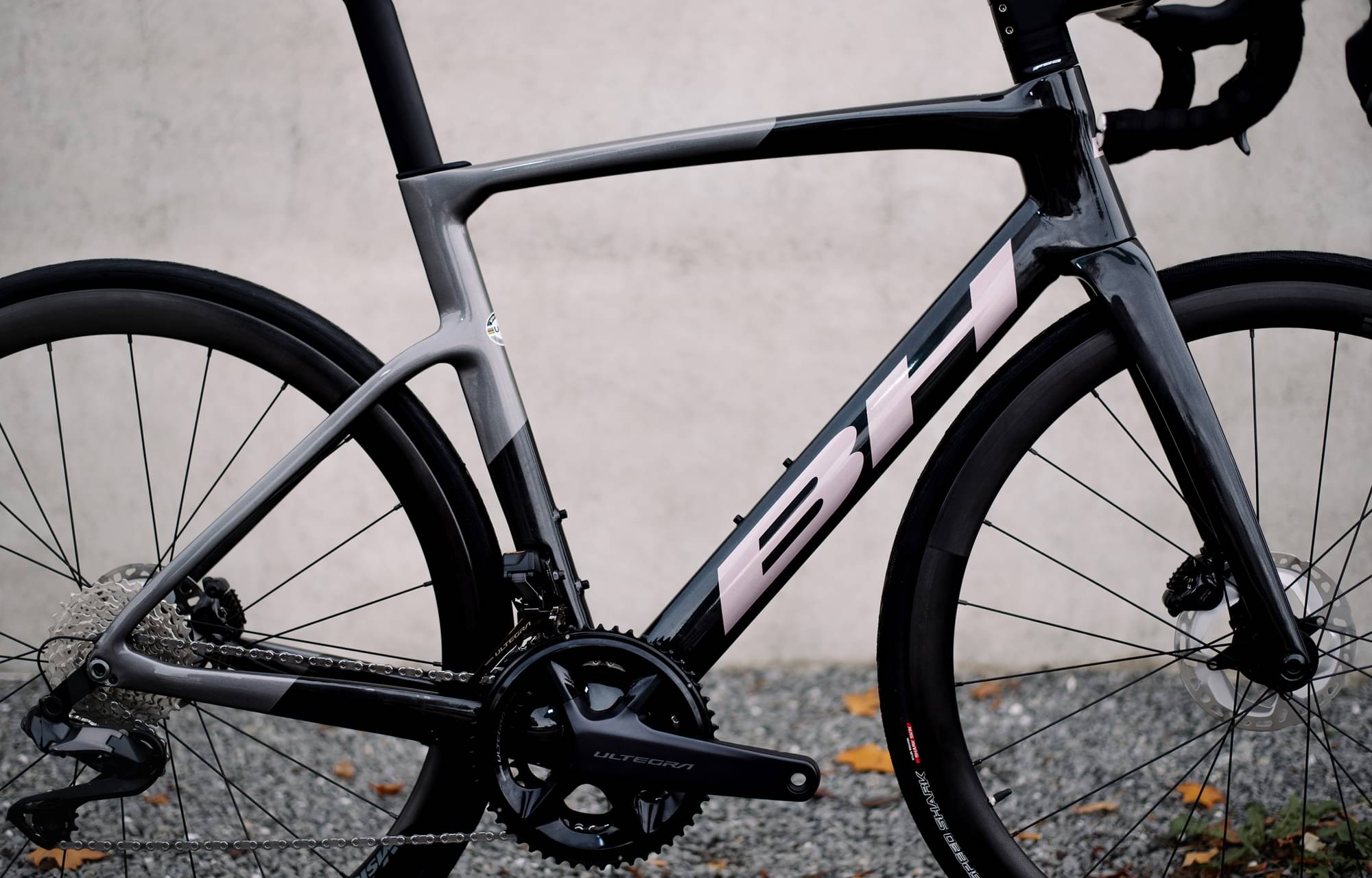

Frame
Frame
RS1 Disc ACR Monocoque, PC Layup
Suspension Fork
RS1 Disc Full Integrated Tapeder, Full Carbon 1.5

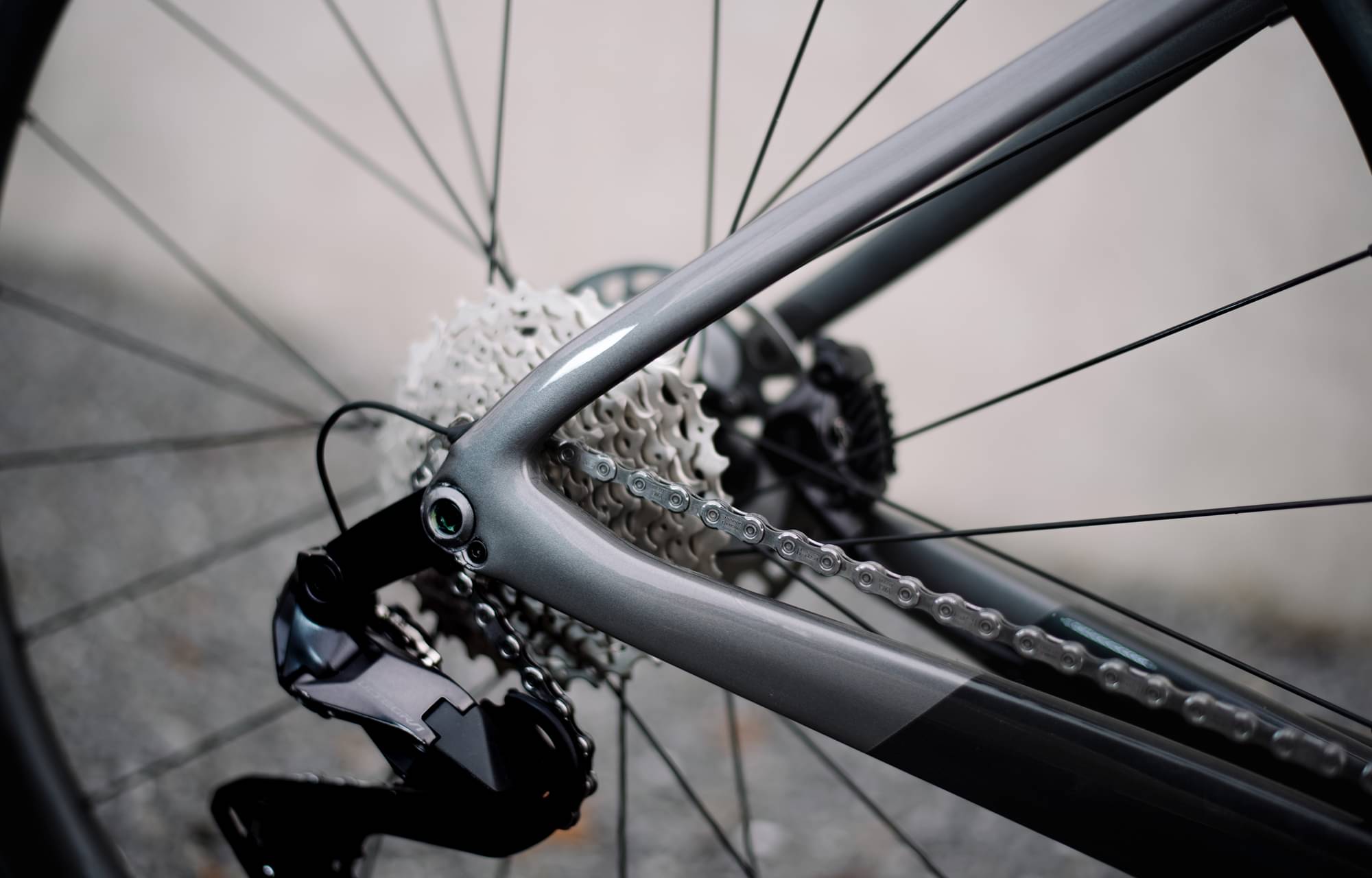

Drivetrain
Rear Derailleur
Shimano Ultegra DI2 12sp
Front Derailleur
Shimano Ultegra DI2
Shift Levers
Shimano Ultegra DI2 Hydra
Cassette
Shimano Ultegra 11/34
Crank
Shimano Ultegra 52/36, X, Crank set, Shimano Ultegra 52/36, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano Ultegra
Wheels
Rims
Vision TC40
Tires
Hutchinson Epsilon 700x 28

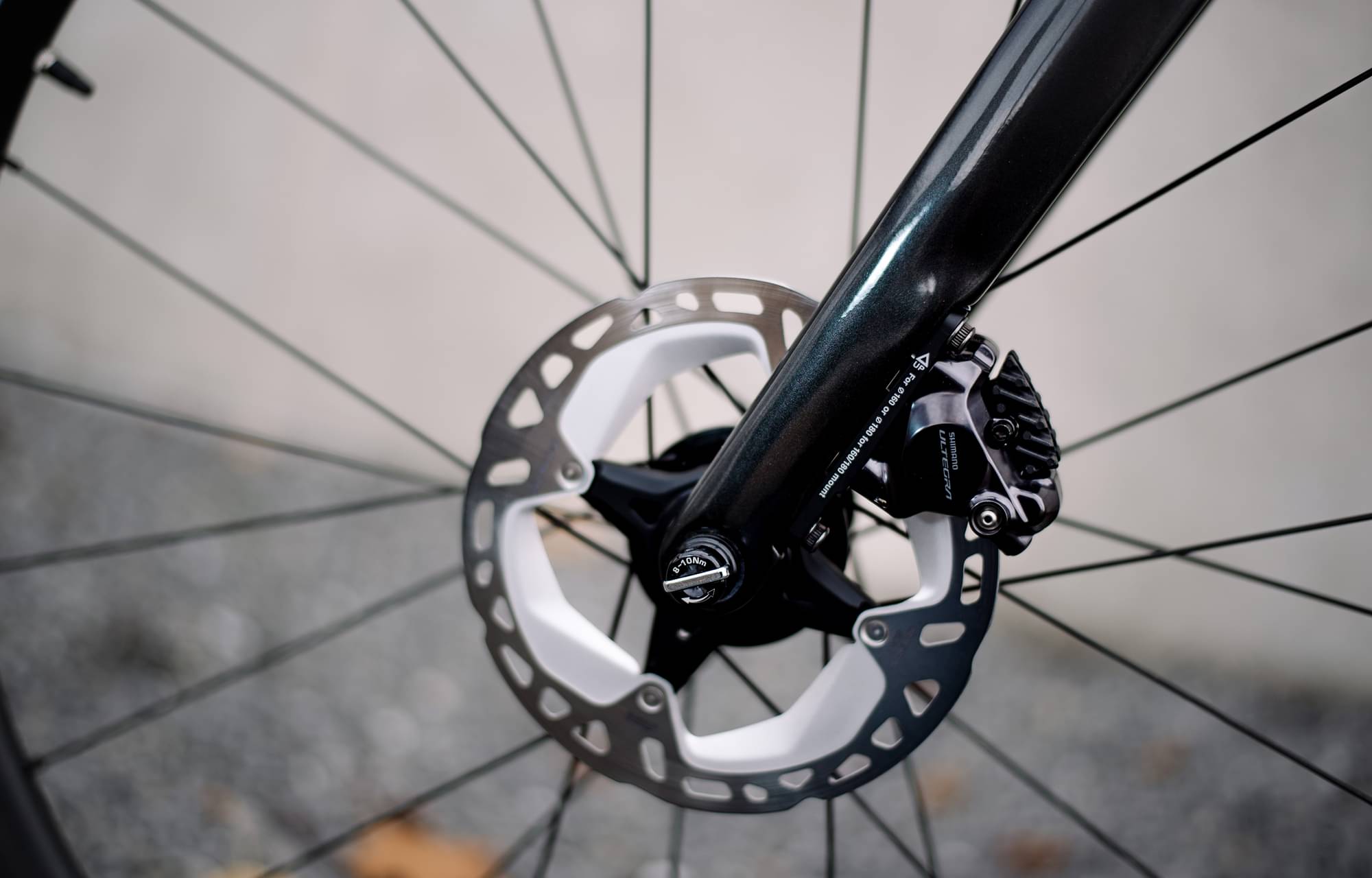

Brakes
Brakes
Front: Shimano Ultegra hydraulic, Rear: Shimano Ultegra hydraulic
Cockpit
Stem
EVO Monocoque ACR, X, Stem, EVO Monocoque ACR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
EVO Monocoque ACR, X, Handlebar, EVO Monocoque ACR, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm
Headset
FSA ACR
Seat
Saddle
Prologo Dimension
Seatpost
RS1 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Top Tube Length | 508 mm | 523 mm | 537 mm | 553 mm | 568 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 404 mm | 404 mm | 407 mm | 407 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
RS1 5.0 belongs to the Bh Rs1 model. There are 10 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH RS1 3.0 2023 is the most economical model, with a starting price of 3891$. BH RS1 5.0 2023 on the other hand costs 7297$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When BH released this model in 2023, its price was 7297$. Comparing this to the average Race bike price, we see that the price is 117.82% higher.
Overview of components
Fork material
RS1 5.0 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on RS1 5.0 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RS1 5.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
BH RS1 5.0 bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
