Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset GX Eagle AXS, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 750wh integrated battery, w/Kiox display -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC FX-Type Pro FULL SUSPENDED CARBON sizes: 43-48-53 - 160 mm front travel - 160mm rear travel - HT 1,5"" tapered - Seatpost 31,6 mm - 12x148 mm dropouts - Set dropout (sx+dx) TA 148mm external derailleur + SRAM UDH
Suspension Fork
Fox, 38, A, FLOAT, 29in, P-S, 160, Grip, 3Pos, 15QRx110, 1.5 T, 58HT, 44mm Rake
Rear Shock
Fox, FLOAT X2, 230, 65, 0.3 Spacer x2, CL001, ECR010, Rezi CM
Drivetrain
Rear Derailleur
SRAM RD GX1 AXS LUNAR WITH BATTERY COVER
Shift Levers
SRAM EC GX AXS EAGLE RH 2BUTTON MMX
Crank
SRAM EAGLE 34T BOSCH GN4 DM ST EMTB B148 CK-320 FSA E-Bike Diecast Crankset - ISIS / 165mm / w/o crank bolt
Bottom Bracket
included in the motor
Chain
SRAM CN GX EAGLE 126LI PWR.LCK 12sp
Wheels
Rear Hub
Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, FOR SRAM XD DRIVER 11-SPEED, 4 SB, 32h
Rims
Velomann, 30mm 29”, 489g, 32 hole drilling, Disc Only, PV drilled Sleeved Joint
Tires
Vittoria e-Barzo 29x2.6 XC-Trail
Brakes
Brakes
MT7 (banjo 4 piston caliper) Magura Shiftmix 4 for left-front, I Spec-EV compatible Magura Shiftmix 3 for right-rear Adaptor QM44 (180 - 203)
Cockpit
Stem
Velomann, 50 mm, 35 mm, 1"1/8
Handlebar
Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9°, double butted AL7050
Grips
T-One Rock T-GP34 single lock grip, TPR
Headset
Acros 1""1/8 top / 1,5"" bottom - bearings Starnut, Alloy Topcap
Seat
Saddle
Velomann, manganese rail, lenght 277mm x width 144mm
Seatpost
Alpha1 Series - 31.6 mm - Remote RM07 I-Spec EV - 1800 mm cable length - Velomann logo 125 mm - for size M 150 mm - for size L/XL
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Powertube 750wh integrated battery, w/Kiox display
Fit data

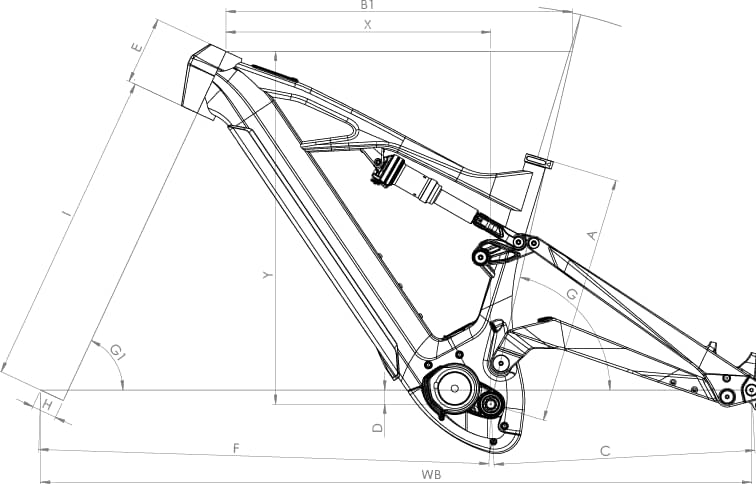

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 794 mm | 822 mm | 848 mm |
| Rake | 44 mm | 44 mm | 43 mm |
| Trail | 126 mm | 126 mm | 127 mm |
| Stack | 626 mm | 635 mm | 649 mm |
| Reach | 471 mm | 494 mm | 514 mm |
| Top Tube Length | 615 mm | 640 mm | 663 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 438 mm | 480 mm | 530 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1258 mm | 1285 mm | 1311 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
e-Vertic FX-Type Pro – GX AXS belongs to the Bianchi E E Vertic model. 27 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Bianchi e-Vertic C-Type – X5 2022 is the cheapest e-bike model and costs 3161$. Bianchi e-Vertic FX-Type – NX/GX 2022 is the most expensive one and costs 6020$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
e-Vertic FX-Type Pro – GX AXS components
Fork
The Fox Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on e-Vertic FX-Type Pro – GX AXS are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Bianchi e-Vertic FX-Type Pro – GX AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Bianchi e-Vertic FX-Type Pro – GX AXS comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
