Bianchi e-Vertic T-Type – Step-through X5 2022
2022 E-bike
Estimate price |
3,612$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Powertube 400wh integrated battery -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
Suspension Fork
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
Drivetrain
Rear Derailleur
SRAM RD X7 SHORT CAGE ALUMINUM 9sp
Shift Levers
SRAM X5 TRIGGER REAR 9sp BLK 2200MM CABLE
Crank
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
Bottom Bracket
included in the motor
Chain
KMC e10S NPBK 1/2" x 11/128"
Wheels
Rear Hub
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm, 6,5mm valve
Tires
Continental CONTACT Urban
Brakes
Brakes
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
Cockpit
Stem
Velomann, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°
Grips
Herrmans, 130mm/130mm, d.22mm
Headset
Acros 1,5"" top / 1,5"" bottom - bearings - integrated cable routing 1 1/8“ crown race for ZS56 Head tube cover
Seat
Saddle
Velomann, black cover 8067 size 270x162mm, 385gr.
Seatpost
Velomann LT2 31.6*350 travel 50mm
Motor & Battery
Motor
Bosch Active Plus motor unit
Battery
Powertube 400wh integrated battery
Fit data

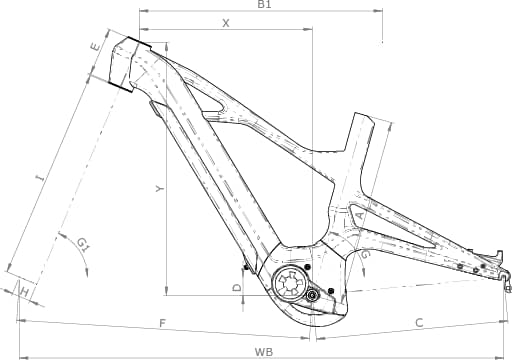

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.42 mm |
| Front Center | 723 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 621 mm | 630 mm | 644 mm |
| Reach | 422 mm | 440 mm | 455 mm |
| Top Tube Length | 595 mm | 616 mm | 634 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1191 mm | 1213 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic T-Type – Step-through X5 completes the Bianchi E E Vertic model. There are 27 e-bikes that carry this model name. Take a sneak peek at all Bianchi E E Vertic e-bikes models from 2022, by clicking here.
Model range prices
Bianchi e-Vertic C-Type – X5 2022 is the cheapest e-bike model and costs 3161$. Bianchi e-Vertic FX-Type – NX/GX 2022 is the most expensive one and costs 6020$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Bianchi released this model in 2022, its price was 3283$. Doing a quick comparison, we notice that e-Vertic T-Type – Step-through X5 price is 27.79% more expensive than the average cost of a Commuter e-bike.
e-Vertic T-Type – Step-through X5 components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on e-Vertic T-Type – Step-through X5 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bianchi e-Vertic T-Type – Step-through X5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
