Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Oltre XR3 Disc carbon w/Countervail
Suspension Fork
Full Carbon Aero Disc w/Countervail, thru axle 12x100mm
Drivetrain
Rear Derailleur
Shimano Ultegra 11sp
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra 11sp
Cassette
Shimano Ultegra 11sp, 11-28T
Crank
Shimano Ultegra Hollowtech II
Bottom Bracket
Shimano SM-BB72-41B
Chain
Shimano Ultegra CN-HG701-11
Wheels
Tires
Vittoria Rubino Pro G+ Isotech graphene 700x28
Brakes
Brakes
Shimano BR-R8070 Hydraulic disc brake
Brake Levers
included w/shifters
Disk Rotors
Shimano SM-RT800 Center Lock 160mm
Cockpit
Stem
Reparto Corse 3D Forged alloy 7050
Handlebar
Reparto Corse Compact, Flat Top, Alloy
Headset
Fsa Orbit C-40-ACB
Seat
Saddle
Selle San Marco Concor Startup
Seatpost
Bianchi Oltre Full Carbon Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.32 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 578 mm | 580 mm | 582 mm | 587 mm | 593 mm | 603 mm | 603 mm |
| Rake | 43 mm | 44 mm | 43 mm | 42 mm | 43 mm | 45 mm | 43 mm |
| Trail | 73 mm | 66 mm | 64 mm | 62 mm | 58 mm | 56 mm | 55 mm |
| Stack | 487 mm | 495 mm | 521 mm | 538 mm | 553 mm | 572 mm | 593 mm |
| Reach | 367 mm | 374 mm | 375 mm | 380 mm | 385 mm | 388 mm | 389 mm |
| Top Tube Length | 504 mm | 515 mm | 526 mm | 541 mm | 552 mm | 567 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 426 mm | 454 mm | 480 mm | 501 mm | 519 mm | 539 mm | 559 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 145 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 404 mm | 406 mm |
| Wheelbase | 973 mm | 975 mm | 974 mm | 979 mm | 985 mm | 998 mm | 1000 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

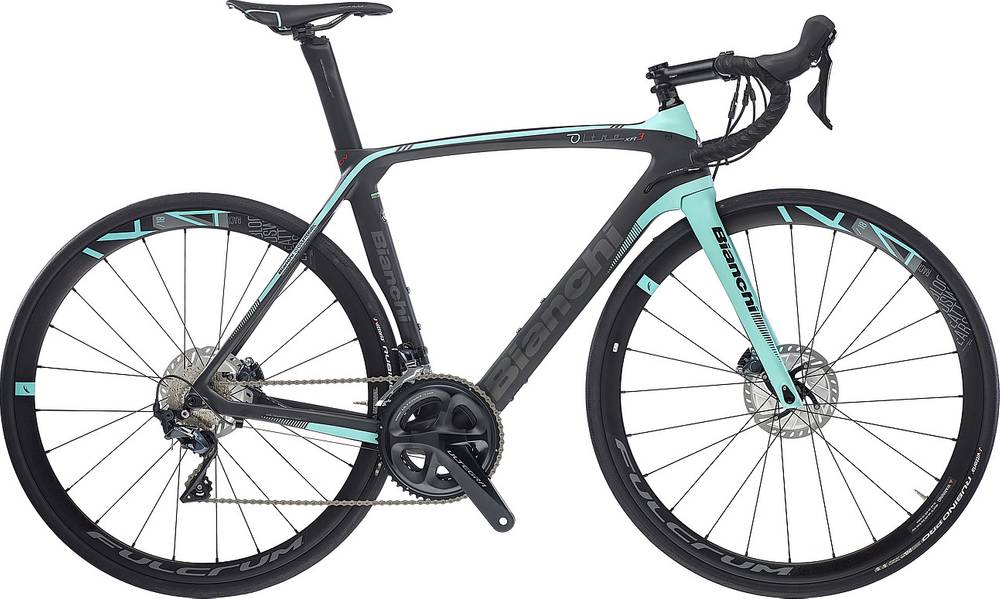

Oltre XR3 Disc completes the Bianchi Oltre model. There are 88 bikes that carry this model name. Take a sneak peek at all Bianchi Oltre bikes models from 2018, by clicking here.
Model range prices
Bianchi Oltre XR3 Ultegra 2018 is the most affordable bike of this model and has a price of 3900$. On the other hand, Bianchi Oltre XR4 Red eTap 2018, is the most expensive and costs 10800$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4800$. Comparing this to the average Aero bike price, we see that the price is 13.99% more expensive.
Oltre XR3 Disc components
Fork material
Oltre XR3 Disc has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Oltre XR3 Disc bike is equipped with the 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
