Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142sizes 47-50-53-55-57-59-61cm
Suspension Fork
Full Carbon Aero Road 1.4">1.1/8" integrated head, Disc brake flat mount, thru axle 12x100
Drivetrain
Rear Derailleur
SRAM RIVAL ETAP AXS D1 MAX 36T
Front Derailleur
SRAMRIVAL ETAP AXS D1
Shift Levers
SRAMRIVAL ETAP AXS D1 Hydraulic Disc Brake
Cassette
SRAM CS XG 1250 D1 10-36T
Crank
SRAM RIVAL D1 DUB 170 - 172,5 - 175, 46/33, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm
Bottom Bracket
SRAM Press fit Road 86,5x41
Chain
SRAM RIVAL D1 12S
Wheels
Rims
Fulcrum Racing 818 disc brake
Tires
Vittoria Rubino IV G2.0 graphene, 700x28, 60TPI
Brakes
Brakes
included in the shifter
Cockpit
Stem
Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1 1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm
Handlebar
Velomann RA35A Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Sizes: 40-42-44, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
Grips
VLT-1001 w/Bianchi embossed logo; w/VLT-49 CP end plug w/o cork
Headset
Fsa Orbit C-33, NO.44E, 1-1/8 Top, 1-1/4
Seat
Saddle
Velomann 1285 URN, steel rails, lenght/wide 278x144mm
Seatpost
Velomann SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 27,2mm, Length: 300mm-44cm ; 350mm-47/61cm
Fit data

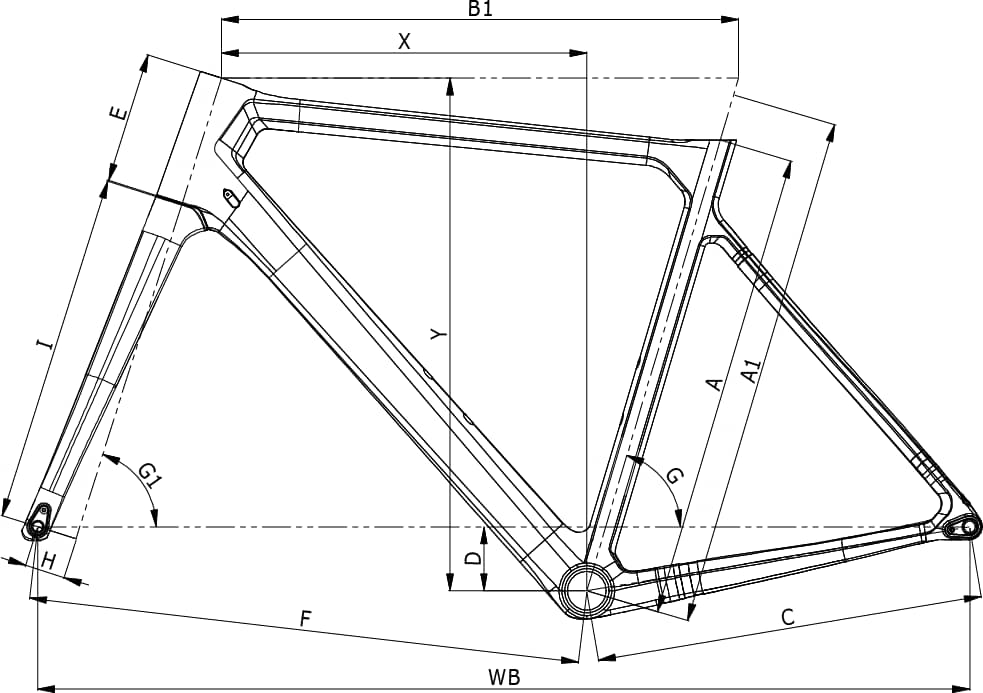

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.32 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.46 mm | 1.51 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 580 mm | 582 mm | 583 mm | 588 mm | 593 mm | 603 mm | 607 mm |
| Rake | 42 mm | 43 mm | 44 mm | 48 mm | 43 mm | 44 mm | 41 mm |
| Trail | 74 mm | 67 mm | 63 mm | 53 mm | 58 mm | 57 mm | 60 mm |
| Stack | 500 mm | 508 mm | 532 mm | 548 mm | 564 mm | 583 mm | 602 mm |
| Reach | 380 mm | 386 mm | 387 mm | 391 mm | 396 mm | 399 mm | 400 mm |
| Top Tube Length | 518 mm | 528 mm | 538 mm | 553 mm | 563 mm | 578 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 416 mm | 416 mm | 416 mm | 418 mm |
| Wheelbase | 985 mm | 986 mm | 987 mm | 994 mm | 999 mm | 1009 mm | 1015 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

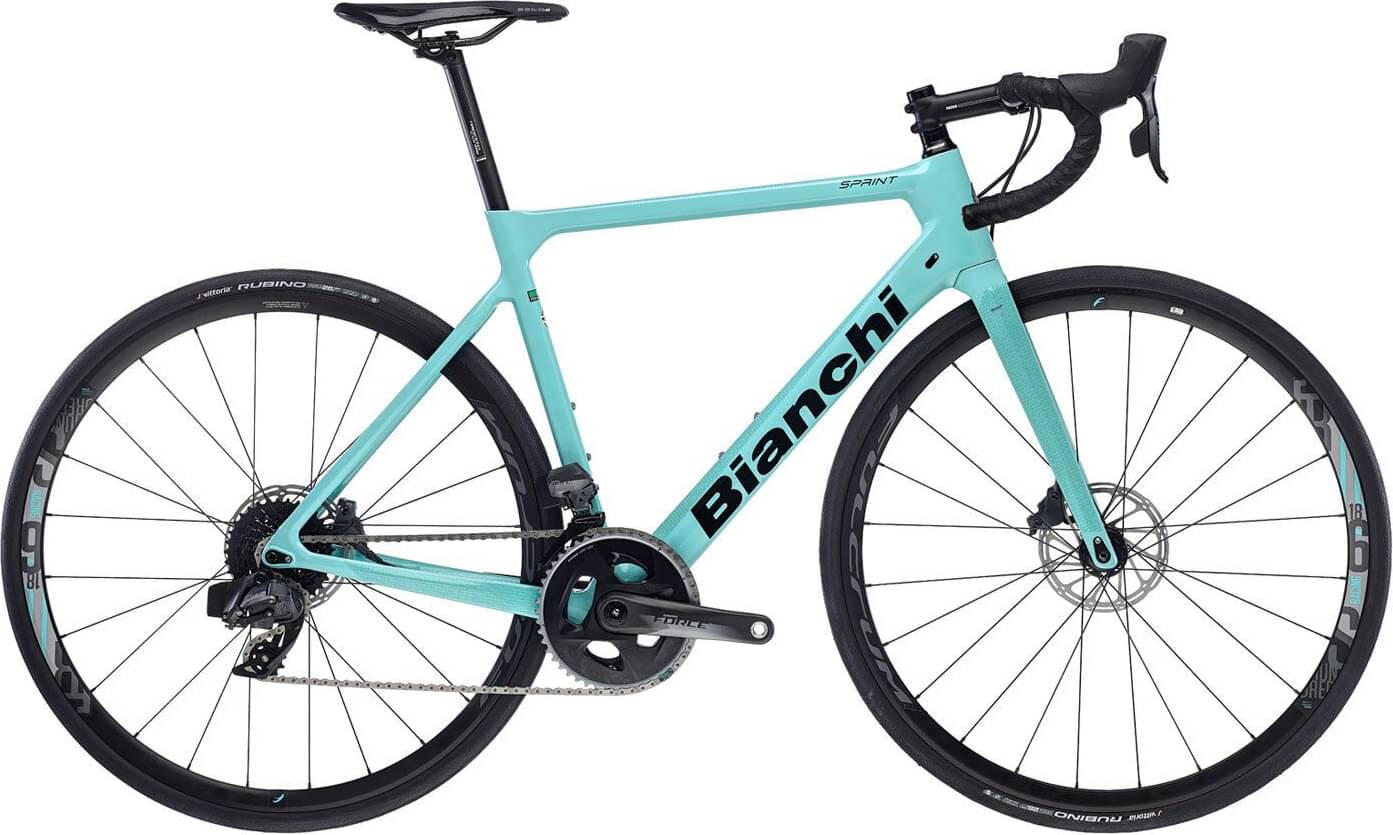

Sprint Rival AXS is a Bianchi Sprint model. Bianchi launched 18 bikes of this model so far. Take a sneak peek at all Bianchi Sprint bikes models from 2023, by clicking here.
Model range prices
Bianchi Sprint Ultegra 2023 is the cheapest bike model and costs 3400$. Bianchi Sprint Rival AXS 2023 is the most expensive one and costs 3599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 3599$. If we compare this with the average Race bike cost we notice that the price is 7.43% more expensive.
Overview of components
Fork material
Sprint Rival AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Sprint Rival AXS are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sprint Rival AXS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
