Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sprint Disc carbon monocoque, mechanical/electronic shifting compatible, PressFit 86,5x41mm, 1.1/4"-1.1/8" HT, integrated seat clamp,full carbon dropout, flat mount, thru axle12x142mm, 32mm tires compatible, sizes 47-50-53-55-57-59-61cm
Suspension Fork
Bianchi Full Carbon Disc 1.1/4">1.1/8", thru axle 12x100mm
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8000 GS 11sp
Front Derailleur
Shimano Ultegra FD-R8000
Shift Levers
Shimano Ultegra ST-R8020 2x11sp, Shimano Ultegra ST-R8025 2x11sp, smaller lever size for sizes 47/53cm
Cassette
Shimano 105 CS-R7000, 11-12-13-14-16-18-20-22-25-28-32T
Crank
Shimano Ultegra FC-R8000 50x34T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
Bottom Bracket
Shimano SM-BB71-41B, PressFit
Chain
Kmc X11-1 EPT finish, 11sp
Wheels
Rims
Velomann VR30 alloy, 622x19C disc brake, clincher
Tires
Vittoria Rubino IV 700x28, 60TPI, G2.0 Graphene
Brakes
Brakes
Shimano BR-R8070
Brake Levers
included w/shifters
Cockpit
Stem
Velomann Alloy 6061, rise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm
Handlebar
Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
Grips
Cork w/Bianchi logo
Headset
Fsa Orbit C-33, NO.44E, 1.1/8">1.1/4"
Seat
Saddle
Velomann 1285 URN, steel rails, lenght/wide 278x144mm
Seatpost
Velomann Alloy shaft AL6061, alloy head, 15mm offset, 27,2mm, Length: 300mm-44cm, 350mm-47/61cm
Fit data

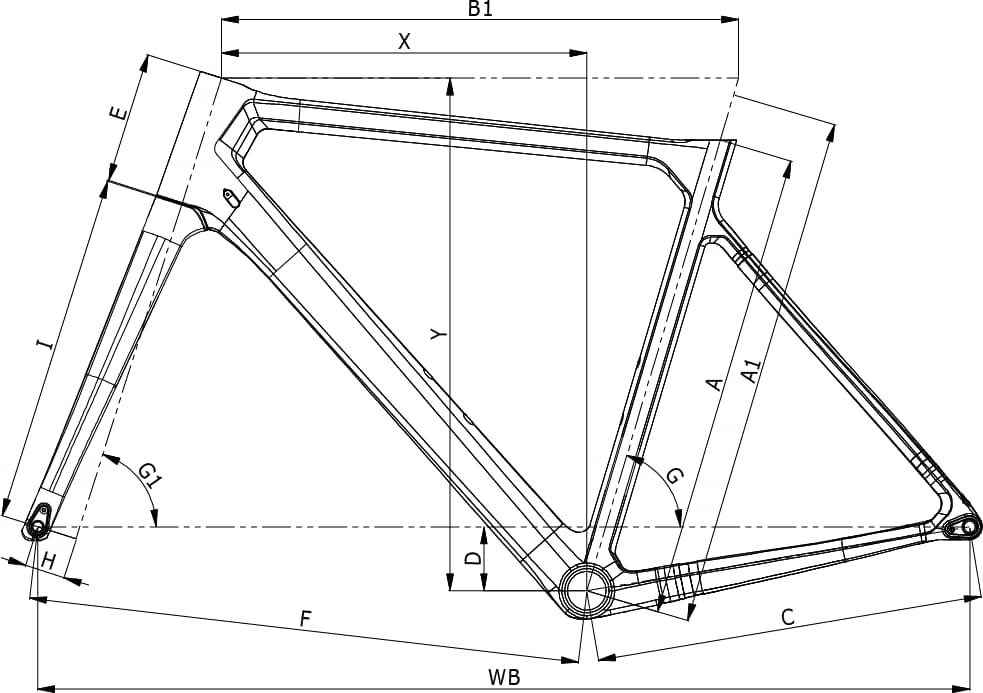

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.32 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.46 mm | 1.51 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 580 mm | 582 mm | 583 mm | 588 mm | 593 mm | 603 mm | 607 mm |
| Rake | 42 mm | 43 mm | 44 mm | 48 mm | 43 mm | 44 mm | 41 mm |
| Trail | 74 mm | 67 mm | 63 mm | 53 mm | 58 mm | 57 mm | 60 mm |
| Stack | 500 mm | 508 mm | 532 mm | 548 mm | 564 mm | 583 mm | 602 mm |
| Reach | 380 mm | 386 mm | 387 mm | 391 mm | 396 mm | 399 mm | 400 mm |
| Top Tube Length | 518 mm | 528 mm | 538 mm | 553 mm | 563 mm | 578 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 416 mm | 416 mm | 416 mm | 418 mm |
| Wheelbase | 985 mm | 986 mm | 987 mm | 994 mm | 999 mm | 1009 mm | 1015 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Sprint Ultegra is part of the Bianchi Sprint model. Bianchi launched 18 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bianchi Sprint Ultegra 2023 is the most economical model, with a starting price of 3400$. Bianchi Sprint Rival AXS 2023 on the other hand costs 3599$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3400$. If we compare this with the average Race bike cost we notice that the price is 1.49% higher.
Sprint Ultegra components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Sprint Ultegra bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
