Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al-13 Premium Triple-butted, Hydroformed Aluminum
Suspension Fork
alpenchallenge AC01, carbon
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano SL-RS700 Rapidfire Plus
Cassette
Shimano 105, 11-32
Crank
Shimano 105, 50-34
Chain
Shimano 105
Wheels
Front Hub
Shimano FH-RS505 / HB-RS505
Rear Hub
Shimano FH-RS505 / HB-RS505
Rims
DT SWISS R522D
Tires
Continental Sport Contact II, 28mm
Brakes
Brakes
Shimano M506/M506 / RT54 rotors (160/160)
Cockpit
Stem
BMC LSM 02
Handlebar
BMC LSB 02
Seat
Saddle
Fizik Rondine manganese
Seatpost
BMC LSP 02
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.4 mm | 1.42 mm | 1.45 mm |
| Front Center | 591 mm | 620 mm | 635 mm | 663 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 539 mm | 577 mm | 596 mm | 634 mm |
| Reach | 396 mm | 412 mm | 421 mm | 437 mm |
| Top Tube Length | 553 mm | 581 mm | 596 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 485 mm | 515 mm | 560 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 998 mm | 1028 mm | 1043 mm | 1081 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 730 mm | 773 mm | 793 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

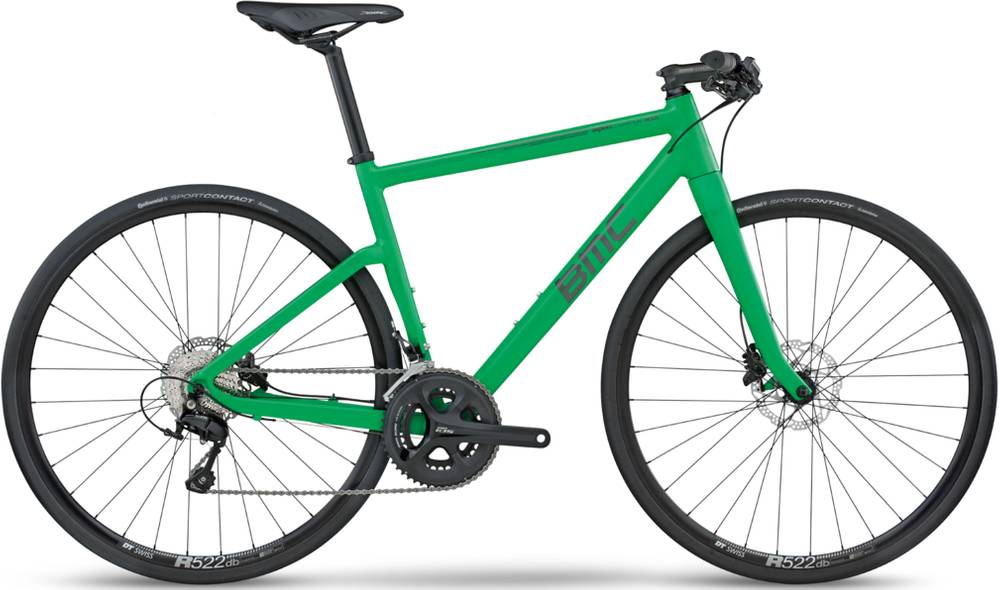

alpenchallenge AC01 is a Bmc Alpenchallenge model. There are 46 bikes that carry this model name. Take a sneak peek at all Bmc Alpenchallenge bikes models from 2017, by clicking here.
Model range prices
BMC alpenchallenge AC02 2017 is the cheapest bike model and costs 1399$. BMC alpenchallenge AC01 IGH 2017 is the most expensive one and costs 2699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter bikes
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1899$. In conclusion, this bike price is 149.21% more expensive than the price of the average Commuter bike.
alpenchallenge AC01 components
Fork material
alpenchallenge AC01 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the alpenchallenge AC01 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The alpenchallenge AC01 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BMC alpenchallenge AC01 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
