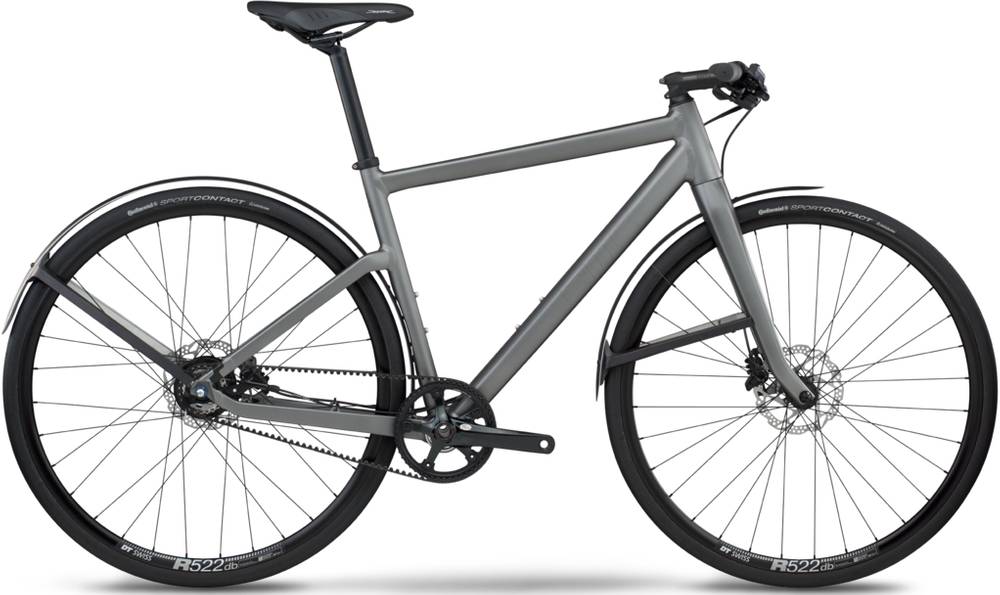

BMC Alpenchallenge AC01 ONE 2018
2018 Urban
Estimate price |
2,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al-13 Premium Triple-butted, Hydroformed Aluminum
Suspension Fork
alpenchallenge AC01, carbon
Drivetrain
Shift Levers
Shimano Alfine 11, Rapidfire Plus
Cassette
Gates CDX-CT SureFit, 24
Crank
Gates CenterTrack CDX-CT, 50
Chain
Gates CDX-CT, 113
Wheels
Front Hub
Shimano M4050 (F) / Alfine 11 (R)
Rear Hub
Shimano M4050 (F) / Alfine 11 (R)
Rims
DT SWISS R522D
Tires
Continental Sport Contact II, 28mm
Brakes
Brakes
Shimano M506/M506 / RT54 rotors (160/160)
Cockpit
Stem
BMC LSM 02
Handlebar
BMC LSB 02
Seat
Saddle
Fizik Rondine manganese
Seatpost
BMC LSP 02
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.4 mm | 1.42 mm | 1.45 mm |
| Front Center | 591 mm | 620 mm | 635 mm | 663 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 539 mm | 577 mm | 596 mm | 634 mm |
| Reach | 396 mm | 412 mm | 421 mm | 437 mm |
| Top Tube Length | 553 mm | 581 mm | 596 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 485 mm | 515 mm | 560 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 998 mm | 1028 mm | 1043 mm | 1081 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 730 mm | 773 mm | 793 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Alpenchallenge AC01 ONE is part of the Bmc Alpenchallenge model. 46 bikes variations carry this model name so far. You can easily view all of the Bmc Alpenchallenge bikes models from 2018, here.
Model range prices
BMC Alpenchallenge AC02 THREE 2018 is the cheapest bike model and costs 999$. BMC Alpenchallenge AC01 ONE 2018 is the most expensive one and costs 2299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When BMC released this model in 2018, its price was 2299$. Doing a quick comparison, we notice that Alpenchallenge AC01 ONE price is 201.71% more expensive than the average cost of a Commuter bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Alpenchallenge AC01 ONE model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. BMC Alpenchallenge AC01 ONE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
