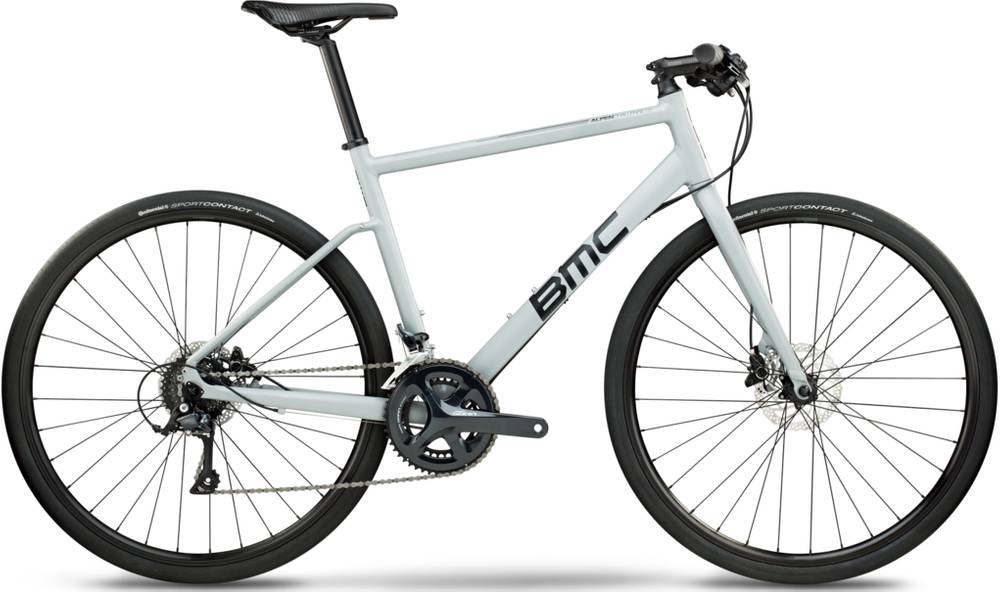

BMC Alpenchallenge AC02 THREE 2018
2018 Urban
Estimate price |
999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al-13 Butted, Hydroformed aluminum
Suspension Fork
Alpenchallenge 02, Al-13 aluminum
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, Rapidfire Plus
Cassette
Shimano HG200, 11-32
Crank
Shimano Sora, 50-34T
Chain
HG53
Wheels
Front Hub
Shimano TX-505
Rear Hub
Shimano TX-505
Rims
Alex X2200
Tires
Continental Sport Contact II, 35mm
Brakes
Brakes
Shimano M396 / RT30 rotors (160/160)*
Cockpit
Stem
BMC LSM 03
Handlebar
BMC LSB 03
Seat
Saddle
Selle Royal 2080 URN
Seatpost
BMC LSP 03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.42 mm | 1.46 mm |
| Front Center | 608 mm | 637 mm | 654 mm | 682 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 68 mm | 68 mm | 68 mm | 68 mm |
| Stack | 536 mm | 577 mm | 597 mm | 636 mm |
| Reach | 396 mm | 411 mm | 421 mm | 436 mm |
| Top Tube Length | 558 mm | 591 mm | 607 mm | 640 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 440 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 122 mm | 165 mm | 187 mm | 228 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1045 mm | 1074 mm | 1091 mm | 1119 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 746 mm | 803 mm | 834 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Alpenchallenge AC02 THREE belongs to the Bmc Alpenchallenge model. BMC released 46 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the BMC Alpenchallenge AC02 THREE 2018 has a starting price of 999$. BMC Alpenchallenge AC01 ONE 2018 on the other hand is the most expensive at 2299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 999$. In conclusion, this bike price is 31.1% higher than the price of the average Commuter bike.
Alpenchallenge AC02 THREE components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Alpenchallenge AC02 THREE model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Alpenchallenge AC02 THREE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Alpenchallenge AC02 THREE comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
