Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
01 Premium Carbon (F), Al-13 Triple-butted aluminum (R)
Suspension Fork
Fox Float 34, Performance, Grip, 3-Pos (130mm)
Rear Shock
Fox Float DPS, Performance, Evol, 3-Pos (130mm)
Drivetrain
Rear Derailleur
Shimano XT, Shadow Plus
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano XT, 11-40T
Crank
Shimano XT, 34-24T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT
Wheels
Front Hub
DT Swiss M1700 Spline
Rear Hub
DT Swiss M1700 Spline
Rims
DT Swiss M1700 Spline
Tires
Onza: Ibex FRC 120 (F) / Canis FRC 60 (R), 2.25
Brakes
Brakes
Shimano XT (180/180mm)
Cockpit
Stem
BMC MSM 02
Handlebar
BMC MFB 02, 750mm
Seat
Saddle
WTB Volt Race
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 672 mm | 694 mm | 716 mm | 738 mm | 760 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 605 mm | 609 mm | 614 mm | 619 mm | 623 mm |
| Reach | 402 mm | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 573 mm | 595 mm | 616 mm | 637 mm | 659 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1112 mm | 1134 mm | 1156 mm | 1178 mm | 1199 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 747 mm | 752 mm | 765 mm | 773 mm | 788 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

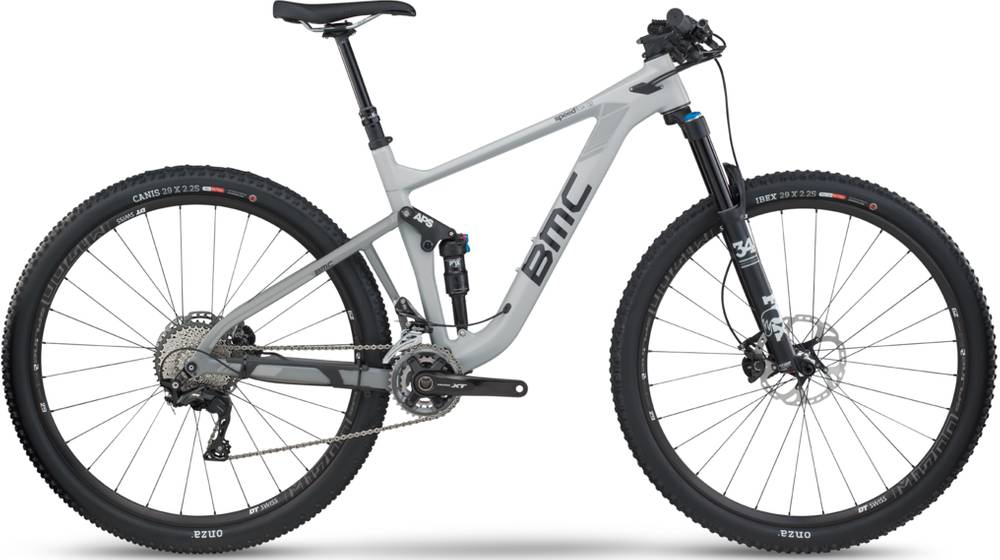

speedfox 02 is a Bmc Speedfox model. BMC released 28 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
BMC speedfox 03 2017 is the cheapest bike model and costs 2999$. BMC speedfox 01 2017 is the most expensive one and costs 6499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, BMC speedfox 02 price was 4999$. In conclusion, this bike price is 80.99% higher than the price of the average Trail bike.
speedfox 02 components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The speedfox 02 has a rear shock with a travel of 130mm. The model Fox Float DPS is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the speedfox 02 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
