Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
02 Carbon (F), Al-13 Triple-butted aluminum (R)
Suspension Fork
RockShox Revelation RC (120/130mm)***
Rear Shock
Fox Float DPS, Performance Elite, Evol, Remote (120/130mm)***
Drivetrain
Rear Derailleur
Shimano SLX, Shadow Plus
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano SLX, 11-46T
Crank
RaceFace Aeffect SL 32T
Bottom Bracket
SRAM PF92
Chain
KMC X-11EL-1
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1900 Spline
Rear Hub
DT Swiss M1900 Spline
Rims
DT Swiss M1900 Spline 30 **
Spokes
DT Swiss
Tires
Maxxis Forekaster EXO, 27,5 or 29x2.35
Brakes
Brakes
Shimano SLX (180/180mm)
Brake Levers
Shimano SLX
Cockpit
Stem
BMC AMSM 02
Handlebar
BMC MRB 02, 760mm
Seat
Saddle
WTB Volt Race
Seatpost
BMC Trailsync, 120mm*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.37 mm | 1.38 mm | 1.37 mm |
| Bottom Bracket Height | 352 mm | 337 mm | 352 mm | 337 mm | 337 mm |
| Front Center | 685 mm | 704 mm | 712 mm | 728 mm | 748 mm |
| Rake | 46 mm | 51 mm | 46 mm | 51 mm | 51 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 577 mm | 603 mm | 588 mm | 613 mm | 628 mm |
| Reach | 406 mm | 423 mm | 429 mm | 443 mm | 458 mm |
| Top Tube Length | 580 mm | 604 mm | 606 mm | 627 mm | 646 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 410 mm | 440 mm | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 68.25 ° | 67.5 ° | 68.25 ° | 68.25 ° |
| Head Tube Length | 110 mm | 105 mm | 120 mm | 115 mm | 135 mm |
| Chainstay Length | 423 mm | 438 mm | 423 mm | 438 mm | 438 mm |
| Wheelbase | 1104 mm | 1138 mm | 1131 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 22 mm | 37 mm | 22 mm | 37 mm | 37 mm |
| Standover Height | 688 mm | 727 mm | 715 mm | 745 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

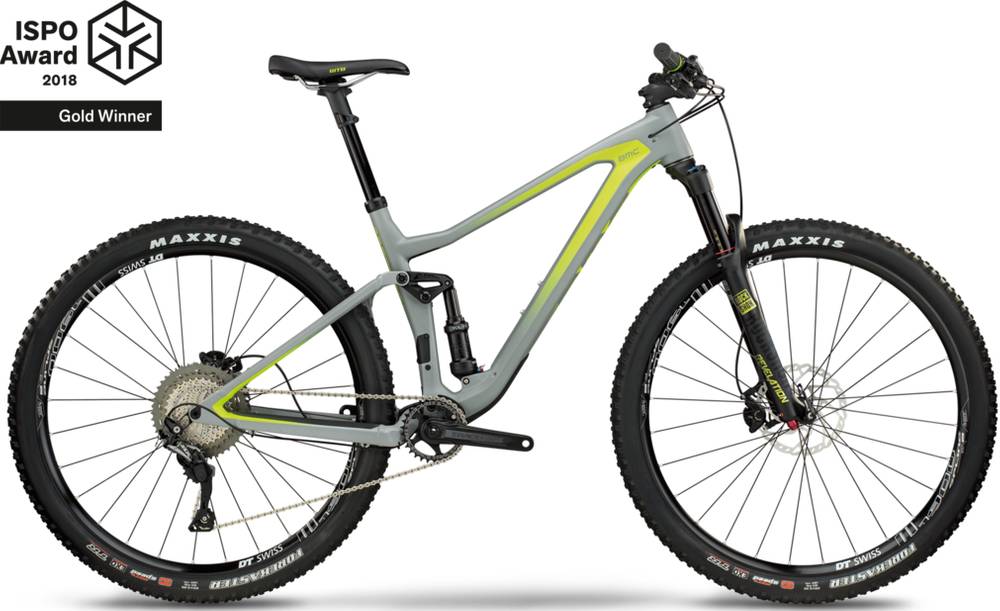

Speedfox 02 THREE is a Bmc Speedfox model. There are 28 bikes that carry this model name. Take a sneak peek at all Bmc Speedfox bikes models from 2018, by clicking here.
Model range prices
BMC Speedfox 03 THREE 2018 is the cheapest bike model and costs 2199$. BMC Speedfox 01 ONE 2018 is the most expensive one and costs 7499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 4299$. Comparing the average cost of a Trail bike to this one, you will see that Speedfox 02 THREE price is 55.65% higher.
Overview of components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Speedfox 02 THREE model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. BMC Speedfox 02 THREE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
BMC Speedfox 02 THREE bike has 5 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The BMC model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
