Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ACE Technology, 01 Premium Carbon
Suspension Fork
Teammachine SLR, 01 Premium Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra, 11-30T
Crank
Shimano Ultegra, 52-36T
Chain
Shimano Ultegra
Wheels
Front Hub
DT Swiss P1750 SPLINE 23
Rear Hub
DT Swiss P1750 SPLINE 23
Rims
DT Swiss P1750 SPLINE 23
Tires
Vittoria Corsa, 25mm
Brakes
Brakes
Shimano Ultegra, direct mount
Cockpit
Stem
BMC RSM01, w/ computer and camera mount
Handlebar
BMC RAB 02, ergo top shape, compact bend
Seat
Saddle
Fizik Antares R5 K'ium
Seatpost
Teammachine SLR01 "D" Premium Carbon, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 570 mm | 575 mm | 587 mm | 596 mm | 611 mm | 627 mm |
| Rake | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm |
| Trail | 76 mm | 66 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 541 mm | 556 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 513 mm | 534 mm | 554 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 113 mm | 133 mm | 153 mm | 168 mm | 188 mm | 213 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 976 mm | 981 mm | 992 mm | 1002 mm | 1018 mm | 1033 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 732 mm | 760 mm | 785 mm | 803 mm | 820 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |
Model Overview

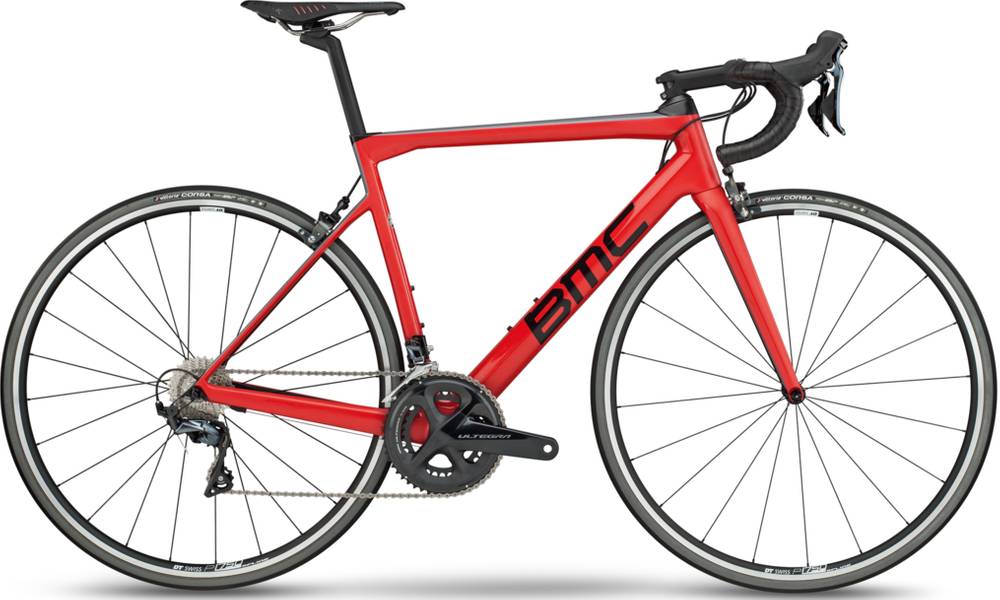

Teammachine SLR01 THREE is part of the Bmc Teammachine model. BMC launched 158 bikes of this model so far. You can easily view all of the Bmc Teammachine bikes models from 2018, here.
Model range prices
BMC Teammachine ALR01 FOUR 2018 is the most economical model, with a starting price of 999$. BMC Teammachine SLR01 DISC TEAM 2018 on the other hand costs 11999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Comparing the average cost of a Race bike to this one, you will see that Teammachine SLR01 THREE price is 49.22% higher.
Teammachine SLR01 THREE components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, BMC Teammachine SLR01 THREE 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Teammachine SLR01 THREE has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Teammachine SLR01 THREE comes in 6 sizes, that range from 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
