Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aerodynamic 01 Premium Carbon, Vmax Aero Technology
Suspension Fork
Aero 01 Premium Carbon, Hinge-design, Vmax Aero Technology
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra, 11-28T
Crank
Shimano Ultegra, 53-39T
Chain
Shimano Ultegra
Wheels
Front Hub
DT Swiss R46H C Carbon Hybrid
Rear Hub
DT Swiss R46H C Carbon Hybrid
Rims
DT Swiss R46H C Carbon Hybrid
Tires
Continental Ultra Sport II SL, 23mm
Brakes
Brakes
Vmax Aero integrated design (F&R)
Cockpit
Stem
BMC RSM 01
Handlebar
BMC RAB 02
Seat
Saddle
Fizik Arione R7 Manganese
Seatpost
Vmax Aero Post, 01 Premium Carbon, P2P and SubA Technology
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 573 mm | 574 mm | 584 mm | 595 mm | 609 mm | 627 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 75 mm | 66 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 510 mm | 530 mm | 550 mm | 565 mm | 585 mm | 610 mm |
| Reach | 375 mm | 383 mm | 391 mm | 397 mm | 405 mm | 415 mm |
| Top Tube Length | 520 mm | 534 mm | 547 mm | 558 mm | 571 mm | 588 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 524 mm | 546 mm | 567 mm | 583 mm | 603 mm | 629 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 109 mm | 125 mm | 144 mm | 160 mm | 181 mm | 207 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 974 mm | 984 mm | 995 mm | 1009 mm | 1027 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 765 mm | 785 mm | 805 mm | 820 mm | 840 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

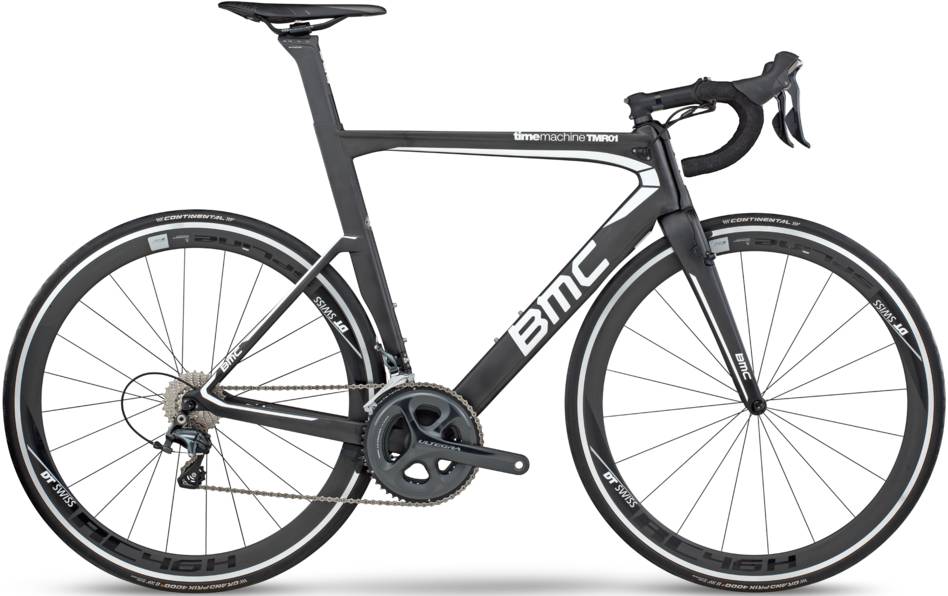

timemachine TMR01 is a Bmc Timemachine model. BMC launched 70 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
BMC timemachine TMR02 2017 is the most affordable bike of this model and has a price of 3499$. On the other hand, BMC timemachine 01 2017, is the most expensive and costs 12999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 4999$. Comparing the average cost of a Triathlon bike to this one, you will see that timemachine TMR01 price is 19.68% higher.
timemachine TMR01 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the timemachine TMR01 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The timemachine TMR01 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
