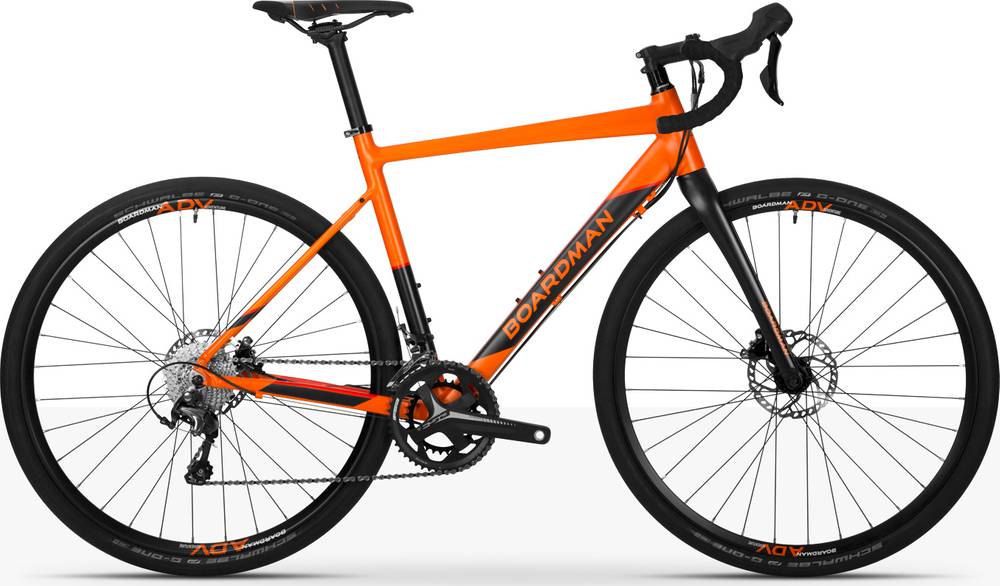

Boardman ADV 8.9 2019
2019 Road
Estimate price |
1,338$
Weight | 10.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
170cm - 180cm
LG
177cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, smooth welded, adventure geometry
Suspension Fork
Full carbon blades and steerer, tapered
Drivetrain
Rear Derailleur
Shimano Tiagra, 10 speed, medium cage
Front Derailleur
Shimano Tiagra, double, 34.9mm clamp
Shift Levers
Shimano RS405 hydraulic levers, 2x10
Cassette
Shimano HG500, 10 speed, 11-32t (11-12-14-16-18-20- 22-25-28-32)
Crank
FSA Omega Adventure, Mega Exo, 48/32t 50/34t
Bottom Bracket
FSA BB-4000, Mega Exo
Chain
KMC X10
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman ADV Tubeless Ready
Tires
Schwalbe G-One speed, 700x38mm, raceguard, folding bead
Brakes
Brakes
Shimano RS405 hydraulic disc, flat mounts, 160mm Shimano rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Fizik Tundra VS M7, alloy rails
Seatpost
Boardman Alloy, 31.6 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Top Tube Length | 531 mm | 551 mm | 566 mm | 581 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
About this model
ADV 8.9 belongs to the Boardman Adv model. Boardman released 12 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Boardman ADV 8.8 2019 is the most affordable bike of this model and has a price of 973$. On the other hand, Boardman ADV 9.0 2019, is the most expensive and costs 2007$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Boardman released this model in 2019, its price was 1216$. Doing a quick comparison, we notice that ADV 8.9 price is 102.47% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.5 kg (23.15 lbs), Boardman bike is much heavier than average. In conclusion, the average Gravel bike weighs 29.15% less than ADV 8.9.
ADV 8.9 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Boardman ADV 8.9 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 195 cm (5.25 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
