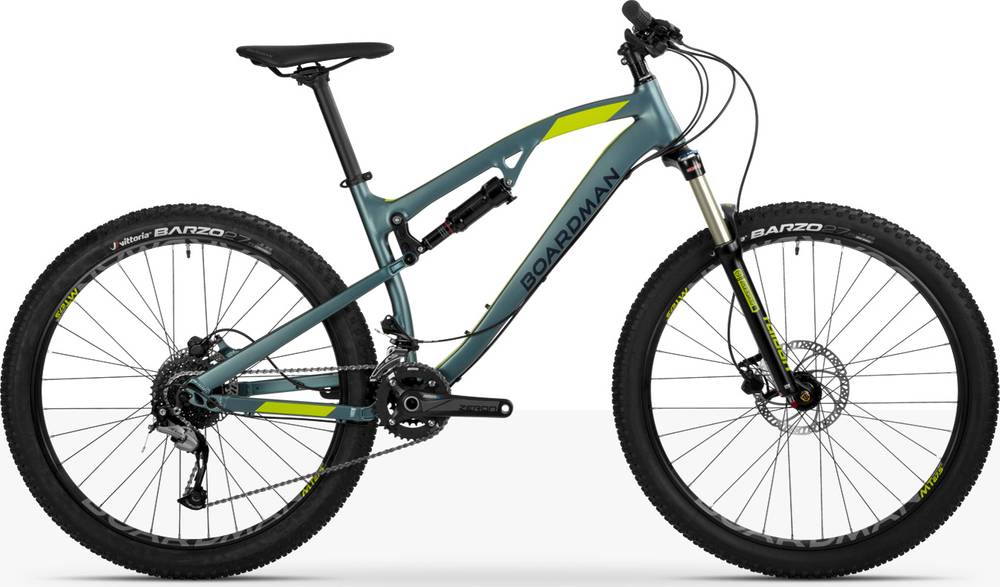

Boardman MTR 8.6 2020
2020 Mountain
Estimate price |
1,490$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Acera, Shimano -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
167cm - 180cm
LG
175cm - 188cm
XL
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, smooth welded, dropper post ready
Suspension Fork
Suntour Raidon LOR, 120mm travel, 15mm QLOC / Rock Shox Deluxe R, 210x55mm
Rear Shock
15mm QLOC / Rock Shox Deluxe R
Drivetrain
Rear Derailleur
Shimano Acera, 9 speed, long cage
Front Derailleur
Shimano MT400, 2x9, front pull, direct mount
Shift Levers
Shimano Acera, 2x9
Cassette
Shimano HG200, 11-36t, 9 speed (11-13-15-17-20-23- 26-30-36)
Crank
Suntour Zeron 2x 36/22t
Bottom Bracket
FSA BB-7100, 73mm, Mega Exo
Chain
KMC X9
Wheels
Front Hub
Formula hubs, 32H front and rear, 148mm boost, M12xP1.5 thru-axle
Rear Hub
Formula hubs, 32H front and rear, 148mm boost, M12xP1.5 thru-axle
Rims
Boardman Boost 27.5" Tubeless Ready
Tires
Vittoria Barzo, 27.5x2.25”, wire bead. Kenda tube, presta valve
Brakes
Brakes
Tektro M285, 160 mm rotor
Cockpit
Stem
Boardman Alloy, no rise, 31.8mm clamp
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” tapered, Integrated
Seat
Saddle
Boardman MTB by Velo, steel rails
Seatpost
Boardman Alloy, 31.6mm, 34.9mm QR seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 585 mm | 593 mm | 603 mm | 617 mm |
| Reach | 409 mm | 431 mm | 448 mm | 459 mm |
| Top Tube Length | 579 mm | 603 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 432 mm | 460 mm | 483 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 167 cm | 175 cm | 183 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
About this model
MTR 8.6 is part of the Boardman Mtr model. There are 15 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Boardman MTR 8.6 2020 is the most economical model, with a starting price of 1338$. Boardman MTR 8.9 2020 on the other hand costs 1946$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1338$. Doing a quick comparison, we notice that MTR 8.6 price is 106.43% lower than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.8 kg (32.63 lbs), Boardman bike is considerably heavier than average. In short, the average Trail bike weight is 14.02% lower than this one.
Overview of components
Fork
Boardman MTR 8.6 2020 bike is equipped with the SunTour RAIDON fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the MTR 8.6 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MTR 8.6 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
