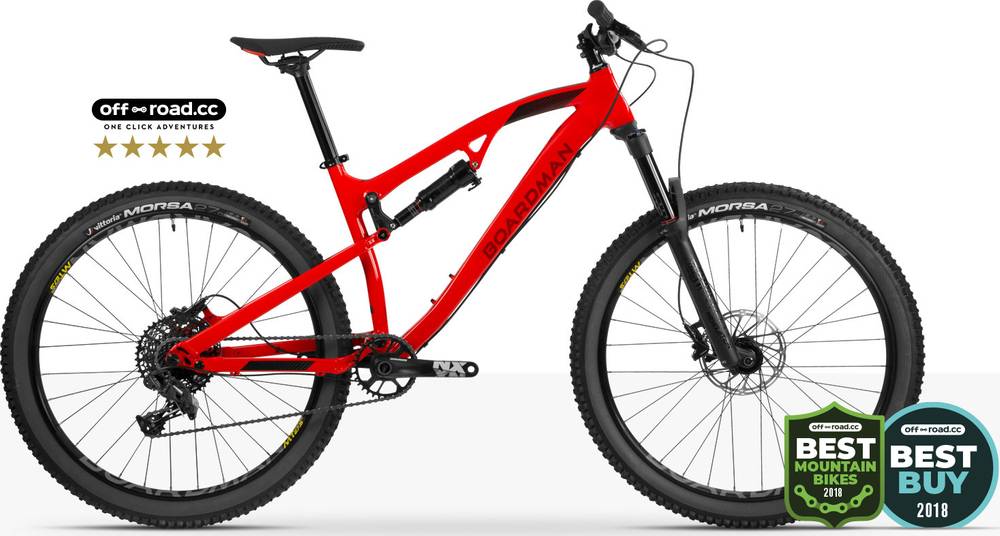

Boardman MTR 8.9 2020
2020 Mountain
Estimate price |
2,168$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
167cm - 180cm
LG
175cm - 188cm
XL
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, smooth welded, dropper post ready
Suspension Fork
Rock Shox Revelation RC 140mm travel, boost 27.5, tapered, 15mm maxle / Rock Shox Deluxe RT, 210x55mm
Rear Shock
15mm maxle / Rock Shox Deluxe RT
Drivetrain
Rear Derailleur
SRAM NX, 11 speed, long cage
Front Derailleur
N/A
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM NX, 11-42t, 11 speed (11-12-15-17-19-22-25-28- 32-36-42)
Crank
SRAM NX 32t
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM PC-1110
Wheels
Front Hub
Formula hubs, 32H, 110 / 148mm boost, M12xP1.5 thru-axle
Rear Hub
Formula hubs, 32H, 110 / 148mm boost, M12xP1.5 thru-axle
Rims
Boardman Boost 27.5" Tubeless Ready
Tires
Vittoria Morsa TNT, 27.5x2.3”, tubeless ready. Kenda tube, presta valve
Brakes
Brakes
SRAM Level T, 160 mm rotor
Cockpit
Stem
Boardman Alloy, no rise, 31.8mm clamp
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” tapered, Integrated
Seat
Saddle
Fizik Ponente, alloy rails
Seatpost
Boardman Alloy, 31.6mm, 34.9mm QR seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 585 mm | 593 mm | 603 mm | 617 mm |
| Reach | 409 mm | 431 mm | 448 mm | 459 mm |
| Top Tube Length | 579 mm | 603 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 432 mm | 460 mm | 483 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 167 cm | 175 cm | 183 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
Model Overview
MTR 8.9 belongs to the Boardman Mtr model. Boardman launched 15 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Boardman MTR 8.6 2020 is the most affordable bike of this model and has a price of 1338$. On the other hand, Boardman MTR 8.9 2020, is the most expensive and costs 1946$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1946$. If we compare this with the average Trail bike cost we notice that the price is 41.93% lower.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14 kg (30.86 lbs), Boardman bike is a bit heavier than average. In conclusion, the average Trail bike weighs 7.86% less than MTR 8.9.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the MTR 8.9 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The MTR 8.9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Boardman MTR 8.9 bike has 4 sizes, in the range of 160 cm – 195 cm (5.25 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
