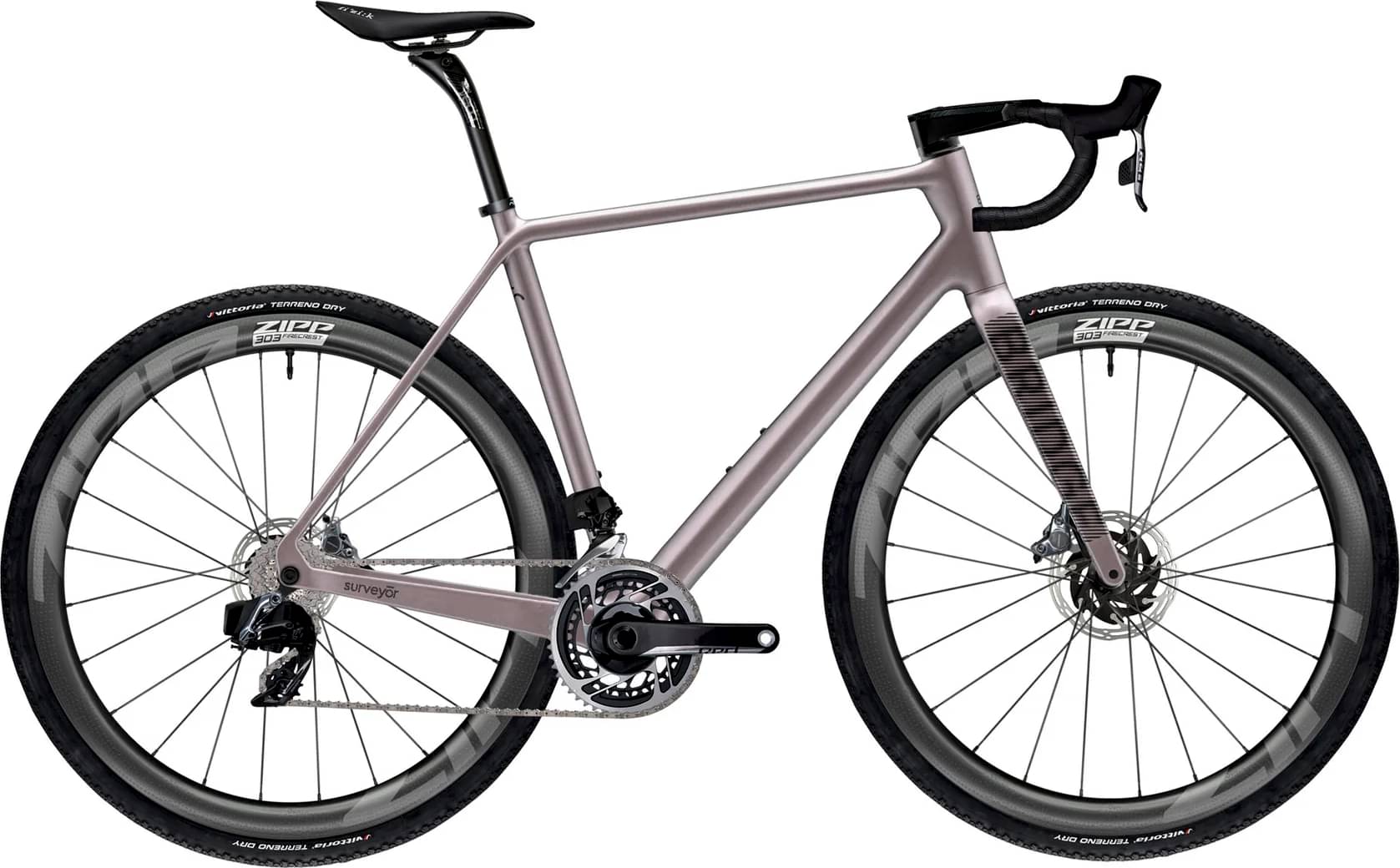

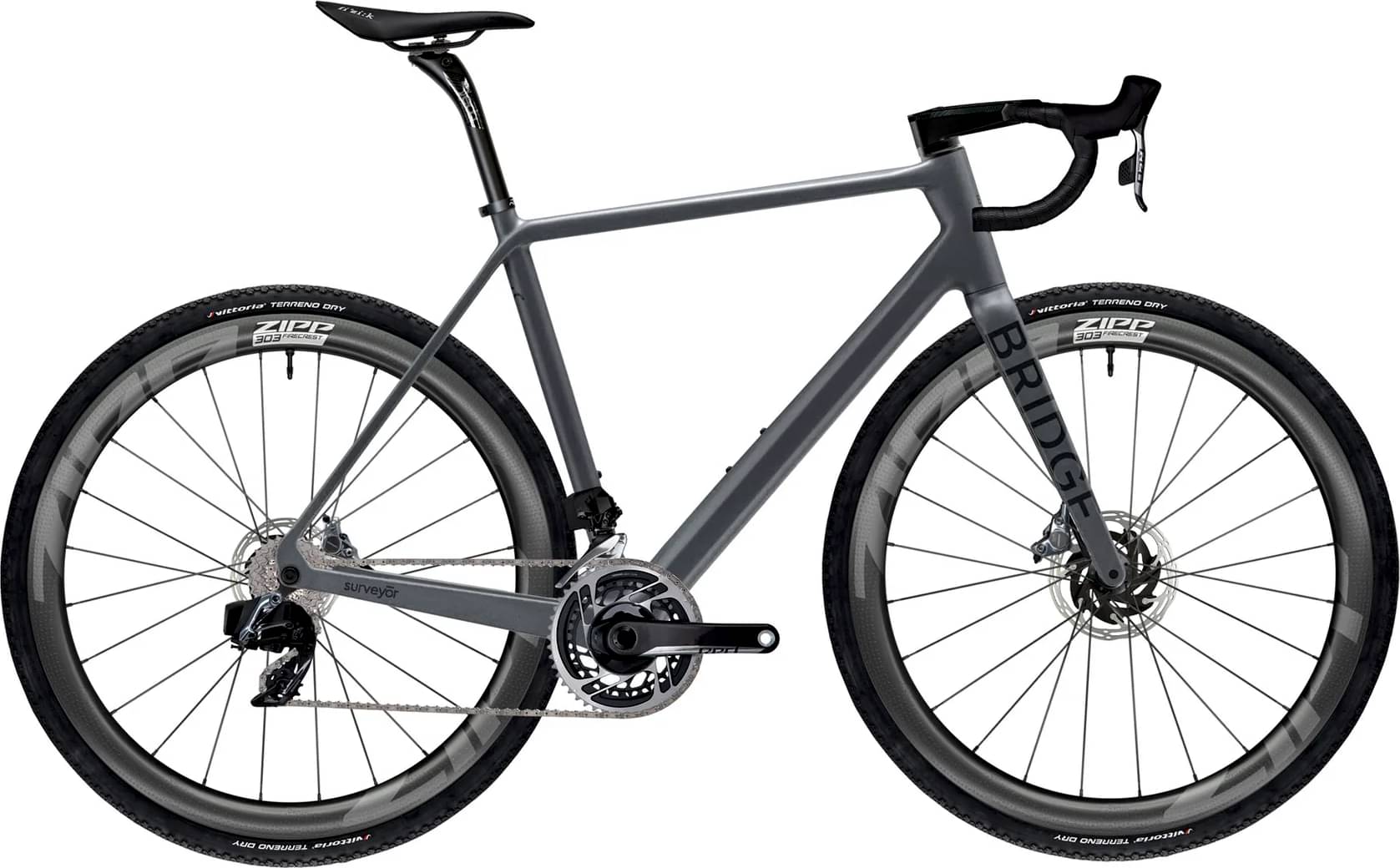

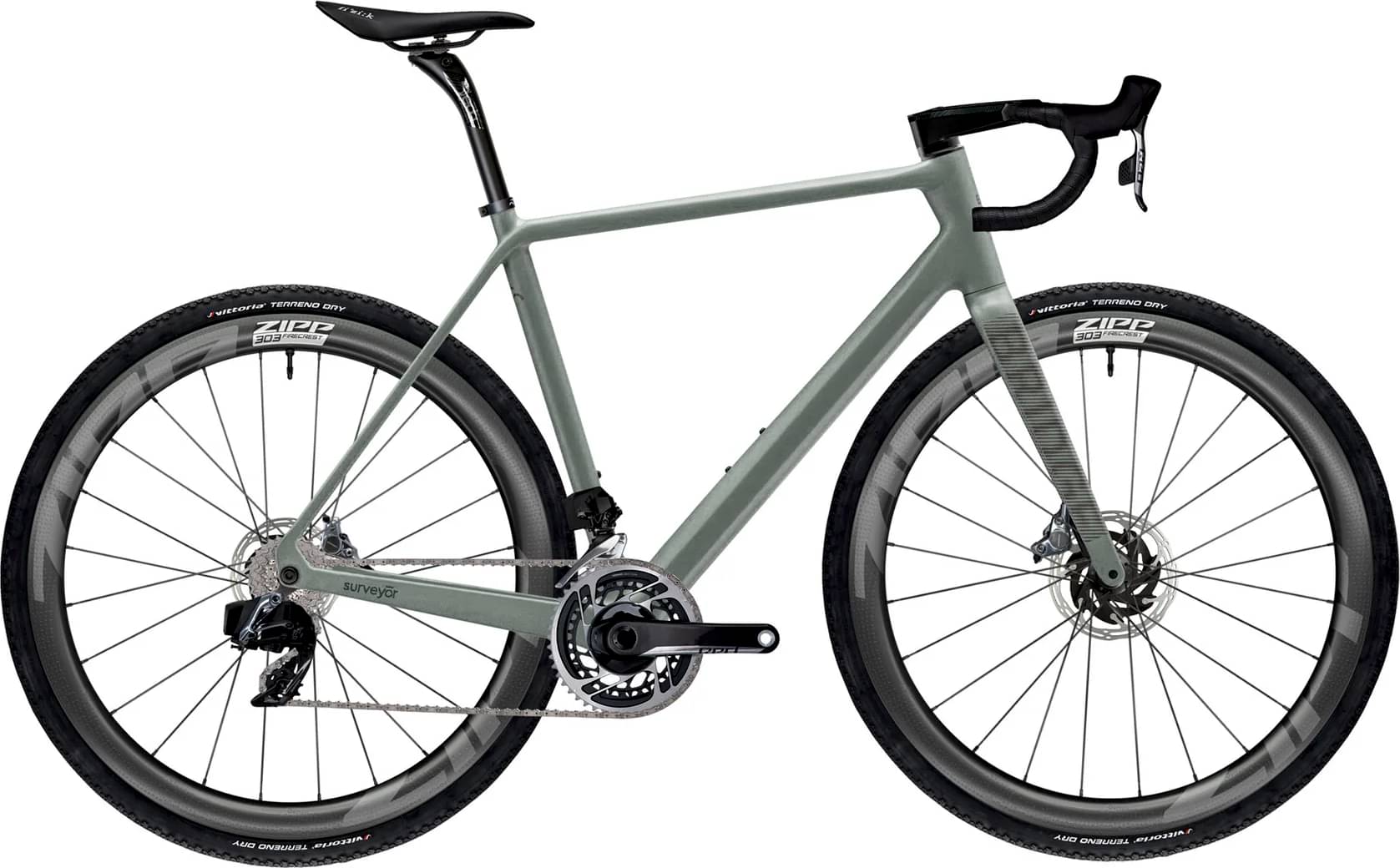

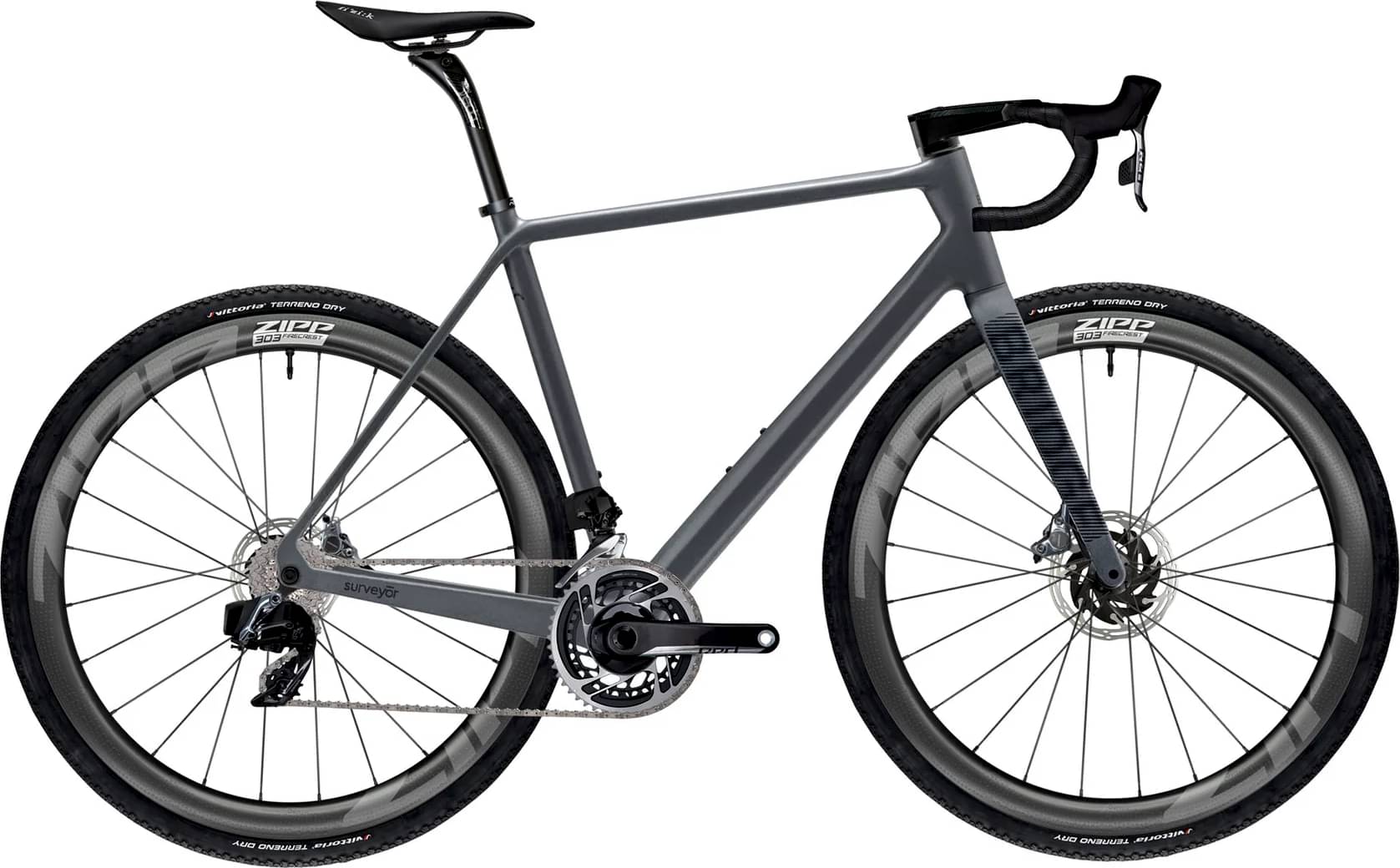

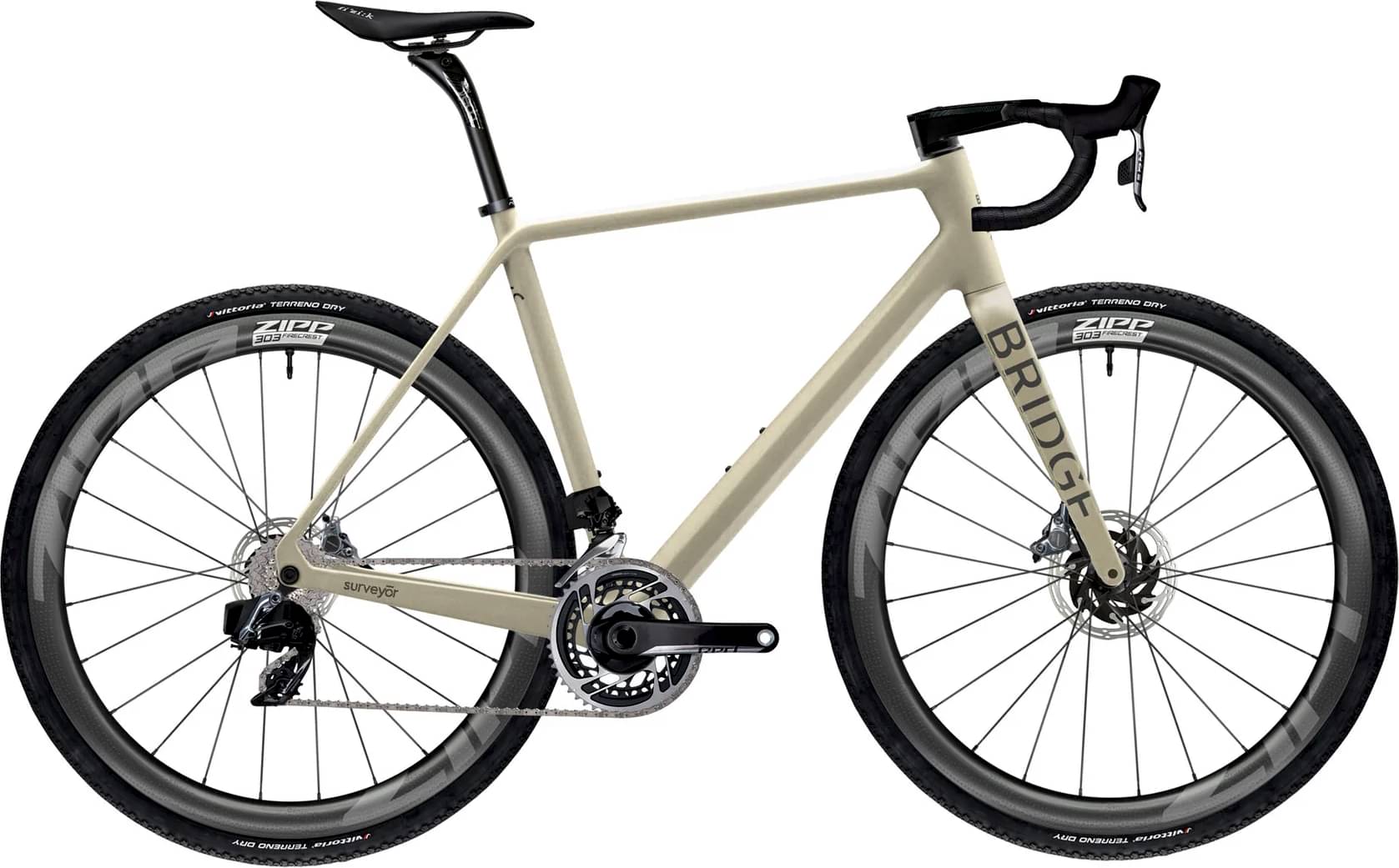

bridgebikeworks Bridge Bikeworks Surveyor – Red AXS Gravel 2023
2023 Road
Estimate price |
10,722$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Red AXS XPLR
Cassette
SRAM Red XPLR
Bottom Bracket
White Industries T47/86
Wheels
Rims
Zipp 303 Firecrest
Tires
Vittoria Terreno Dry
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Integrated
Handlebar
Deda Alanera Integrated
Seat
Saddle
FIZIK ARGO R5
Seatpost
Deda Superzero 25
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 585.7 mm | 600.2 mm | 598.7 mm | 611.9 mm | 625.12 mm |
| Rake | 53.1 mm | 53.1 mm | 45.9 mm | 45.9 mm | 45.9 mm |
| Trail | 65.5 mm | 63.9 mm | 63.3 mm | 63.3 mm | 60 mm |
| Stack | 501.4 mm | 530.4 mm | 559.4 mm | 587.4 mm | 616.4 mm |
| Reach | 367.4 mm | 374.4 mm | 382.4 mm | 389.4 mm | 396.4 mm |
| Top Tube Length | 504.1 mm | 518.8 mm | 539.9 mm | 560.3 mm | 575.6 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 459.4 mm | 487 mm | 532.2 mm | 559.8 mm | 587.9 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 90.1 mm | 119.7 mm | 145.3 mm | 173.6 mm | 203 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 980 mm | 995 mm | 994 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Surveyor – Red AXS Gravel completes the Bridgebikeworks Surveyor model. Bridge Bikeworks released 12 bikes variations of this model so far. Take a sneak peek at all Bridgebikeworks Surveyor bikes models from 2023, by clicking here.
Model range prices
Bridge Bikeworks Surveyor – Rival AXS Gravel 2023 is the cheapest bike model and costs 6146$. Bridge Bikeworks Surveyor – Red AXS Gravel 2023 is the most expensive one and costs 10846$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Bridge Bikeworks released this model in 2023, its price was 10846$. If we compare this with the average Gravel bike cost we notice that the price is 340.54% higher.
Surveyor – Red AXS Gravel components

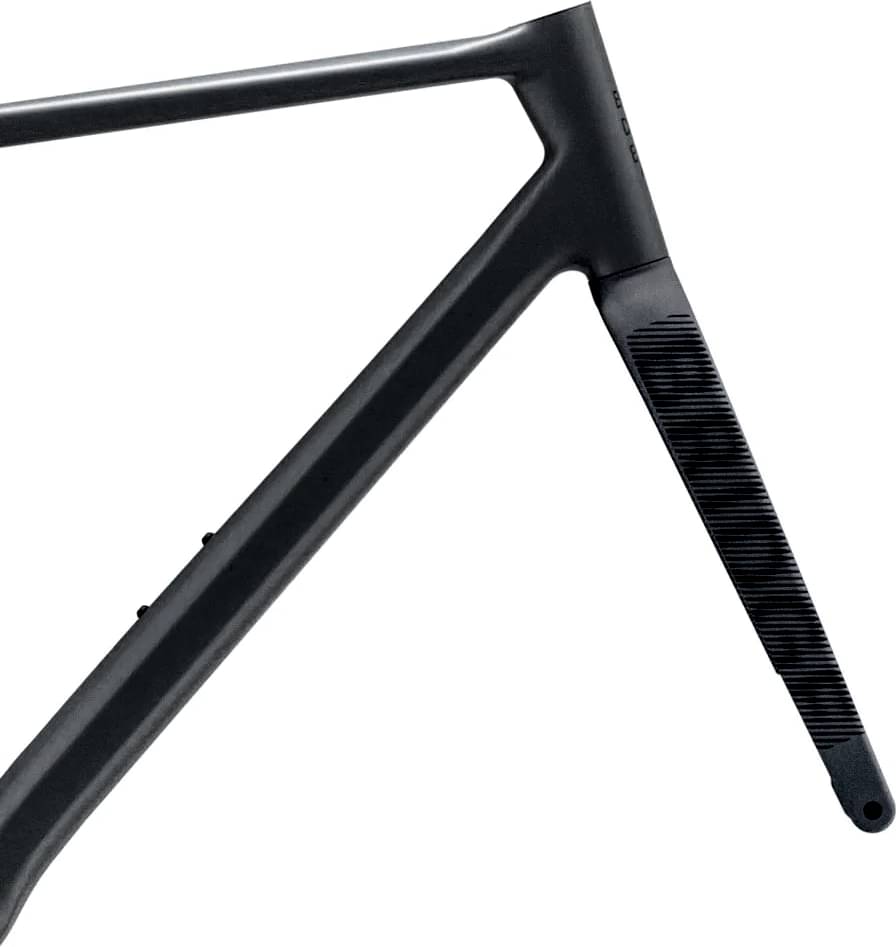

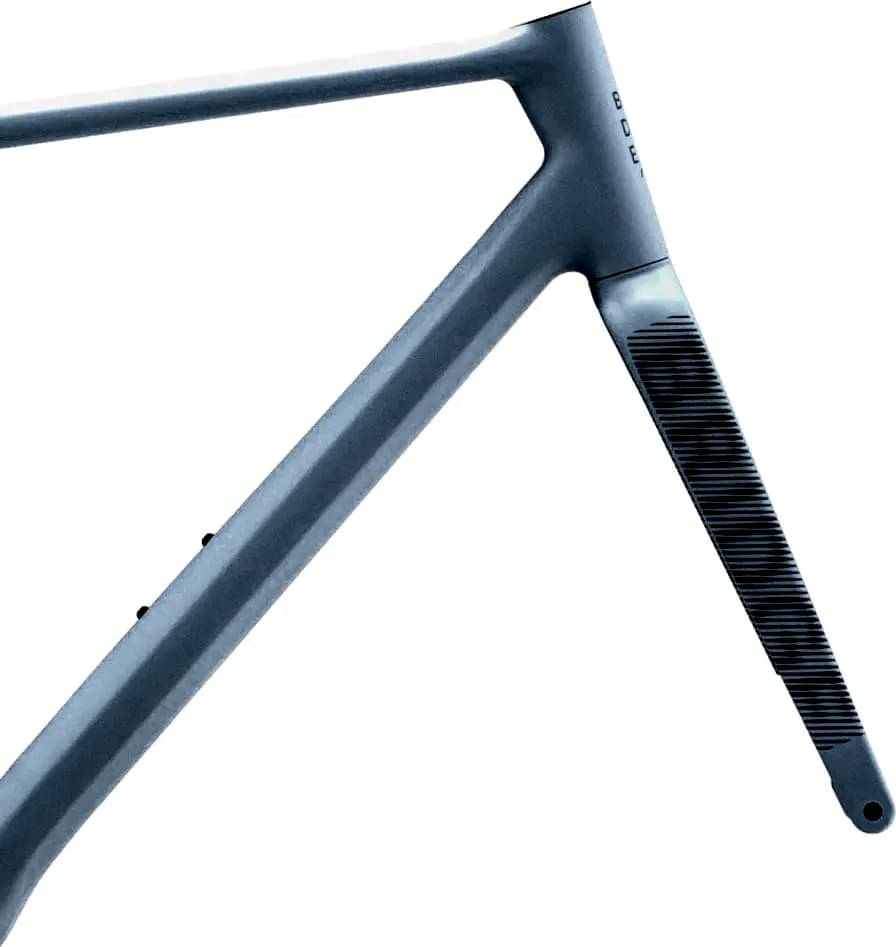

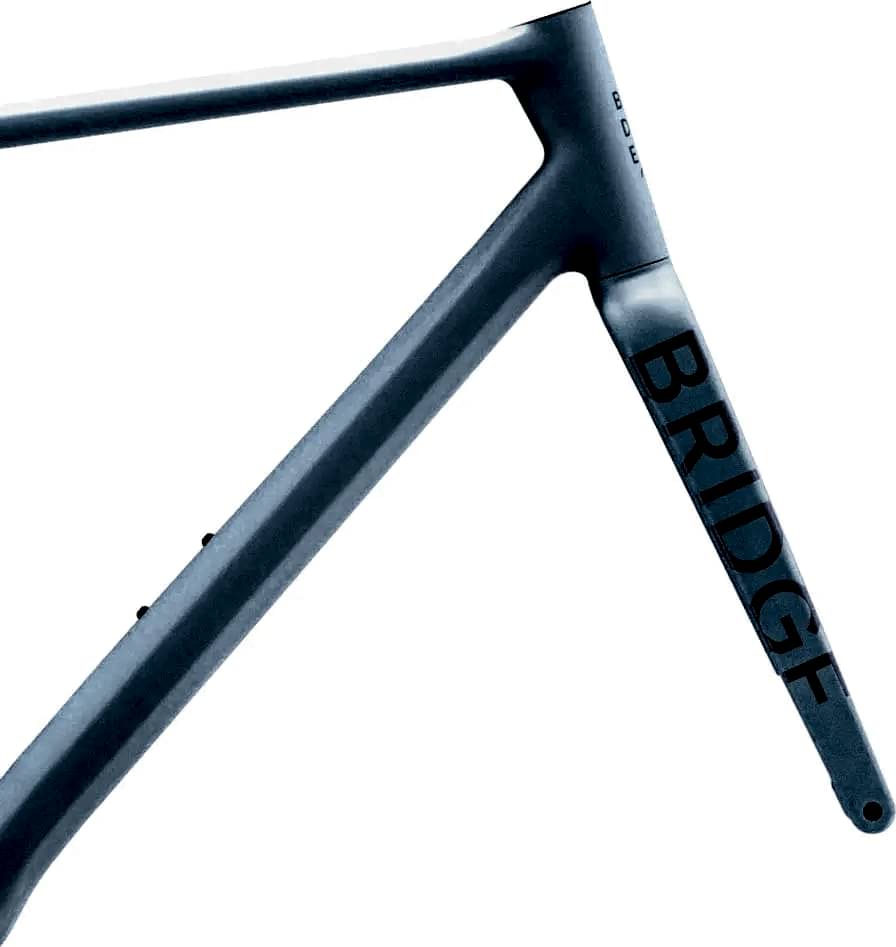

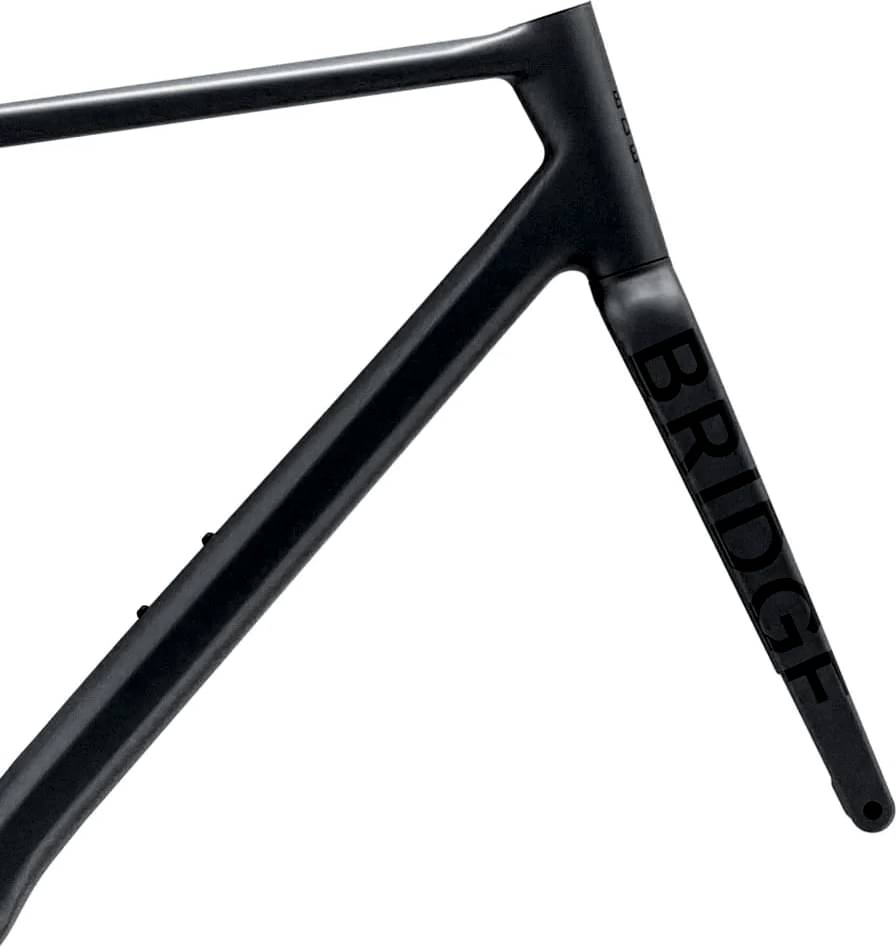

Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Surveyor – Red AXS Gravel are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Surveyor – Red AXS Gravel has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
