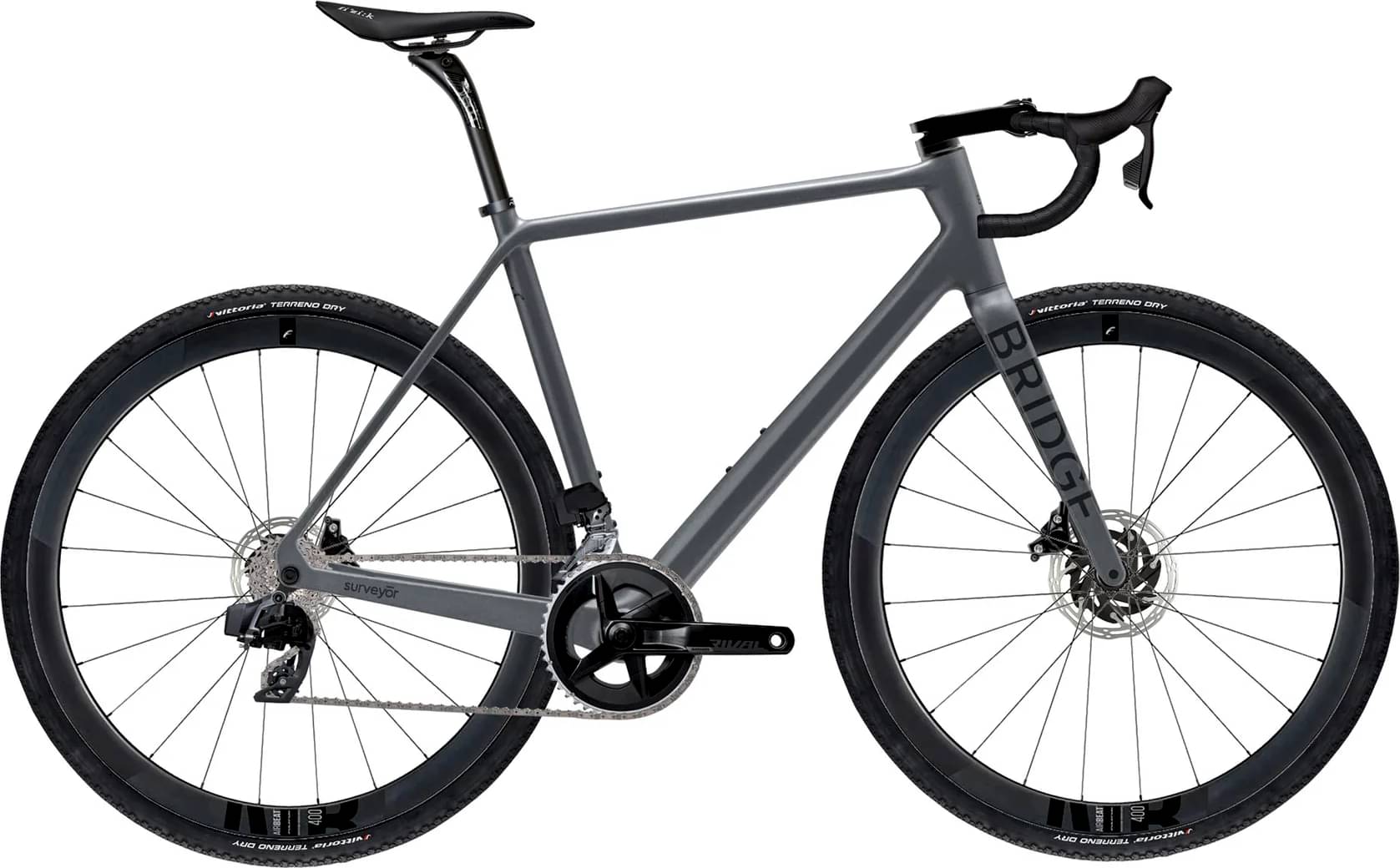

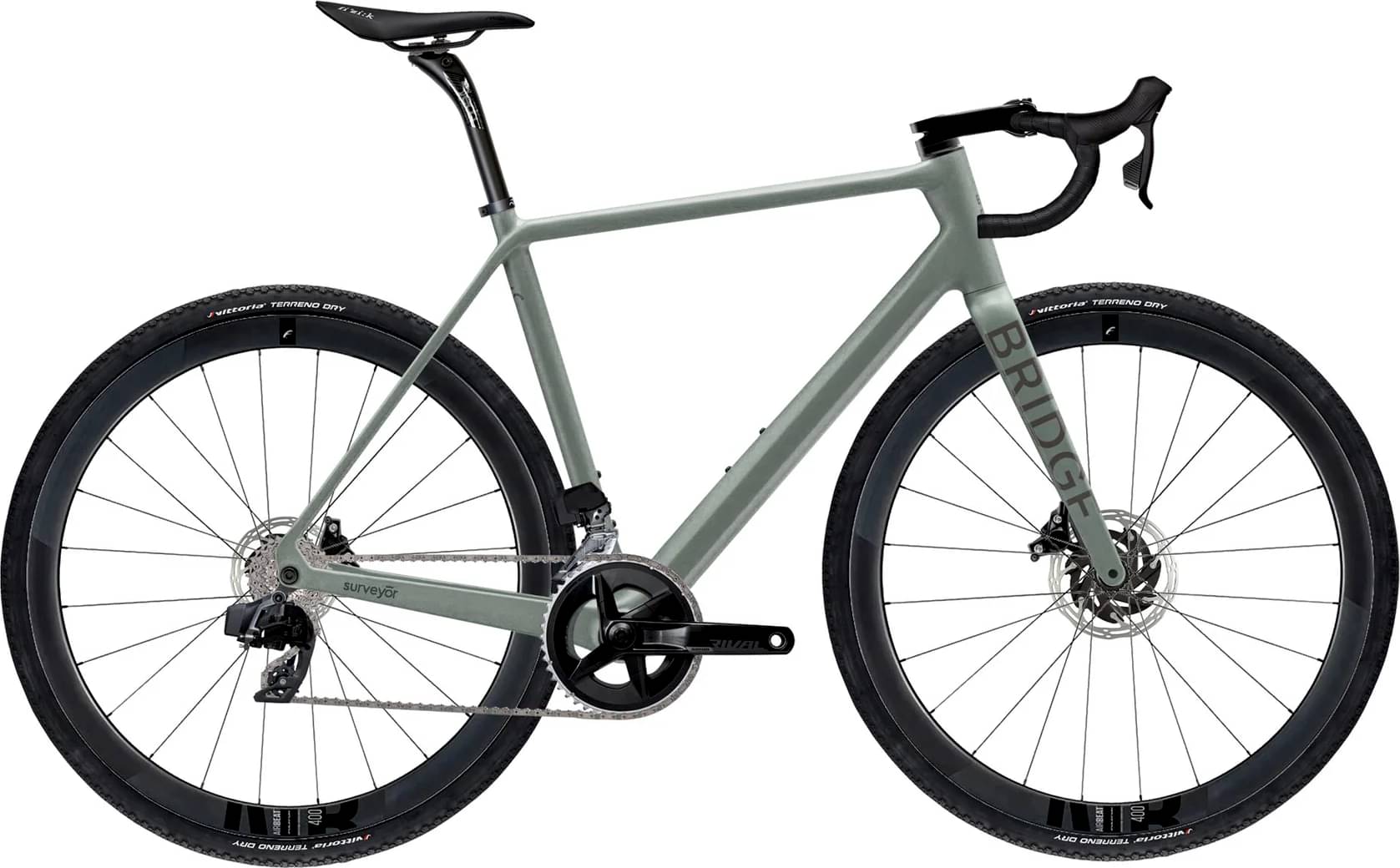

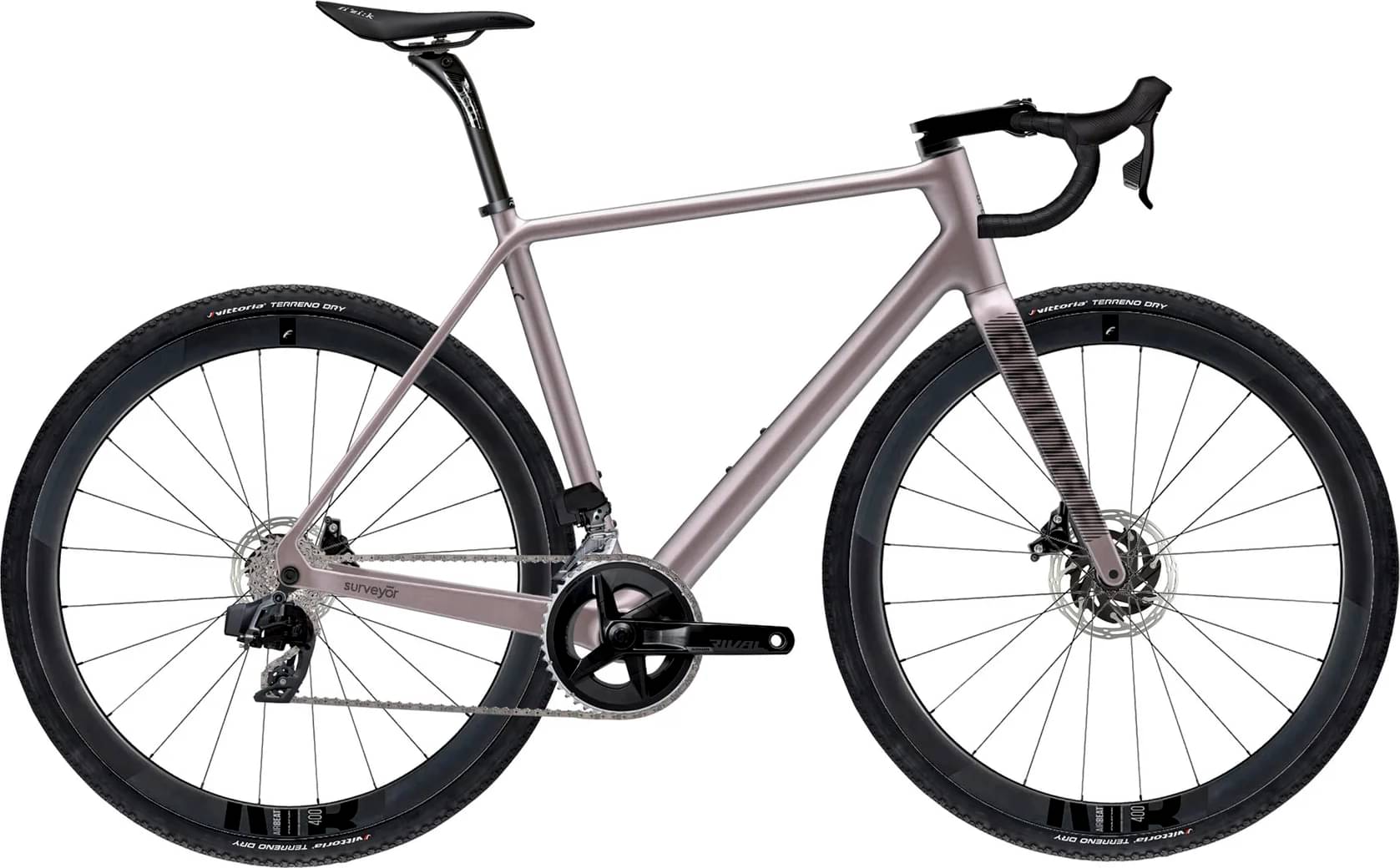

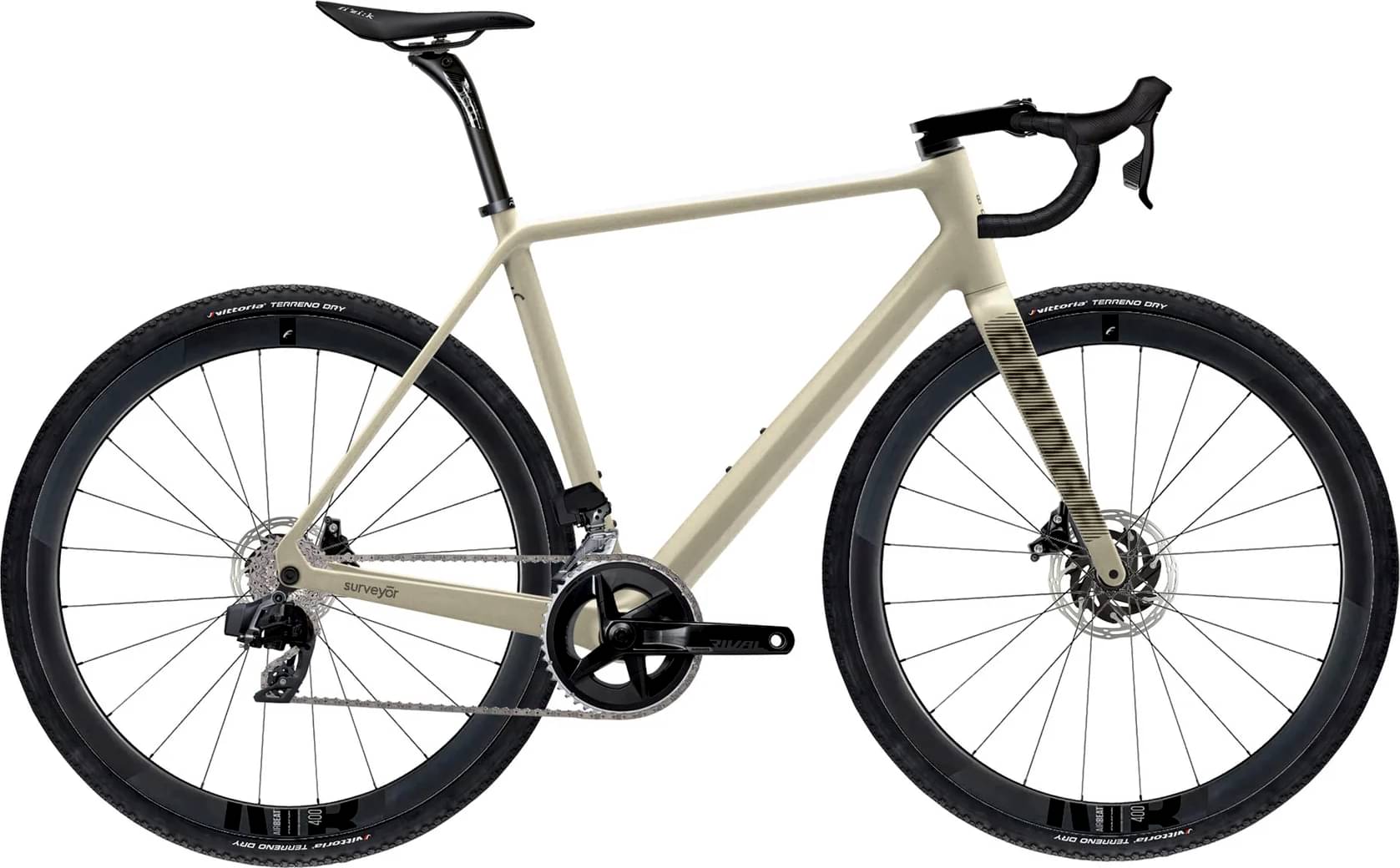

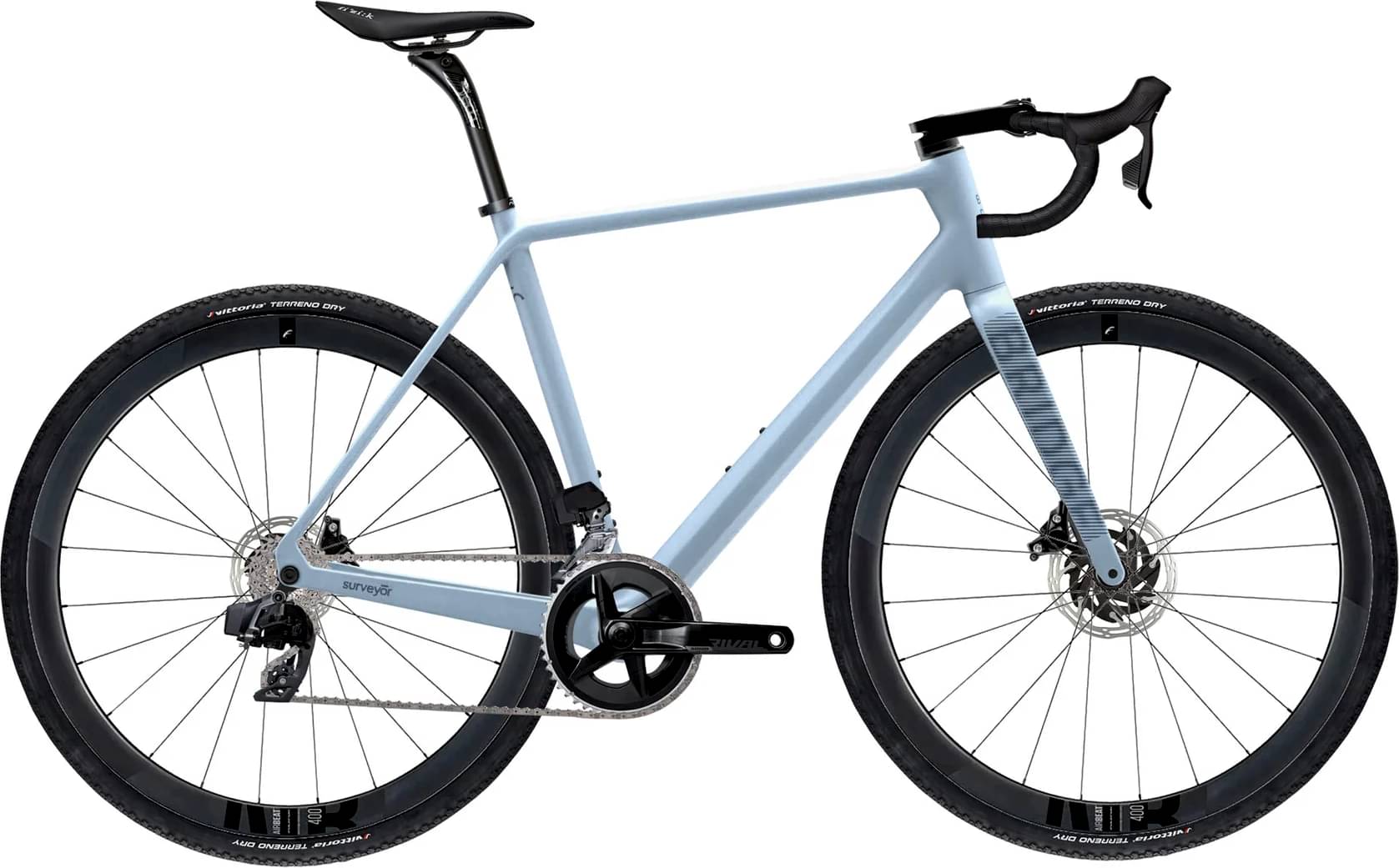

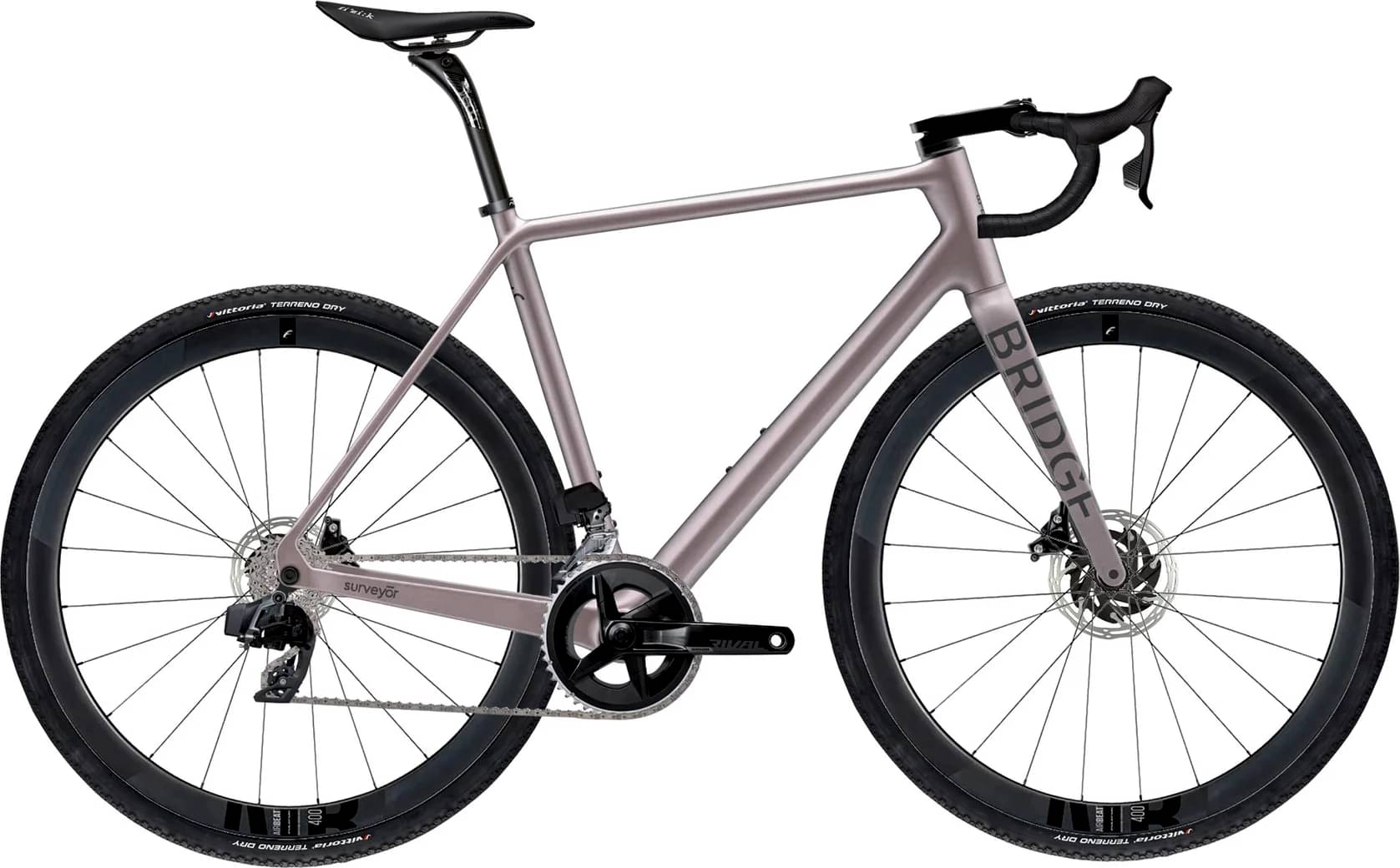

bridgebikeworks Bridge Bikeworks Surveyor – Rival AXS Gravel 2023
2023 Road
Estimate price |
6,076$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR
Cassette
SRAM Rival XPLR
Bottom Bracket
White Industries T47/86
Wheels
Rims
Fulcrum Airbeat 400 Carbon
Tires
Vittoria Terreno Dry
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Superbox
Handlebar
Deda Superzero Alloy
Seat
Saddle
Fizik Argo R5
Seatpost
Deda Superzero 25
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 585.7 mm | 600.2 mm | 598.7 mm | 611.9 mm | 625.12 mm |
| Rake | 53.1 mm | 53.1 mm | 45.9 mm | 45.9 mm | 45.9 mm |
| Trail | 65.5 mm | 63.9 mm | 63.3 mm | 63.3 mm | 60 mm |
| Stack | 501.4 mm | 530.4 mm | 559.4 mm | 587.4 mm | 616.4 mm |
| Reach | 367.4 mm | 374.4 mm | 382.4 mm | 389.4 mm | 396.4 mm |
| Top Tube Length | 504.1 mm | 518.8 mm | 539.9 mm | 560.3 mm | 575.6 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 459.4 mm | 487 mm | 532.2 mm | 559.8 mm | 587.9 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 90.1 mm | 119.7 mm | 145.3 mm | 173.6 mm | 203 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 980 mm | 995 mm | 994 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Surveyor – Rival AXS Gravel is a Bridgebikeworks Surveyor model. Bridge Bikeworks released 12 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bridge Bikeworks Surveyor – Rival AXS Gravel 2023 is the cheapest bike model and costs 6146$. Bridge Bikeworks Surveyor – Red AXS Gravel 2023 is the most expensive one and costs 10846$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Bridge Bikeworks Surveyor – Rival AXS Gravel price was 6146$. Comparing this to the average Gravel bike price, we see that the price is 149.63% higher.
Surveyor – Rival AXS Gravel components

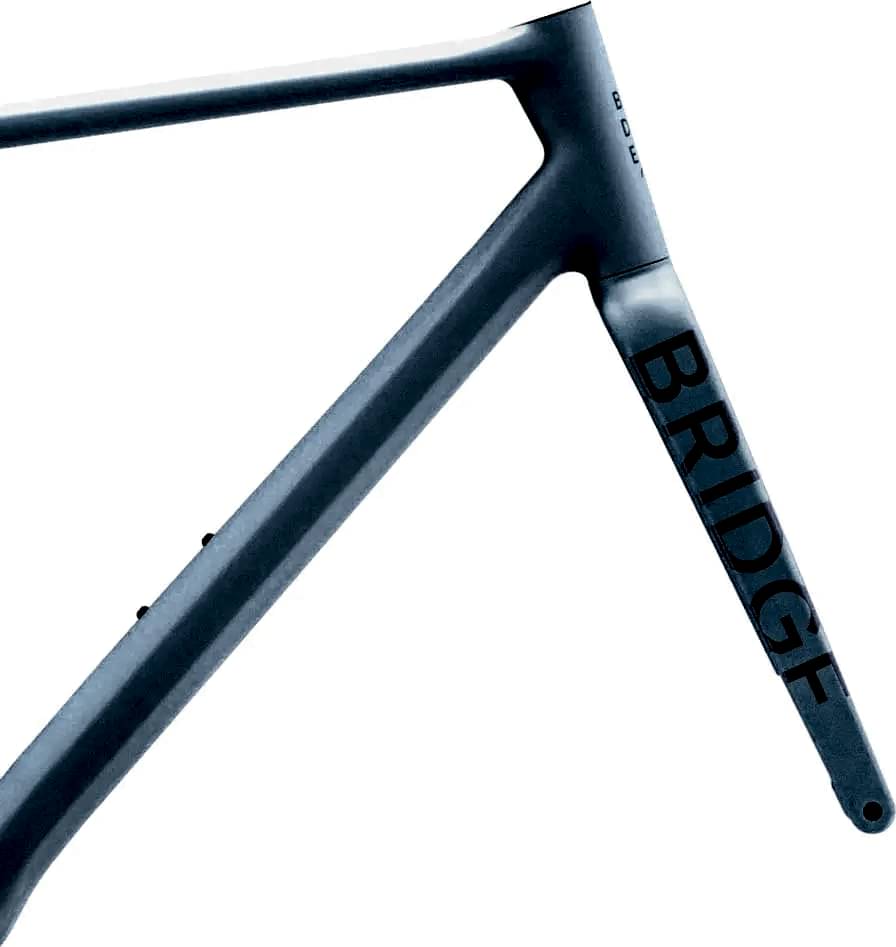

Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Surveyor – Rival AXS Gravel 2023 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Surveyor – Rival AXS Gravel has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
