Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Catalyst, SmartForm C3 Alloy, 1-1/8” head tube, rack and fender mounts, 27.5"
Suspension Fork
SR Suntour XCT, 100mm, Hydraulic Lockout, Coil
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Shimano Tourney, 31.8 clamp
Shift Levers
Shimano Easy Fire EF505, 3x7
Cassette
Sunrace, 11-34, 7-speed
Crank
Prowheel, 42/34/24
Bottom Bracket
Sealed Bearing BSA
Chain
KMC, 7-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Formula QR front, QR rear w/ HG driver
Rear Hub
Formula QR front, QR rear w/ HG driver
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
Freedom Transition Sport 27.5 x 2.25"
Brakes
Brakes
Shimano MT200 hydro disc, 160/160mm RT26 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale C4 Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Handlebar
Cannondale C4 Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale Dual-Density
Headset
Semi-integrated, threadless, 1-1/8"
Seat
Saddle
Cannondale Stage 2
Seatpost
Cannondale Alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.41 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 608 mm | 658 mm | 680 mm | 698 mm | 722 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 82 mm | 82 mm | 81 mm | 81 mm |
| Stack | 580 mm | 592 mm | 606 mm | 627 mm | 650 |
| Reach | 360 mm | 412 mm | 428 mm | 445 mm | 461 mm |
| Top Tube Length | 538 mm | 593 mm | 608 mm | 631 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 135 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1037 mm | 1087 mm | 1109 mm | 1127 mm | 1152 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 674 mm | 708 mm | 747 mm | 789 mm | 831 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

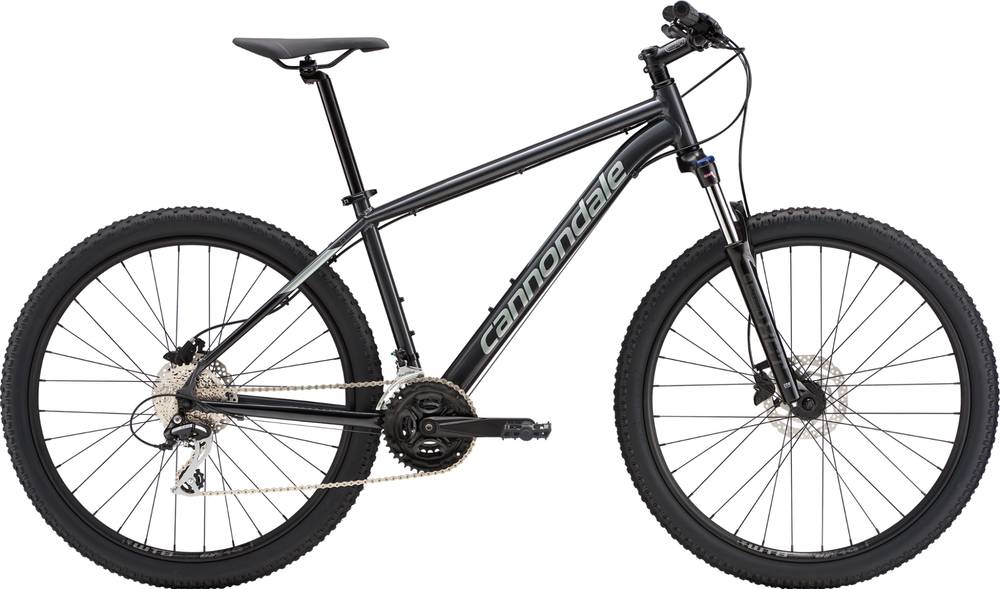

Catalyst 1 is a Cannondale Catalyst model. Cannondale released 12 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Cannondale Catalyst 3 2019 has a starting price of 460$. Cannondale Catalyst 1 2019 on the other hand is the most expensive at 630$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Cannondale released this model in 2019, its price was 630$. Doing a quick comparison, we notice that Catalyst 1 price is 202.38% smaller than the average cost of a Crosscountry bike.
Catalyst 1 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Catalyst 1 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Catalyst 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Cannondale Catalyst 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
