Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Catalyst, SmartForm C3 Alloy, 1-1/8” head tube, rack and fender mounts, 27.5"
Suspension Fork
SR Suntour M3030, 75mm, Coil
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney, 31.8 clamp
Shift Levers
Shimano Easy Fire EF41, 3x7
Cassette
Sunrace, 14-34, 7-speed, FW
Crank
Prowheel, 42/34/24
Bottom Bracket
Sealed Bearing BSA
Chain
KMC Z51, 7-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Formula QR front and rear
Rear Hub
Formula QR front and rear
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
Freedom Transition Sport 27.5 x 2.25"
Brakes
Brakes
Tektro cable actuated disc, 160/160mm
Brake Levers
Shimano EF41
Cockpit
Stem
Cannondale Alloy, 1-1/8", 28.6, 8°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
Grips
Cannondale Dual-Density
Headset
Semi-integrated, threadless, 1-1/8"
Seat
Saddle
Cannondale Stage 2
Seatpost
Cannondale Alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.41 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 608 mm | 658 mm | 680 mm | 698 mm | 722 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 82 mm | 82 mm | 81 mm | 81 mm |
| Stack | 580 mm | 592 mm | 606 mm | 627 mm | 650 |
| Reach | 360 mm | 412 mm | 428 mm | 445 mm | 461 mm |
| Top Tube Length | 538 mm | 593 mm | 608 mm | 631 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 135 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1037 mm | 1087 mm | 1109 mm | 1127 mm | 1152 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 674 mm | 708 mm | 747 mm | 789 mm | 831 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

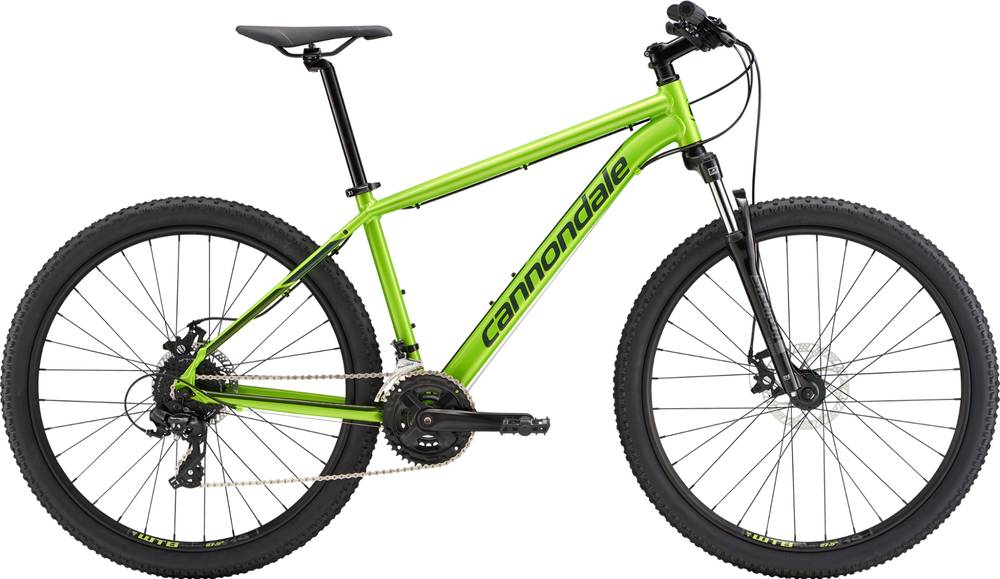

Catalyst 3 is a Cannondale Catalyst model. Cannondale launched 12 bikes of this model so far. Take a sneak peek at all Cannondale Catalyst bikes models from 2019, by clicking here.
Model range prices
Cannondale Catalyst 3 2019 is the most economical model, with a starting price of 460$. Cannondale Catalyst 1 2019 on the other hand costs 630$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Cannondale released this model in 2019, its price was 460$. In conclusion, this bike price is 314.13% lower than the price of the average Crosscountry bike.
Catalyst 3 components
Fork
The Catalyst 3 comes factory-installed with the SunTour fork. This has a travel range of 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Catalyst 3 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Catalyst 3 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Catalyst 3 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
