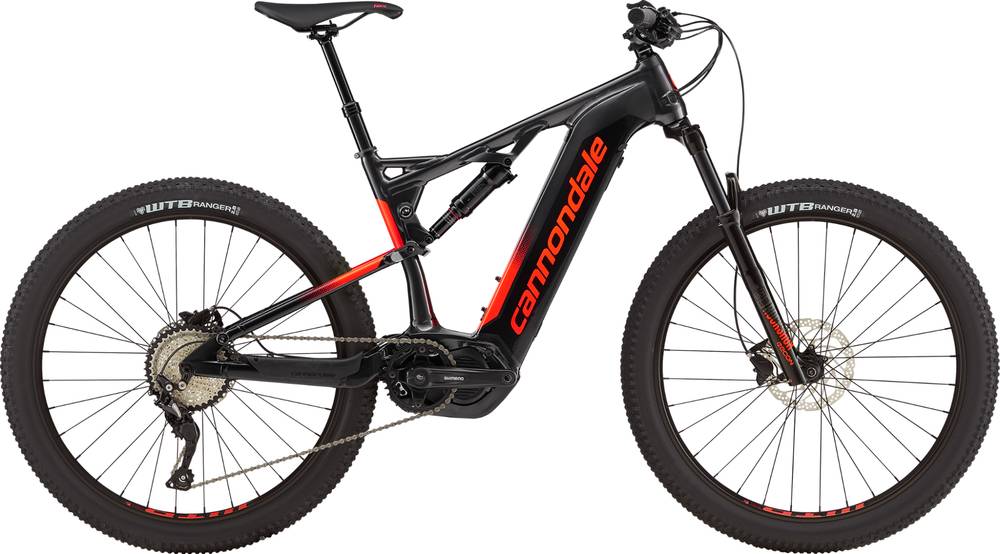

Cannondale Cujo Neo 130 4 SMU 2019
2019 E-bike
Estimate price |
4,200$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS BT-E8020, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALL-NEW Cujo NEO 130, SmartForm C2 Alloy, 130mm travel, integrated battery, tapered headtube, 148x12mm thru-axle, alloy skid plate
Suspension Fork
RockShox Recon RL, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe R, 130mm, DebonAir
Drivetrain
Rear Derailleur
Shimano Deore GS
Shift Levers
Shimano Deore, 10-speed
Cassette
Shimano HG500, 11-42, 10-speed
Crank
Shimano FC-E8000, 165mm, X-Sync, 34t
Chain
Shimano HG54, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-811 15x110 front, Shimano Deore 12x148 rear
Rear Hub
Formula CL-811 15x110 front, Shimano Deore 12x148 rear
Rims
WTB STX i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound, tubeless ready
Brakes
Brakes
Shimano MT200 hydro disc, 180/180mm RT30 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L/XL)
Motor & Battery
Motor
Shimano STEPS BT-E8020, 504Wh
Battery
Shimano STEPS BT-E8020, 504Wh
Remote
Shimano STEPS SC-E8000
Charger
Shimano STEPS EC-E6000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.353 mm | 1.278 mm | 1.263 mm |
| Front Center | 440 mm | 450 mm | 470 mm | 480 mm |
| Rake | 10 mm | 10 mm | 10 mm | 10 mm |
| Stack | 235 mm | 235 mm | 235 mm | 245 mm |
| Seat Tube Length | 150 mm | 170 mm | 180 mm | 200 mm |
| Head Tube Length | 500 mm | 500 mm | 530 mm | 560 mm |
| Wheelbase | 445 mm | 455 mm | 475 mm | 485 mm |
| Standover Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cujo Neo 130 4 SMU is part of the Cannondale E Cujo model. Cannondale launched 9 e-bikes of this model so far. You can easily view all of the Cannondale E Cujo e-bikes models from 2019, here.
Model range prices
Cannondale Cujo Neo 1 2019 is the most economical model, with a starting price of 3900$. Cannondale Cujo NEO 130 2 2019 on the other hand costs 5800$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Cannondale Cujo Neo 130 4 SMU price was 4200$. Comparing this to the average Trail e-bike price, we see that the price is 24.81% more expensive.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe R model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Cujo Neo 130 4 SMU are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Cujo Neo 130 4 SMU is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Cannondale Cujo Neo 130 4 SMU comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
