Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select+
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
172cm - 185cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removeable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
RockShox Pike Select + RC, 140mm, DebonAir, 15x110mm tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Ultimate RT, DebonAir
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 11-50, 12-speed
Crank
Bosch Gen4 w/ custom Ai offset, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM NX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
Formula DC-511, 15x100mm
Rear Hub
SRAM 746, 12x148mm
Rims
Stan's NoTubes Flow MK3, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Maxxis Rekon, 29x2.6", 3C compound, EXO, tubeless ready
Brakes
Brakes
Magura MT7 Trail hydraulic disc, (F) 4-piston / (R) 2-piston, 220/203mm Spider rotors
Brake Levers
Magura MT7 Trail HC hydraulic disc
Cockpit
Stem
Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 1 Riser, Carbon, 15mm rise, 9° sweep, 4° rise, 780mm
Grips
Fabric Funguy Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Seatpost
Cannondale DownLow Dropper Post, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A

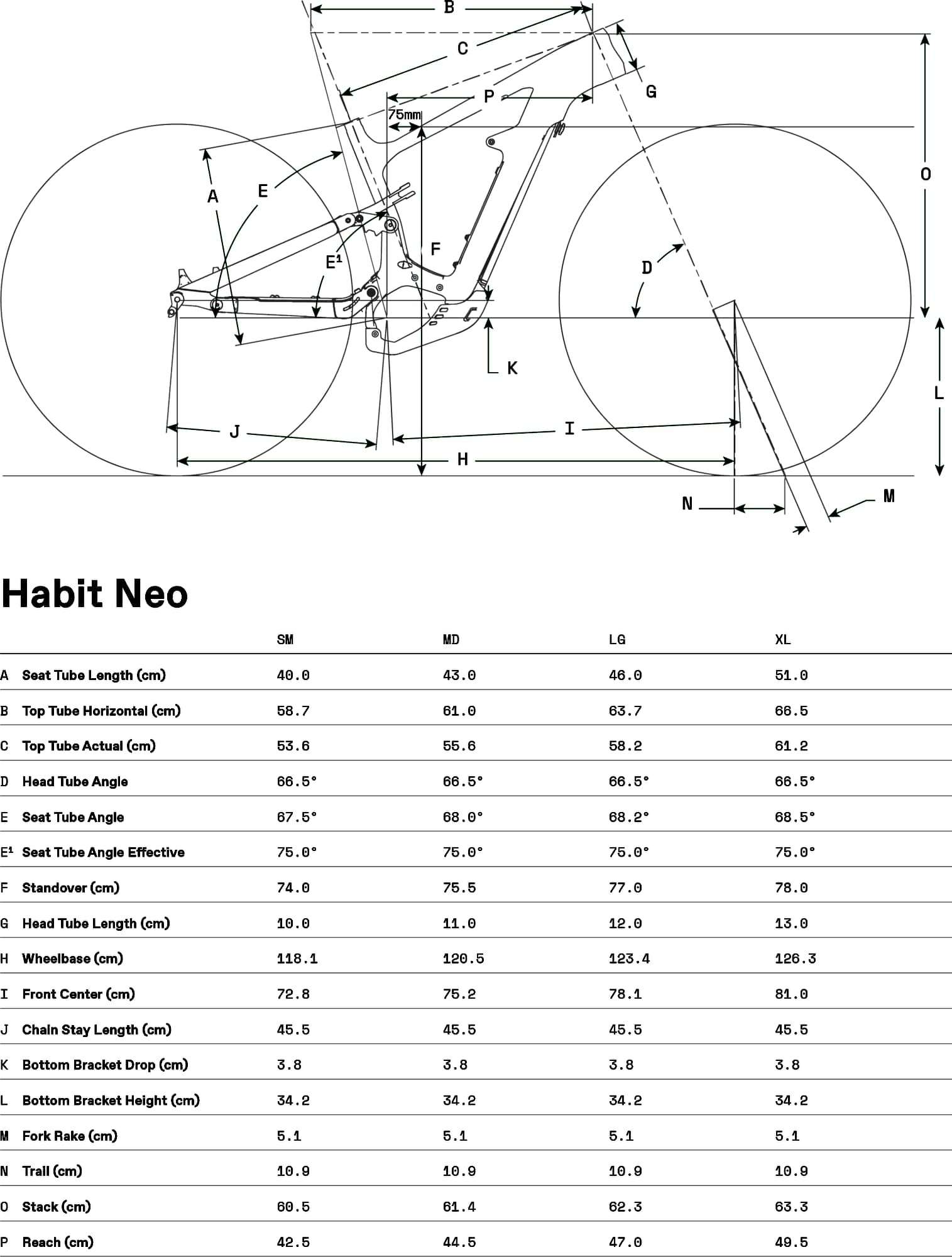

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.38 mm | 1.326 mm | 1.279 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 752 mm | 781 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 605 mm | 614 mm | 623 mm | 633 mm |
| Reach | 425 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 587 mm | 610 mm | 637 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1181 mm | 1205 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 536 mm | 556 mm | 582 mm | 612 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 185 cm | 195 cm |
About this model
Habit Neo 1 belongs to the Cannondale E Habit model. There are 19 e-bikes that carry this model name. You can easily view all of the Cannondale E Habit e-bikes models from 2020, here.
Model range prices
The most economical model, the Cannondale Habit Neo 4 2020 has a starting price of 5500$. Cannondale Habit Neo 2 2020 on the other hand is the most expensive at 7000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Habit Neo 1 comes factory-installed with the RockShox Pike Select+ fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Cannondale Habit Neo 1 e-bike has the RockShox Deluxe Ultimate RT model installed, and has a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Cannondale Habit Neo 1 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Habit Neo 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Habit Neo 1. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
