Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
172cm - 185cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, alloy skid plate, Ai offset drivetrain
Suspension Fork
RockShox Recon SIlver RL, 140mm, DebonAir, 15x110, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select R, DebonAir
Drivetrain
Rear Derailleur
Shimano Deore M6100
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano Deore, 12-speed
Pedals
Not included
Wheels
Front Hub
Formula DC-511, 15x110mm
Rear Hub
Shimano FH-MT410-B, 12x148mm
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Dissector, 29x2.6", EXO casing, tubeless ready / (R) Maxxis Rekon, 29x2.6", EXO casing tubeless ready
Brakes
Brakes
TRP Slate G4 4 Piston hydraulic disc, 200/200mm rotors
Brake Levers
TRP hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, Drop: 125mm (SM), 130mm (MD, LG, XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

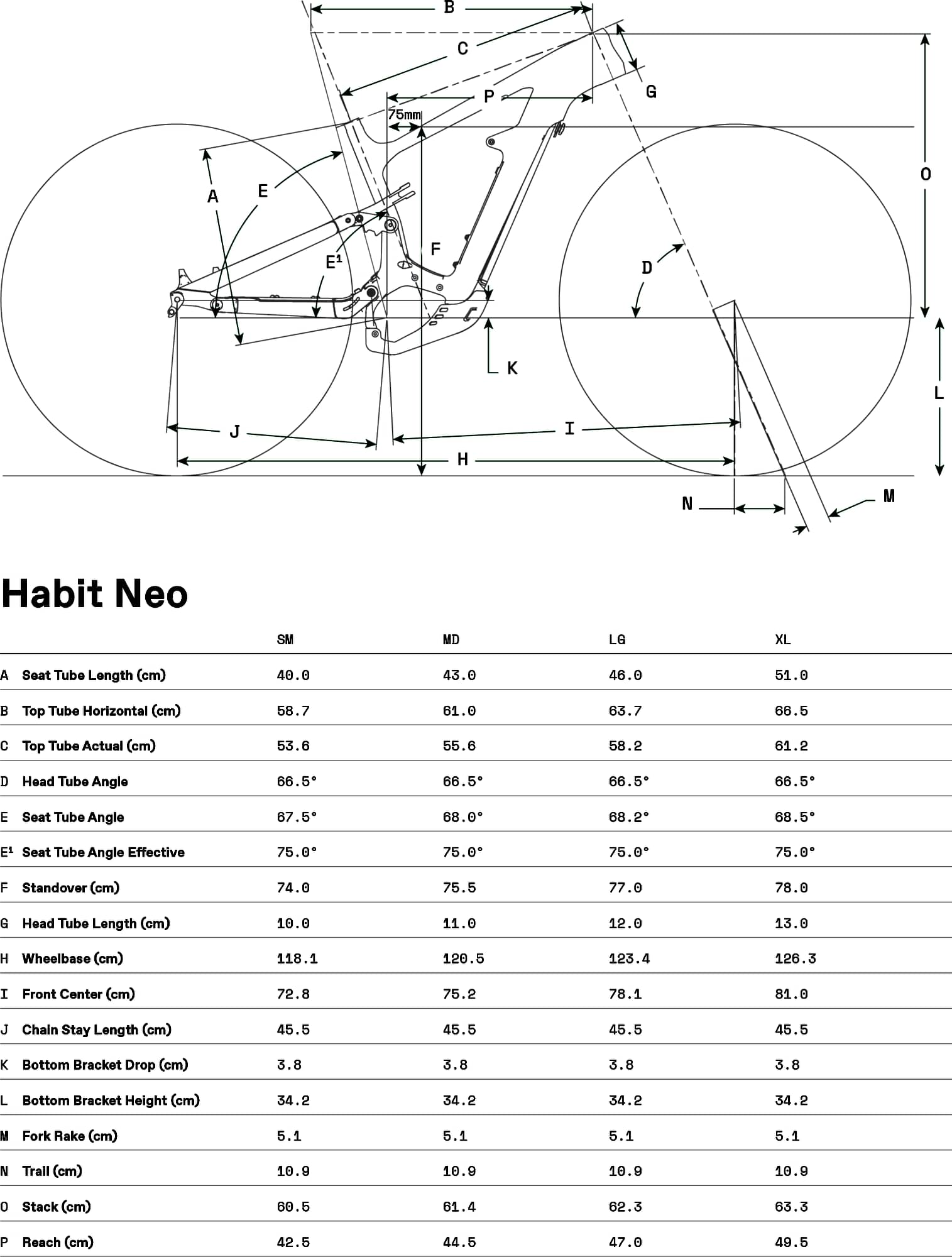

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.38 mm | 1.326 mm | 1.279 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 752 mm | 781 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 605 mm | 614 mm | 623 mm | 633 mm |
| Reach | 425 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 587 mm | 610 mm | 637 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1181 mm | 1205 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 536 mm | 556 mm | 582 mm | 612 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 185 cm | 195 cm |
About this model

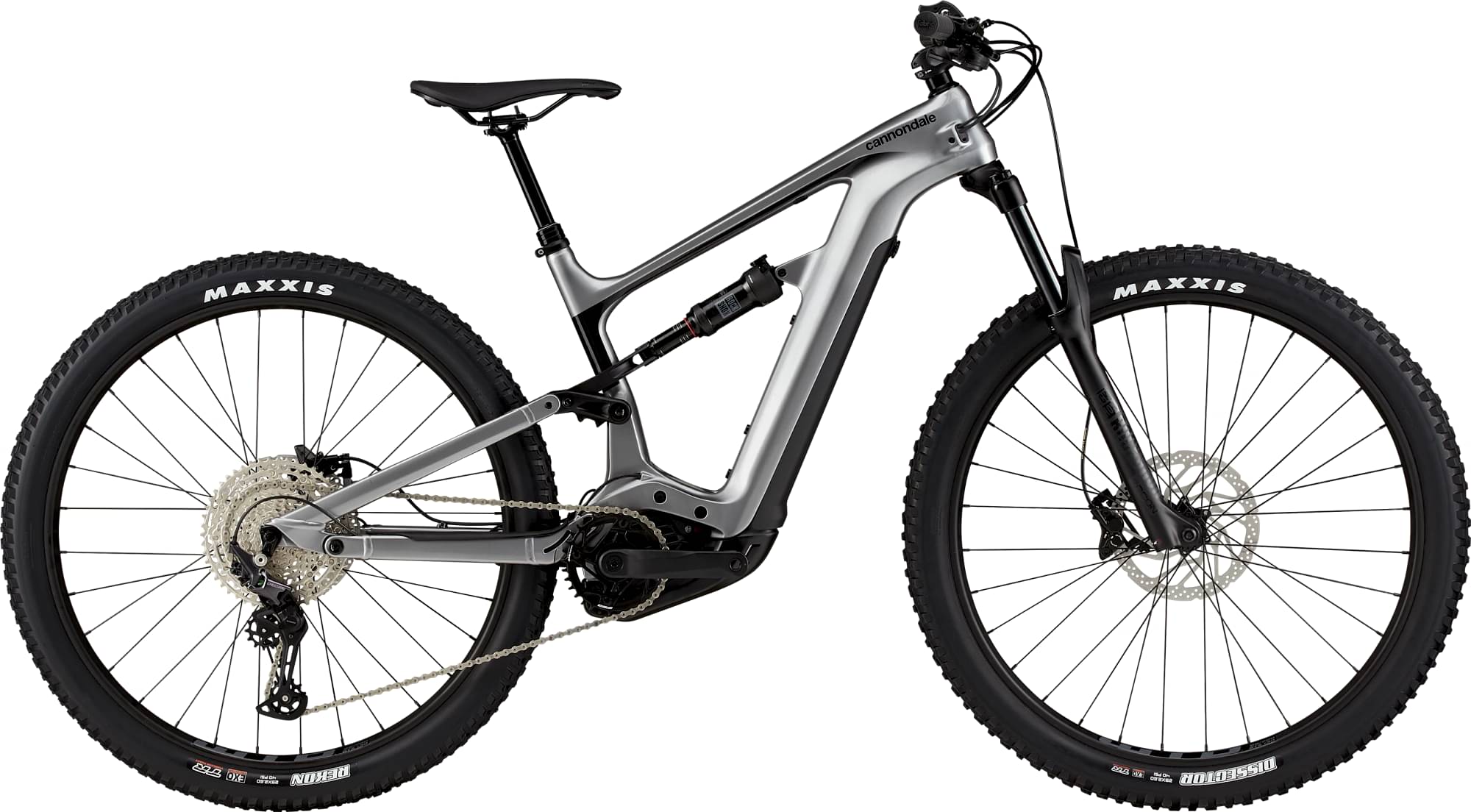

Habit Neo 4 is part of the Cannondale E Habit model. Cannondale released 19 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Cannondale Habit Neo 3 2023 is the most affordable e-bike of this model and has a price of 7116$. On the other hand, Cannondale Habit Neo 1 2023, is the most expensive and costs 9123$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Habit Neo 4 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Habit Neo 4 has a rear shock with a travel of 130mm. The model RockShox Deluxe Select R is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Cannondale Habit Neo 4 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Habit Neo 4 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Cannondale Habit Neo 4 comes with a dropper post. Therefore, climbing or descending will be a breeze.
