Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 150mm -
Fork Suntour XCR
-
Groupset Deore, FSA -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS BT-E8035, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, Tapered Alloy Steerer
Rear Shock
X-Fusion 02 Pro RL, Rebound and Lockout
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano HG500, 11-42, 10-speed
Crank
FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T
Chain
Shimano Deore, 10-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Breakout, 29x2.3", DNA Compound, Comp Level, 30TPI
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
Motor & Battery
Motor
Shimano STEPS DU-E8000 250W
Battery
Shimano STEPS BT-E8035, 504Wh
Charger
Shimano Battery Charger 2A
Fit data

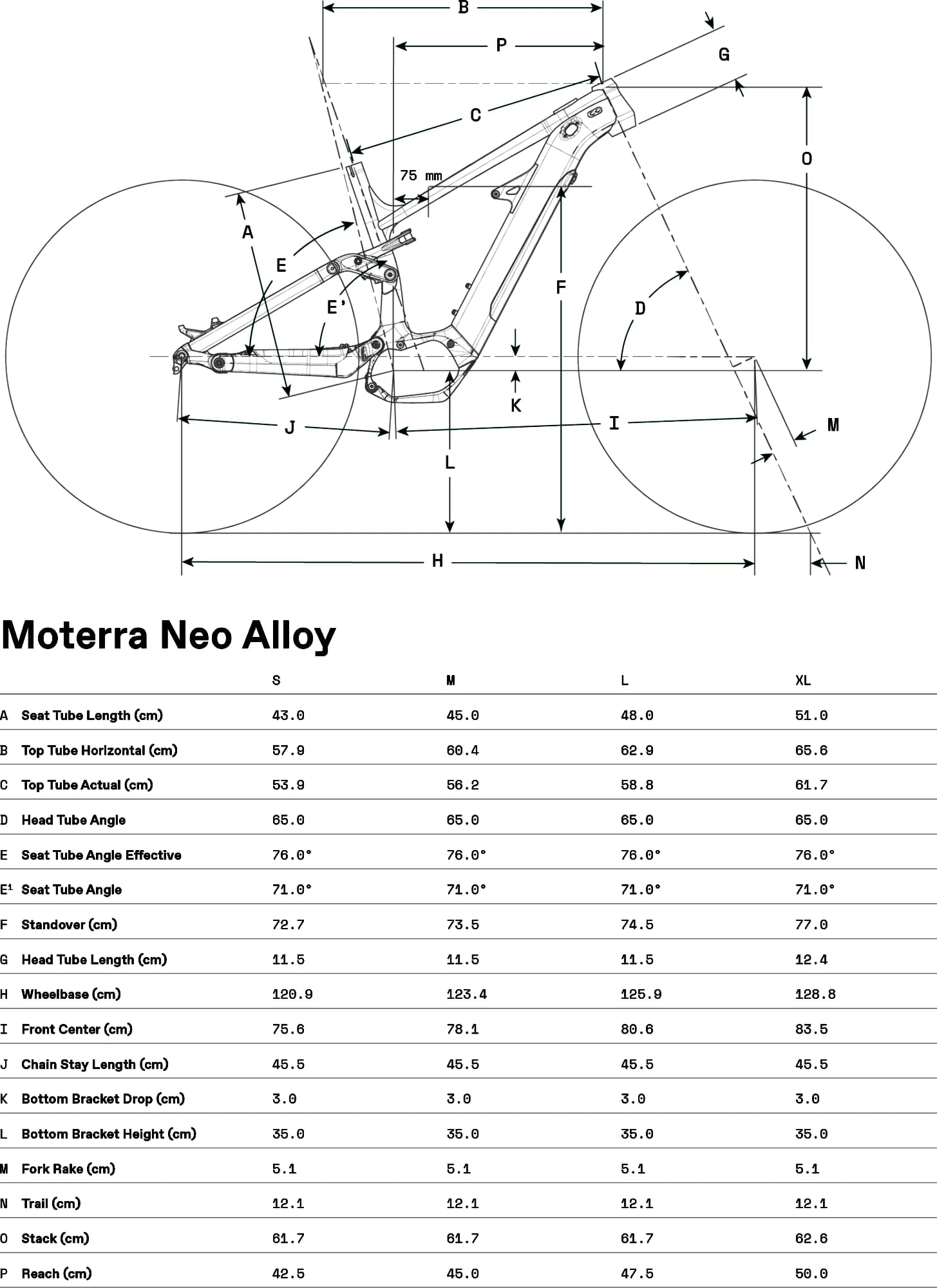

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |

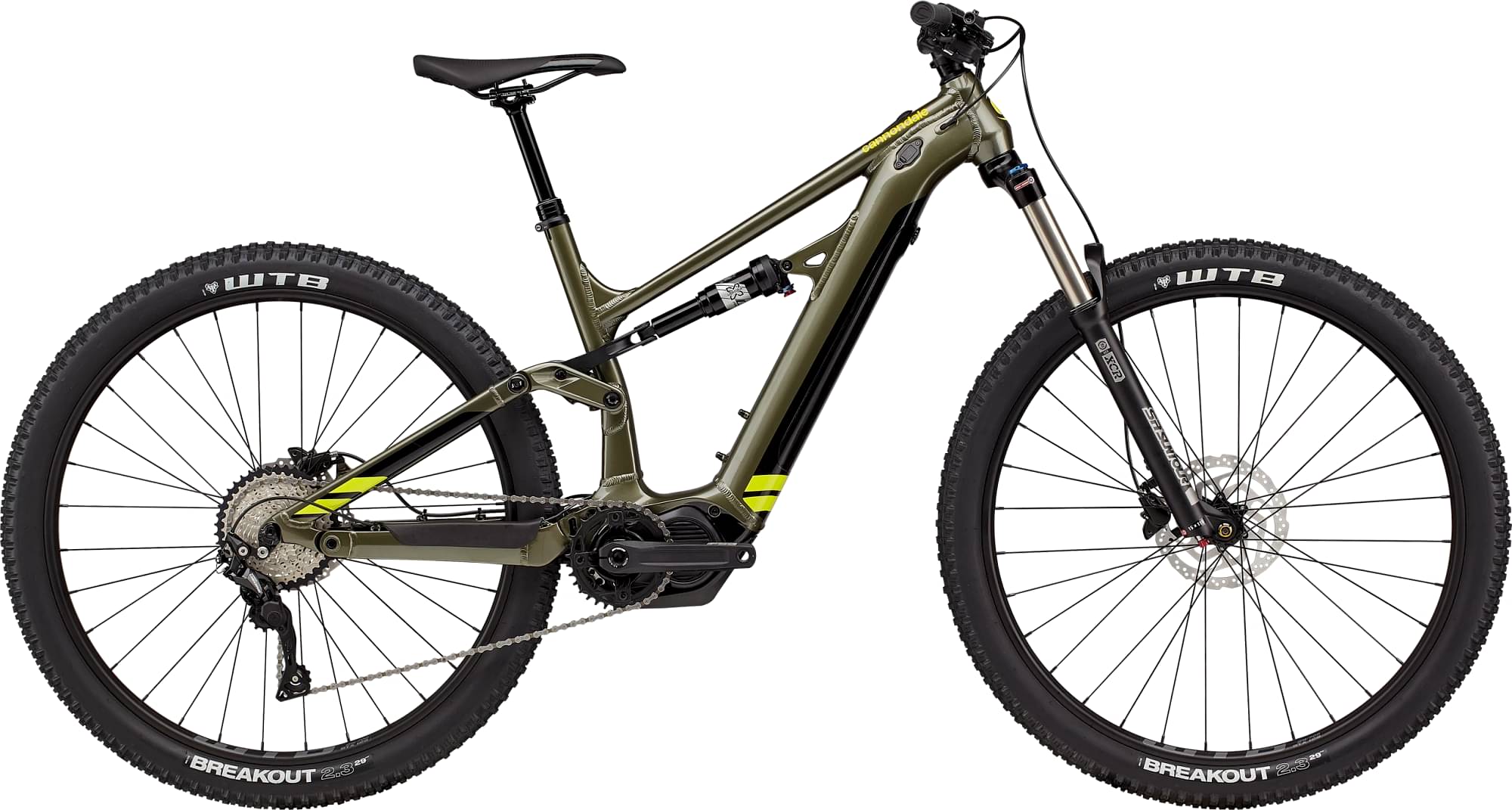

About this model
Moterra Neo 5 + is a Cannondale E Moterra model. Cannondale launched 55 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cannondale Moterra Neo 5 2023 is the cheapest e-bike model and costs 4550$. Cannondale Moterra Neo Carbon SE 2023 is the most expensive one and costs 8758$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Moterra Neo 5 + components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Rear Shock
The shock that’s installed on this e-bike is X-Fusion 02 Pro RL, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Moterra Neo 5 + model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Moterra Neo 5 + e-bike has 4 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
