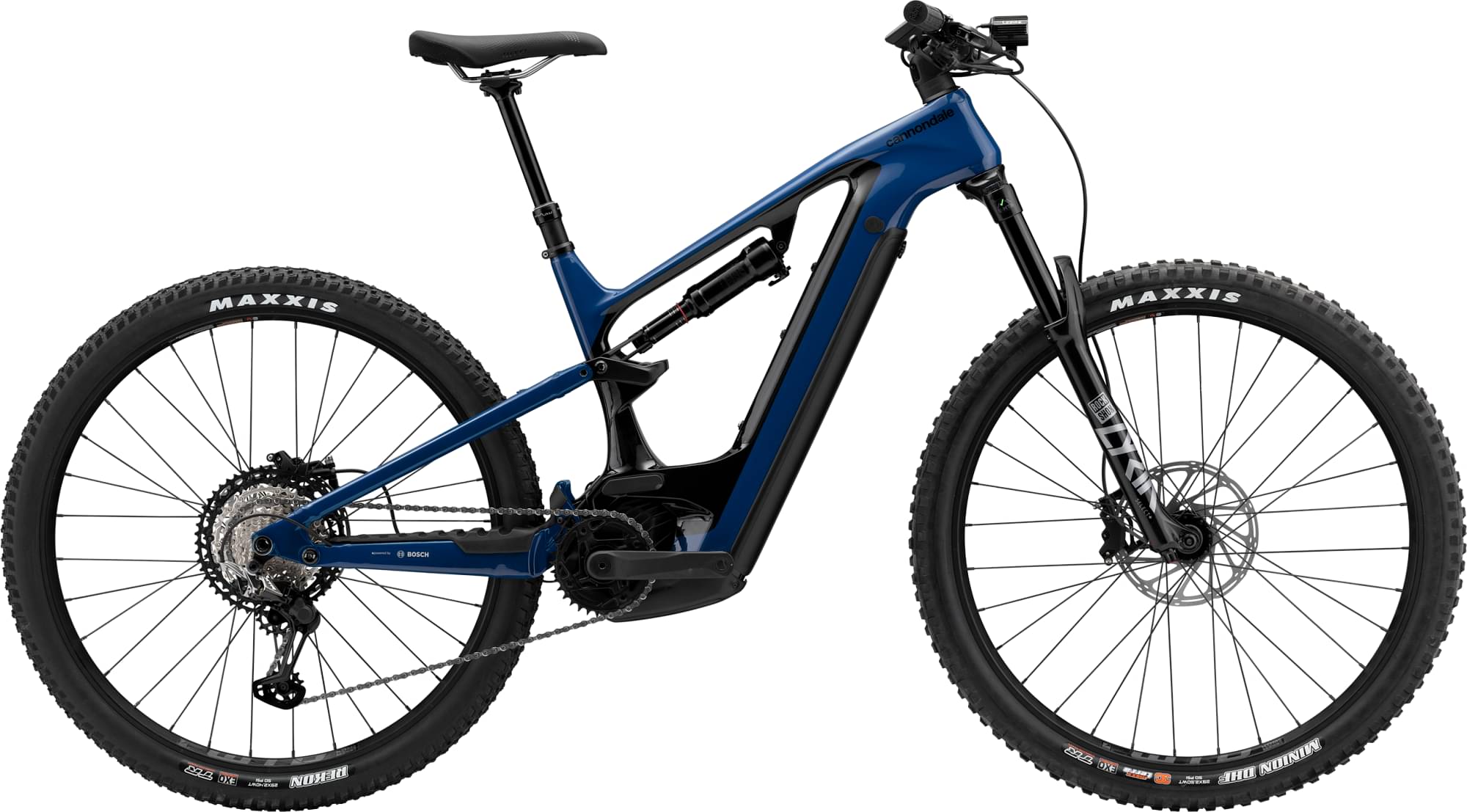

Cannondale Moterra Neo Carbon 1 2022
2022 E-bike
Estimate price |
9,748$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset XTR, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Suspension Fork
RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XTR
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Bottom Bracket
Bosch, press-fit
Chain
Shimano XT, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Rear Hub
(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Brakes
Brakes
Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
Brake Levers
Shimano XT hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Grips
Fabric FunGuy
Headset
Acros integrated sealed bearing, tapered
Seat
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm L, XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube 750Wh
Remote
Bosch Kiox 300 w/ LED remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
Model Overview
Moterra Neo Carbon 1 completes the Cannondale E Moterra model. 55 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Moterra Neo 5 2022 has a starting price of 4458$. Cannondale Moterra Neo Carbon LT 1 2022 on the other hand is the most expensive at 9555$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 9024$. In conclusion, this e-bike price is 88.59% higher than the price of the average Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Moterra Neo Carbon 1 components
Fork
This e-bike has the RockShox Lyrik Select fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select+, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Moterra Neo Carbon 1 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Moterra Neo Carbon 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Cannondale Moterra Neo Carbon 1 e-bike has 4 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Cannondale model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
