Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
RockShox 35 Gold RL, 160mm, DebonAir, 15x110, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select R, DebonAir
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM SX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
Formula, 15x110mm
Rear Hub
Formula 12x148mm
Rims
WTB ST i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF, 27.5/29x2.6", 3C compound, EXO+, tubeless ready / (R) Maxxis Minion DHII, 27.5/29x2.6", 3C compound, EXO+, tubeless ready
Brakes
Brakes
SRAM Guide RE hydraulic disc, 4-piston, 220/200mm Centerline rotors
Brake Levers
SRAM Guide RE hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

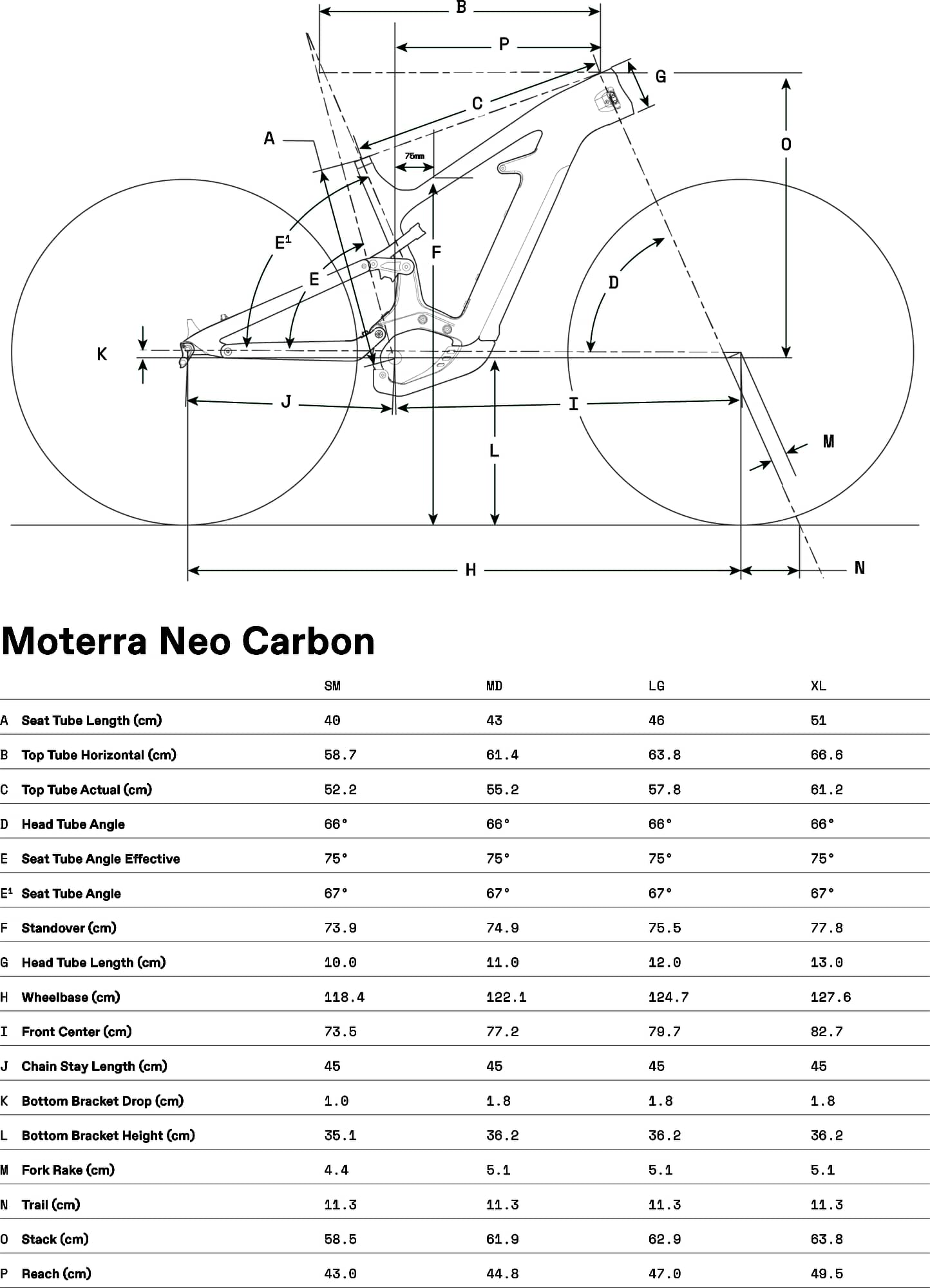

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
About this model
Moterra Neo Carbon 3 belongs to the Cannondale E Moterra model. 55 e-bikes variations carry this model name so far. Take a sneak peek at all Cannondale E Moterra e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Cannondale Moterra Neo 5 2023 has a starting price of 4550$. Cannondale Moterra Neo Carbon SE 2023 on the other hand is the most expensive at 8758$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Moterra Neo Carbon 3 components
Fork
Cannondale Moterra Neo Carbon 3 2023 e-bike is equipped with the RockShox 35 Gold RL fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select R, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Moterra Neo Carbon 3 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Moterra Neo Carbon 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Cannondale Moterra Neo Carbon 3 e-bike has 4 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Cannondale Moterra Neo Carbon 3 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
