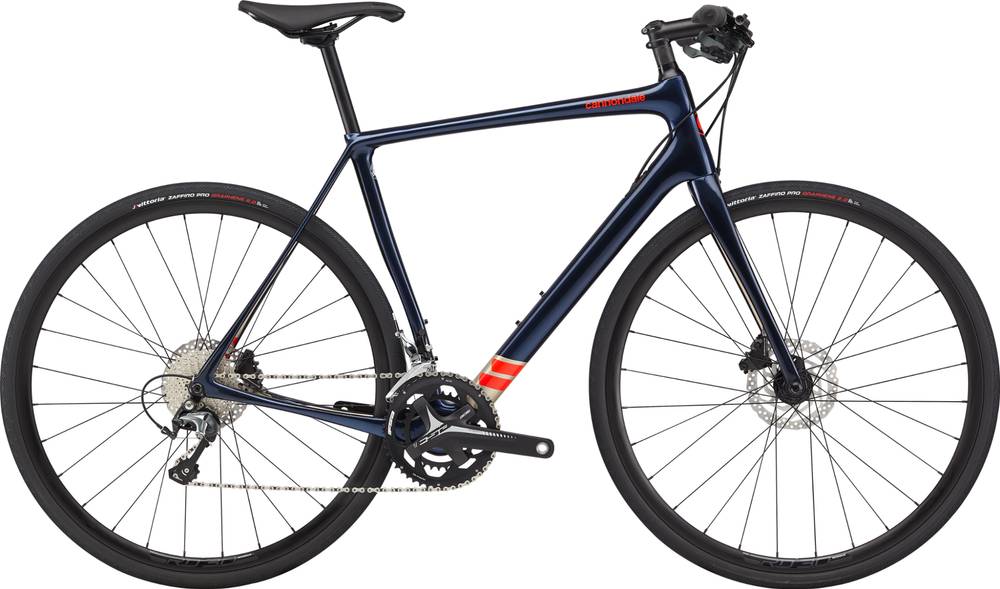

Cannondale Synapse Carbon Disc Tiagra Flatbar 2020
2020 Urban
Estimate price |
2,000$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle, internal cable routing, removable fender bridge, Di2 ready, SAVE, BB30a, Flat mount, 12mm thru axle, Internal cable routing, Removable fender bridge
Suspension Fork
BallisTec Carbon, SAVE, integrated crown race, 12x100mm thru-axle, internal routing, size-specific design - (S/M): 1-1/8" - 1-1/4" tapered steerer, 55mm rake, (L/XL): 1-1/8" - 1-3/8" tapered steerer, 45mm rake
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra FB, 2x10
Cassette
Sunrace, 11-32, 10-speed
Crank
FSA Omega alloy, 48/32
Bottom Bracket
Cannondale BB30
Chain
KMC X10, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula RX-142 12x142
Rims
RD 2.0, 28h
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro Pro Bright Black, 700 x 30c, reflective strip
Brakes
Brakes
Shimano UR300 hydro disc, 160/160mm RT26 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3 Flat, 6061 Alloy, 10° back, 3° rise
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Synapse, 1-1/4" lower bearing, 25mm top cap
Seat
Saddle
Fabric Scoop Radius Elite, cro-mo rails
Seatpost
Alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 272 mm | 272 mm | 275 mm |
| Front Center | 596 mm | 609 mm | 596 mm | 609 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 58 mm | 58 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm |
| Reach | 369 mm | 374 mm | 378 mm | 385 mm |
| Top Tube Length | 523 mm | 539 mm | 553 mm | 571 mm |
| Seat Tube Length | 443 mm | 480 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.7 ° | 71.7 ° | 73 ° | 73 ° |
| Head Tube Length | 137 mm | 161 mm | 173 mm | 197 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 986 mm | 1000 mm | 987 mm | 1001 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm |
| Standover Height | 734 mm | 765 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Synapse Carbon Disc Tiagra Flatbar belongs to the Cannondale Synapse model. There are 194 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Synapse Disc Sora 2020 is the most affordable bike of this model and has a price of 1150$. On the other hand, Cannondale Synapse Hi MOD Red eTap AXS 2020, is the most expensive and costs 10000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2000$. Comparing the average cost of a Fitness bike to this one, you will see that Synapse Carbon Disc Tiagra Flatbar price is 204.88% higher.
Average weight for Fitness bikes
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.3 kg (20.5 lbs), the Synapse Carbon Disc Tiagra Flatbar model is much lighter than average. In other words, this model is 20.86% lighter than the average Fitness bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Synapse Carbon Disc Tiagra Flatbar are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Synapse Carbon Disc Tiagra Flatbar has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Synapse Carbon Disc Tiagra Flatbar comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
